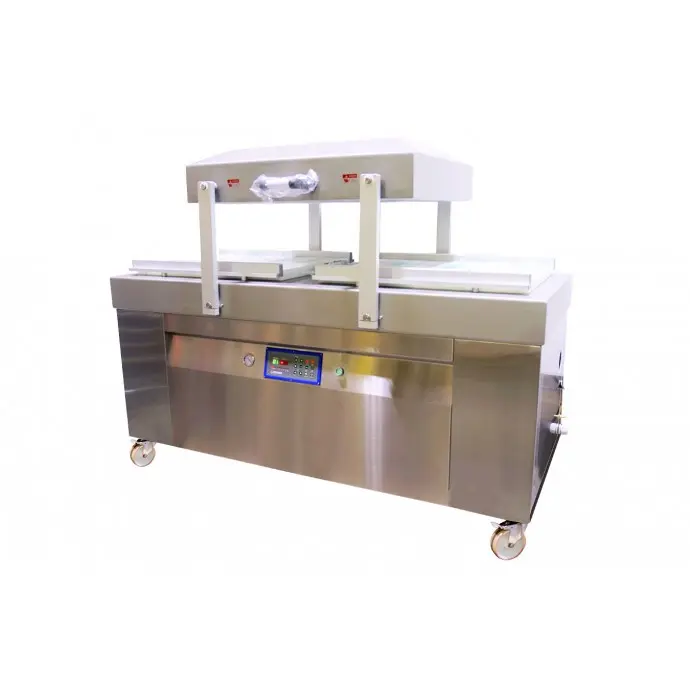

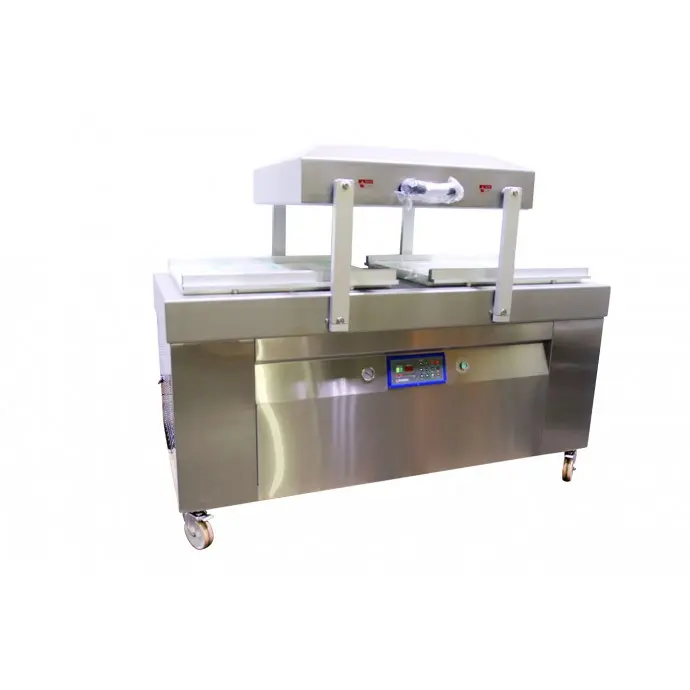

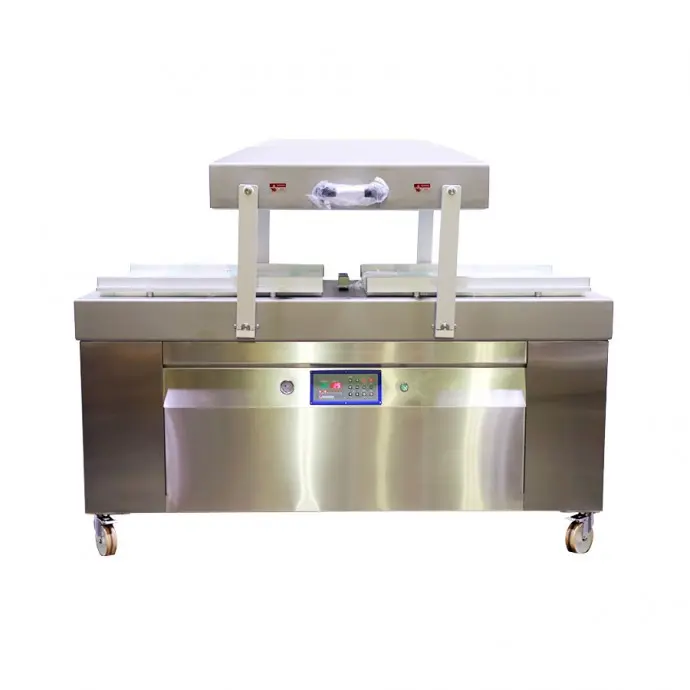

CHDC-800: Double Chamber Vacuum Sealer (PRE-ORDER)
Total Price:
$16,688.00
$16,688.00
Part Number: CHDC-800

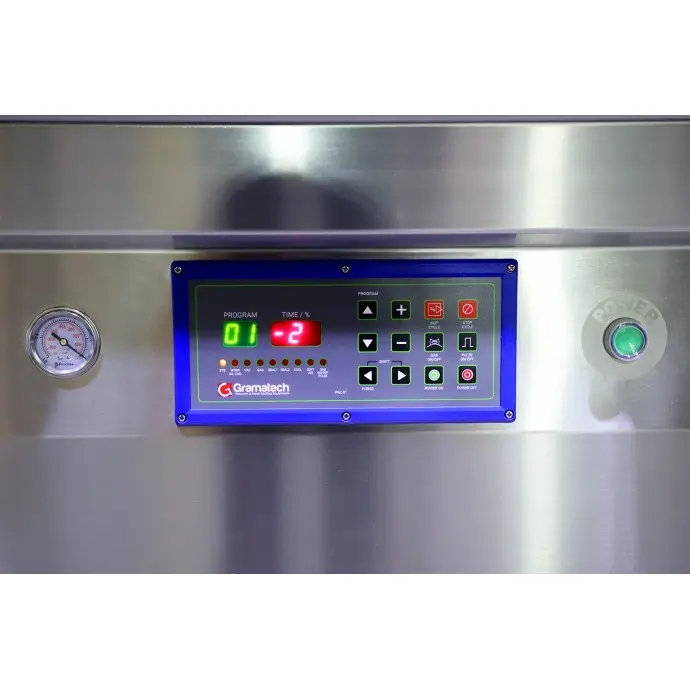

Better known as the “workhorses” within the vacuum chamber industry, our double chamber line of equipment is built to handle years of heavy use and abuse. You will not find an aluminum deck on these machines because they are built to last. Consisting of a fully enclosed stainless steel base with a reinforced chamber deck and heavy-gauge lid, these machines are anything but light duty. The model CHDC-800 is one of our most popular dual chamber vacuum sealing models. Both the housing and the vacuum cavity are constructed using all # 304 stainless steel as part of meeting the stringent NSF standards. The heart of this vacuum chamber machine is the Busch oil rotary vacuum pumps. Like all IMPAK Gramatech brand chamber vacuum sealers this machine is ETL tested, certified and labeled as meeting UL and CSA safety standards for packaging equipment as well as NSF sanitary standards. This means the CHDC-800 is ready to go to work in any inspected facility. The standard PD-01 basic digital control panel allows the operator to quickly set the parameters for vacuum time, gas flush time (with optional gas flush system), seal time and cooling time with the accuracy of a digital readout. If your application requires more advanced control then the optional PNC-01 microprocessor based control panel may be just what you need. The PNC-01 allows for the vacuum to be controlled via time or vacuum pressure and also includes a 14 recipe memory, soft air venting as well as multi-stage gas flush capability just to name a few of the control options it offers the operator. Learn more about the PD-01 and PNC-01 Microprocessor System.
For applications that require a temperature controlled seal system and / or a fully validatable control system, the CHDC-800 can be equipped with our Precise Seal PLC/HMI-based control system. This system allows for the seal to be controlled via temperature or time as well as allowing for the vacuum to be very precisely controlled via vacuum pressure. Optional calibration ports are also available, allowing a 3rd party calibration lab to easily calibrate and certify your machine
Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the CHDC-800 one of the best options for hunters/fisherman processing at home, long term food storage, and small prosumer applications where reliability and safety are important.
IMPAK supplies CHDC-800 dual chamber 1sealers for applications including:
- Hi volume sous vide
- Pet food packaging
- Cheese packaging
- Test kitchens
- Beef jerky packaging
- Bio labs (Non-validatable applications)
- Fish & game processing
- Restaurants
- Vitamin ingredient bulk packaging
- Vacuum packaging laser printer cartridges
- Many more
NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags
| Material: | #304 Stainless Steel | CHDC-800 Double Chamber Sealer | |
| Use Space: | Floor | ||

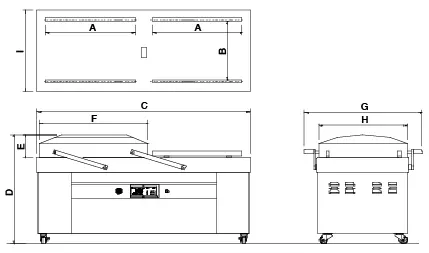

| Size (LxWxH): | 75" x 42" x 45" (1905x1066x1143mm) | Weight: | 1195 lbs (572 kg) |
| Power: | 18 Amps (?) | Voltage: | 230V/3ph/60Hz |
| Chamber Type: | Double | Lid Material: | #304 Stainless Steel |
| Controller: | Digital | Lid Shape: | Domed |
| Seal Length: | 31.5" (800mm) (x4) | Pump Type: | Rotary Oil |
| Seal Width: | 10mm | Pump Capacity: | 100m3/h |
| Seal Bar Position(s): | Front + Back (x2) | Pump Horsepower: | 5 hp |
| Seal Bar Distance: | 24" (610mm) | Hot Bar Position: | Bottom |
| Chamber Size (W x D): | 38.5" x 31.1" (978x790mm) | Chamber Height: | 10" (255mm) |
| Bed Position: | Flat | Chamber Volume: | ~9,016 in3 (x2) |
| Feat: |
|
||
| Options: |
|
||
PNC-01 Water Resistant Controler
Upgrade to a more advanced controller allowing for the control of both time AND pressur (by %) each cycle. The added water resistance is a good piece of mind for a wide variety of projects. It also includes a 14-recipe memory, soft air venting, and multi-stage gas flush capability.
Top + Bottom (Bi-Active) Seal Bars
For temperature resistant or thick material, sometimes you need heating elements on both the top and bottom seal bars to ensure the material is melted to a strong seal within a reliable prodution cycle.
Nitrogen Generator
The Nitrogen generator produces Nitrogen gas (N2) from a standard compressed air line. This model is designed to generate Nitrogen at purities between 95% and 99.5%.
This Nitrogen generator can be used as a replacement for heavy and bulky Nitrogen gas tanks. Its slick and compact design allows users to integrate this with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about a depleting Nitrogen gas source, as our generator produces Nitrogen from a clean compressed air source.
Sterile Air
Two Pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a Sterile Nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.
Nitrogen + Sterile Air Generator Kit
Sterile Air Kit with Nitrogen Generator -
Works Best together!
Gas Flush (Modified Atmosphere Packaging - MAP)
A Gas flush consists of an inert gas such as nitrogen (N2), carbon dioxide (CO2), Carbon Monoxide (CO), or exotic gases such as argon or helium - which is injected and frequently removed multiple times to eliminate oxygen from inside the package. This technique is opften refered to as MAP (Modified Atmosphere Packaging). Most common applications for MAP include coffee, snack foods, pre-baked products, meat and poultry, as well as other more sophisticated applications.
MAP Recommendedationsby Application
Working Voltage
Can be made for use in 110V or 220V applications. Contact us to meet your exact spec!
Chamber Plates - Production Improvement Platform (PIP)
Not only can we product filler plates to make your production as efficient as possible, we also work with customers to find optimized shapes or designs to help ensure the best seal every time.
Dual Start / Emergency Stop Buttons
Keep hands clear and safe durring production with dual button start, and/or add custom emergency contingency controls to meet your Safety and production requirements.
Swing Lid Double Chamber in Operation
Chamber Sealer Comparison - Vacuum With and Without Gas Flush
Performance Improvment Platform Option For Chamber Sealers:
