Commercial & Industrial Machines That Meet UL & NSF Requirements

Chamber type vacuum sealers are among the most versatile vacuum sealers available and with the addition of a gas flush system these units can produce results that cannot be matched by other types of vacuum sealer machines. Chamber units also offer the very best vacuum for products that require low oxygen content in the package. Gramatech offers a complete line of vacuum chamber sealers from commercial quality tabletop and single chamber units to full industrial single chamber sealers and high production double/dual-chamber machines. The entire line of Gramatech vacuum chamber sealers are certified & labeled to meet UL, CSA, and NSF requirements.

Chamber vacuum sealers are also among the easiest machines to operate, just close the lid to start the cycle no footswitch required and since the seal is produced before the lid opens you get a uniform seal with no wrinkles every time. From tabletop models to custom machines Impak’s Gramatech Chamber Line has a unit to meet your specific requirements. Compare models in the chart below or contact a chamber vacuum sealer specialist at IMPAK to get advice based on your application.

learn about chamber vacuum sealers

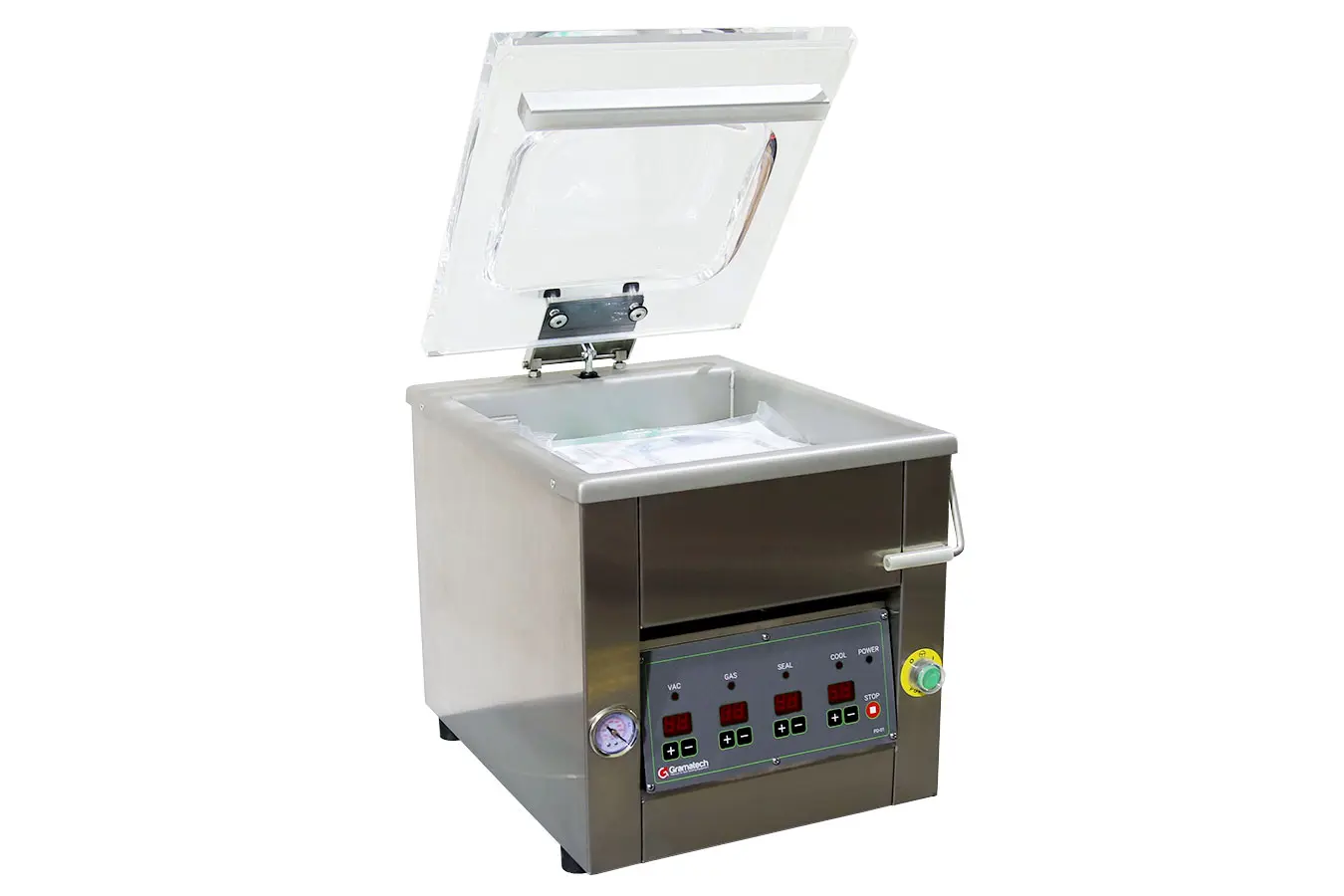

Tabletop Chamber Units

tabletop chamber vacuum sealer

Compact / Commercial Quality

The smallest size and lowest price of the chamber type vacuum sealers yet still commercial quality machines with Busch vacuum pumps.

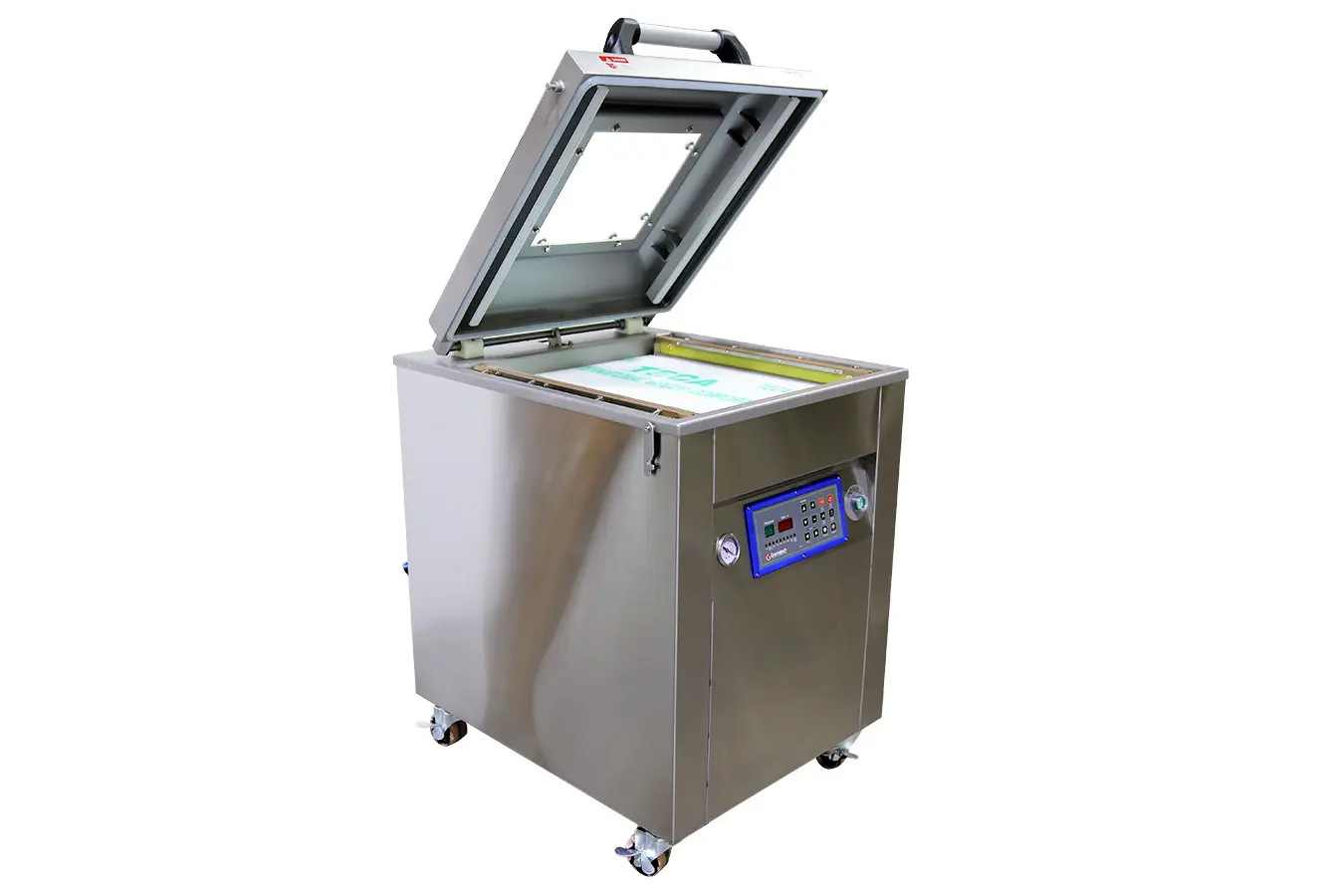

Single Chamber Units

single chamber vacuum sealer

Commercial & Industrial Units

SC models are free standing units designed for full industrial applications and all feature Busch vacuum pumps.

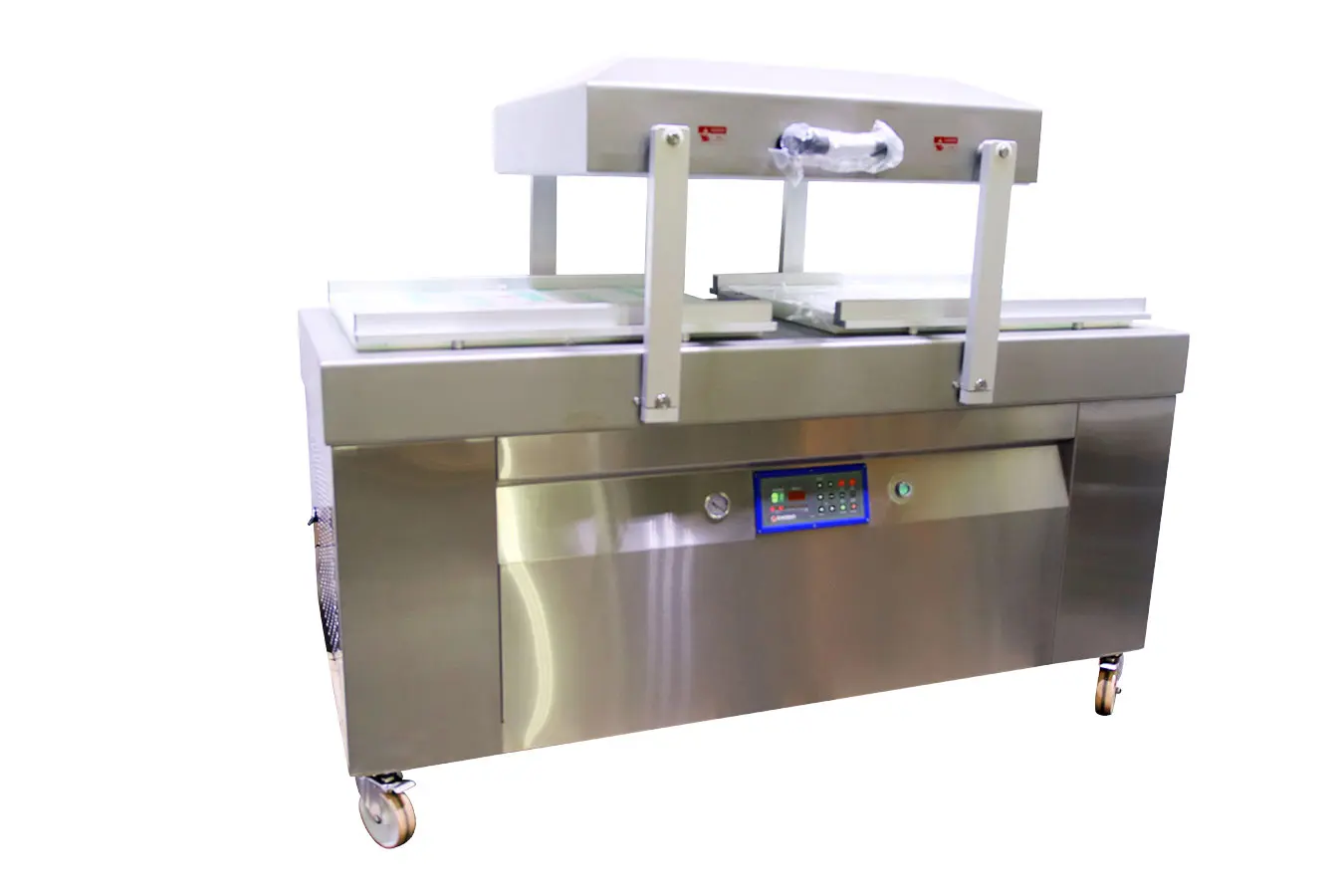

Double Chamber Units

double chamber vacuum sealer

The Workhorse of Vacuum Sealers

These swing lid machines are built with high production output in mind and use all Busch vacuum pumps.

  Tabletop Chamber Units Single Chamber Units Double Chamber Units
Seal Lengths 11.8" to 33.8" 16.9" to 26" 21.2" to 39.3"
220V/1PH Optional Optional (to 5HP) Optional (to 5HP)
Stainless Steel X X X
Seal System Impulse Impulse Impulse
Bi-active Seal Optional Optional Optional
PNC-01 Controller Optional Optional X
Gas Flush Optional Optional Optional
Emergency Stop Optional Optional Optional

Evolution of Innovation

How a Large Scale Chamber Vacuum Sealer for Major Medical Equipment Provider Changed Our Technological Trajectory

Learn More

Chamber Sealer and Flexible Packaging Solutions

Gramatech Chamber Sealer and Flexible Packaging Solutions Help Chubby Snacks Achieve Success at Every Stage of Explosive Growth!

Learn More

chamber vacuum sealers

Benefits of Using a Chamber Vacuum Sealer:

  • Greater vacuum percentage (lower oxygen) as compared to a nozzle type sealer
  • A larger seal bar (or more than one) will allow the operator to vacuum and seal multiple pouches at the same time resulting in greater productivity
  • Little to no operator involvement after the lid has been closed and the cycle has started
  • Options for percentage vacuum will allow for partial vacuum if making an object immobile is your goal
  • The vacuum pump is built-in so you don't need any additional equipment

Need Something Custom?

Our Intelligent Sealing System is the solution for custom sealing equipment. iS2 chamber sealers offer a higher degree of control, as well as a more convenient touch screen interface, plus the option to store multiple recipes. The iS2 system does not come pre-installed on chamber vacuum sealers; this is an upgrade and begins with a call to our machinery specialists so they can assess your needs and offer a custom system. Generally, we suggest the iS2 system for 520 units and up and do not offer on smaller units unless by unique requirement. The upgrade pricing to the iS2 System will depend on your specific needs. Learn more about the iS2 System.

More About Chamber Sealers

Vacuum chamber sealers are the best choice for a wide variety of products that require a high pressure vacuum to be achieved without the product being crushed, warped or damaged in any way due to the pressure exerted on it by the pouch when a tight vacuum is achieved. Since the entire product and vacuum pouch are processed inside the machines vacuum cavity both the inside and the outside of the package experience the pressure change during the vacuum cycle at the same time. When this is combined with the effect of gas flushing the package before it is sealed a package with ultra-low residual oxygen can be achieved without ever putting the product under damaging pressure. This unique process that can only be achieved with a chamber vacuum sealer is of tremendous benefit to products like cannabis and baked goods as well as many other high value delicate products.

Our Guarantee

IMPAK has long been recognized as a leading provider of high quality sealers. We value our reputation and we stand behind our products. Every sealer we sell is thoroughly tested for defects prior to shipment; and with the purchase of any hand held portable heat sealer, you get a 1 year warranty that includes parts and labor (minus consumables), as well as friendly tech-support and on-site machine technicians.

Helpful Videos

Interesting Uses for Chamber Sealers:

Vacuum Packaging Military Supplies

Many branches of the military vacuum package a variety of products from survival parkas and sleeping bags to mission ready kits for the Navy Seals as well as ammunition and aircraft electronics. In some cases the vacuum packaging is done for space reduction purposes, where in other cases it is for dry-packing the product for long term storage and in some - like ammunition - it is done to greatly reduce the oxygen in the package as exposure to oxygen has a detrimental effect on the performance of ammunition that has been in long term storage.

Vacuum Packaging Whole Goat Carcasses for Further Processing

This project was a good example of both the versatility and superior performance that can be achieved with vacuum chamber machines. This product needed to be packed using vacuum packaging equipment that would provide for extremely low residual oxygen content in the finished package as well as having a seal system that could handle an extremely large bag and the machine also needed to be simple enough to be operated by mostly untrained operators in rural environments. While large nozzle type machines could handle the large bags they could not produce end results that meet the low residual oxygen requirement and were more difficult to achieve the best seal results with. Since the throughput required was low to medium, a custom sized single chamber vacuum sealer was the best choice.

Refine Search
Sort By:
Show:
Special high valume vacuum chamber sealer for frozen fish
.cart{ display:none !important; } .price{ display:none !important; } M..
$0.00
large body silver metal sealer with chamber shroud
.cart{ display:none !important; } .price{ display:none !important; } ..
$0.00
Chamber Vacuum Sealer
Contact a sales representative before purchasing to check for cut-wire material compatibility f..
$2,505.00
Chamber Vacuum Sealer
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$4,140.00
chamber vacuum sealer with lid open
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$4,500.00
Stainless-Steel Chamber Vacuum Sealer
NEED VACUUM BAGS? IMPAK recommends our 8.5" x 13.0" O.D. Vacuum Bags. AVAILABLE IN 2-3 WEEKS LE..
$5,690.00
Chamber Vacuum Sealer
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$6,435.00
Chamber Vacuum Sealer
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$6,915.00
Chamber Vacuum Sealer
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$6,885.00
Chamber Vacuum Sealer
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$9,120.00
Double Chamber Vacuum Sealer
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$11,900.00
silver chamber vacuum sealer with lid open
NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags PRE-ORDER ITEM: AVAIL..
$12,155.00
silver double  chamber vacuum sealer held open
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$15,360.00
Double Chamber silver Vacuum Sealer with open lid
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$16,555.00
Double Chamber silver Vacuum Sealer held open
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$17,875.00
Double Chamber silver Vacuum Sealer with lid open
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$20,310.00
Double Chamber CHDC-900 Vacuum Sealer
NEED VACUUM BAGS? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags or our 8.437..
$28,315.00
