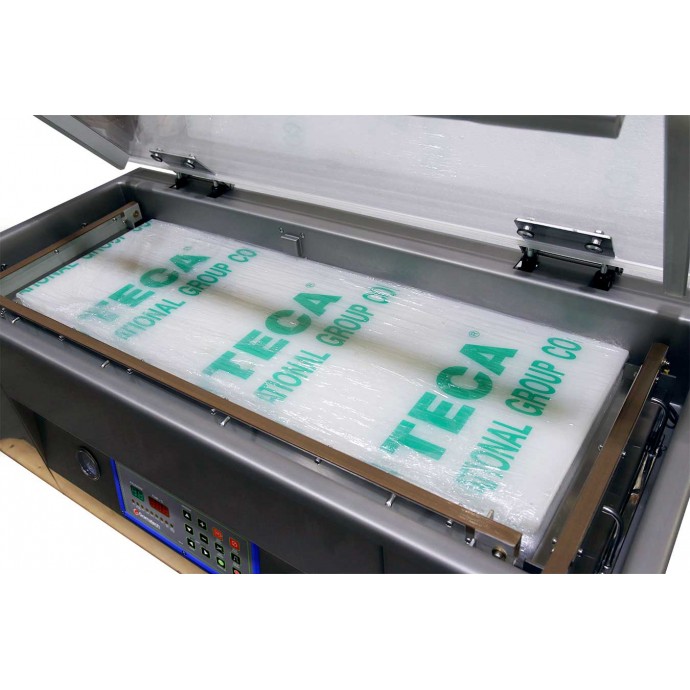

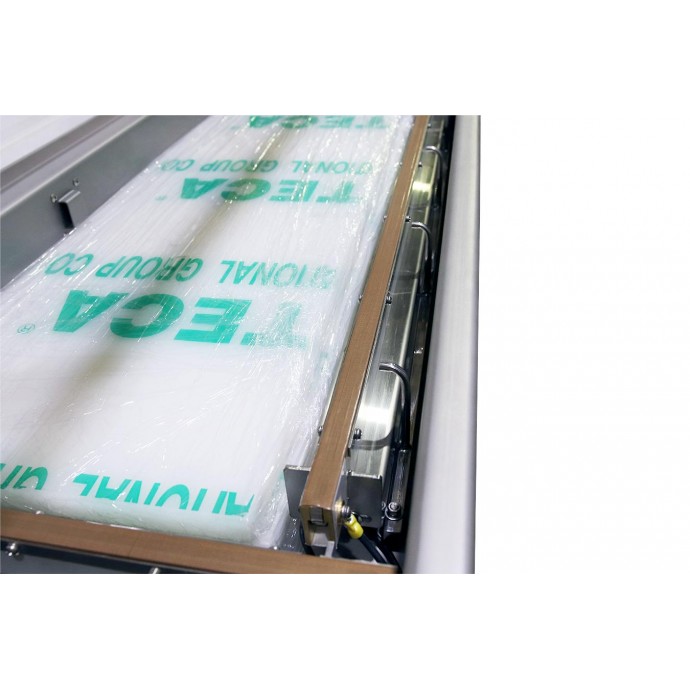

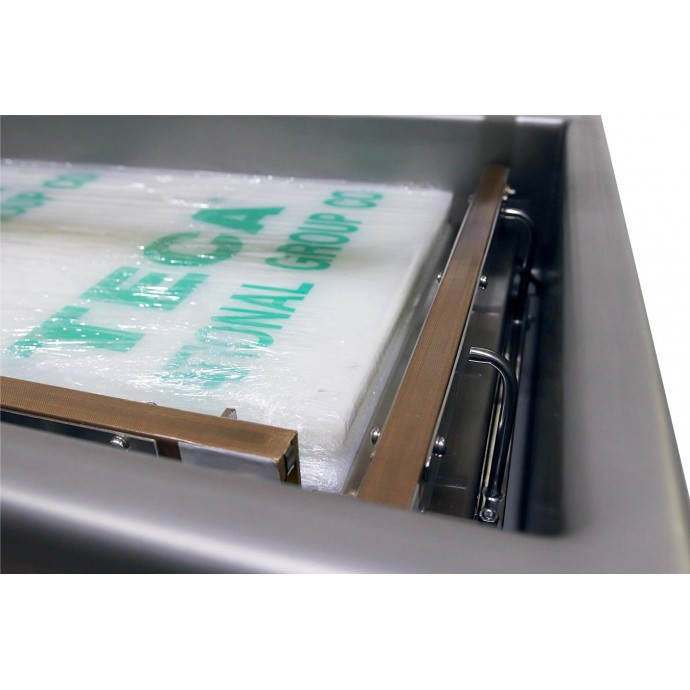

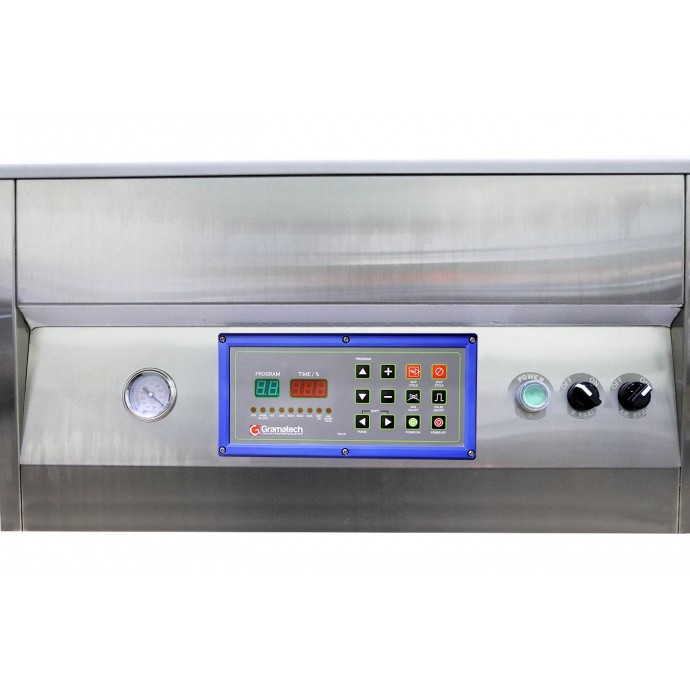

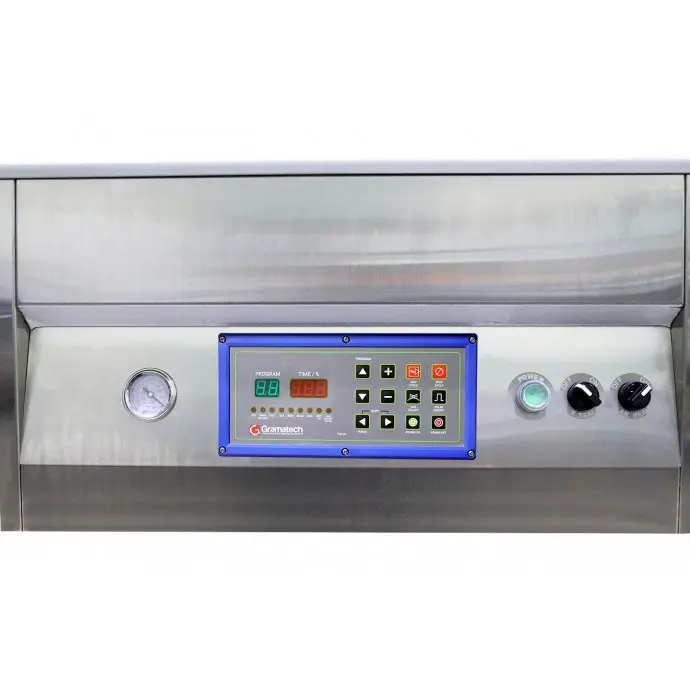

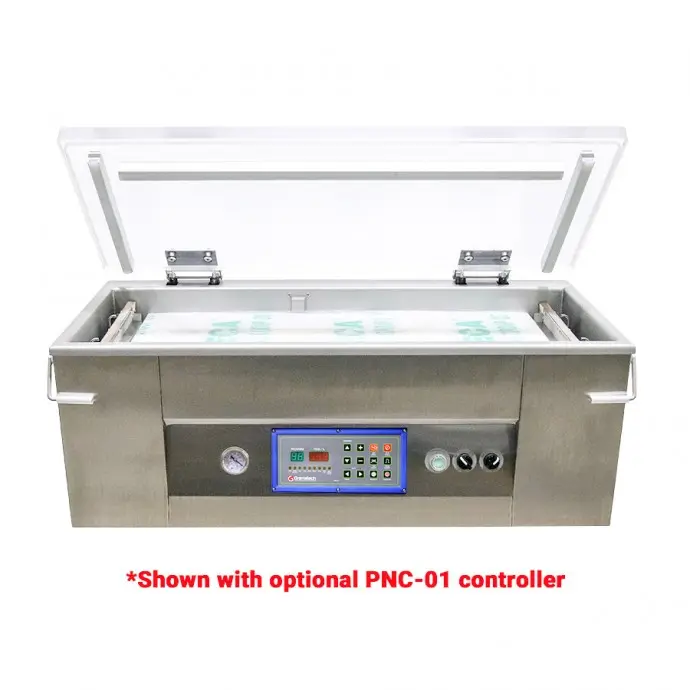

The model CHTC-350FLR is a vacuum chamber sealing machine that was designed with several special applications in mind including fish products and longer cuts of meat like pork loins. One of the special features you will find in the CHTC-350FLR is three seal bars, one in the front, one on the right side and one on the left side. This arrangement along with a selector switch that allows the operator to choose either the left and right bars, the front bar or all three allows the machine to handle several very long bags or a greater number of shorter bags depending on the product being vacuum sealed. Like all IMPAK chamber vacuum sealers the housing and the chamber cavity are constructed of all # 304 stainless steel and the machine has been ETL tested and certified to meet both UL and CSA safety standards as well as NSF sanitary standards making this model an ideal fit for any facility were such standards are mandatory. As with any model vacuum chamber sealing machine the heart of the CHTC-350FLR is the vacuum pump and IMPAK would never settle for less than a Busch vacuum pump. IMPAK recognizes the importance of an easy to use and accurate control system and meets those requirements with the standard basic digital control panel (PD-01). For those users that require more than basic controls there is the option of the powerful microprocessor based PNC-01 control panel that allows for multi-stage gas flush (if thee machine has the optional gas flush system) soft air venting as well as a 14 recipe memory. Learn more about the PD-01 and PNC-01 Microprocessor System. Other options like a gas flush system and air assist seal system allow the CHTC-350FLR to handle a wide variety of food and non-food applications.
OPTIONS:
For options, please contact flprocessing@impakcorporation.com
CHTC-350FLR Chamber Vacuum Sealer Machine
3-4 WEEKS LEAD TIME

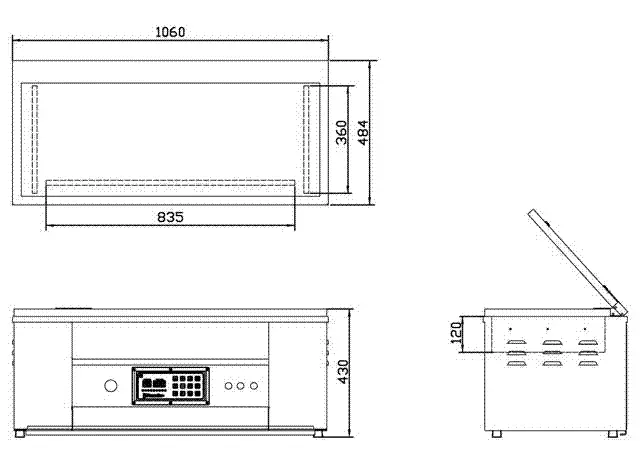

TECHNICAL SPECIFICATIONS
| Chamber size | 16.6" x 41.4" |
| Chamber depth | 4.7/120mm |
| Seal bar length | 32.8x1/835mm |
| Vacuum pump capacity | 21m3/h (1-1/4 hp) |
| Voltage | 110V/1ph/60hz/16amp |
| Machine weight | 253 lbs. /115 kg |
| Machine size - L x W x H | 42.0" x 19.0" x 17.0" |
| Standard Features: | |
|
|
OPTIONS:
For options, please contact flprocessing@impakcorporation.com
Sterile Air
Two Pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a Sterile Nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.
Nitrogen Generator Kit
The Nitrogen generator produces Nitrogen gas (N2) from a standard compressed air line. This model is designed to generate Nitrogen at purities between 95% and 99.5%.
The Nitrogen generator can be used as a replacement for heavy and bulky Nitrogen gas tanks. Its slick and compact design allows users to integrate this with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about a depleting Nitrogen gas source, as our generator produces Nitrogen from a clean compressed air source.
Sterile Air Kit with Nitrogen Generator
OPTIONS:
For options, please contact flprocessing@impakcorporation.com
