CHTC-520LR: Chamber Vacuum Sealer (PRE-ORDER) USA

Description Technical Specifications Options Videos Spare Parts

PRE-ORDER ITEM: AVAILABLE IN 3-5 WEEKS LEAD TIME

The model CHTC-520LR is one of our most popular table top vacuum chamber sealer models. The “LR” in the model number lets you know that this machine features a two 21” seal bars one on the left and one on the right of the vacuum cavity area. Both the housing and the vacuum cavity are constructed using all # 304 stainless steel as part of meeting the stringent NSF standards. The heart of this vacuum chamber machine is the Busch oil rotary vacuum pumps. Like all IMPAK chamber vacuum sealers this machine is ETL tested, certified and labeled as meeting UL and CSA safety standards for packaging equipment as well as NSF sanitary standards. This means the CHTC-520LR is ready to go to work in any inspected facility. The standard PD-01 basic digital control panel allows the operator to quickly set the parameters for vacuum time, gas flush time (with optional gas flush system), seal time and cooling time with the accuracy of a digital readout. If your application requires more advanced control then the optional PNC-01 microprocessor based control panel may be just what you need. The PNC-01 allows for the vacuum to be controlled via time or vacuum pressure and also includes a 14 recipe memory, soft air venting as well as multi-stage gas flush capability just to name a few of the control options it offers the operator. Learn more about the PD-01 and PNC-01 Microprocessor System.

For applications that require a temperature controlled seal system and / or a fully validatable control system, the CHTC-520LR can be equipped with our Precise Seal PLC/HMI-based control system. This system allows for the seal to be controlled via temperature or time as well as allowing for the vacuum to be very precisely controlled via vacuum pressure. Optional calibration ports are also available, allowing a 3rd party calibration lab to easily calibrate and certify your machine

Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the CHTC-520LR one of the best options for hunters/fisherman processing at home, long term food storage, and small prosumer applications where reliability and safety are important.

IMPAK supplies CHTC-520LR sealers for applications including:

Hi volume sous vide
Pet food packaging
Cheese packaging
Test kitchens
Beef jerky packaging
Bio labs (Non-validatable applications)
Fish & game processing
Restaurants
Vitamin ingredient bulk packaging
Vacuum packaging laser printer cartridges
Many more

NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags

Material:	#304 Stainless Steel	CHTC-520LR Single Chamber Sealer
Use Space:	Table	CHTC-520LR Single Chamber Sealer

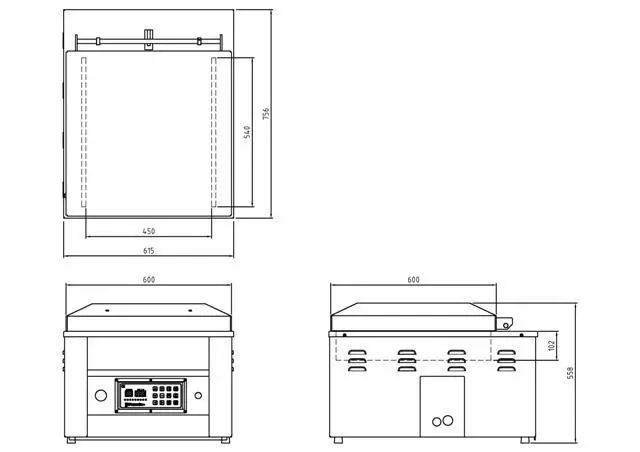

Size (LxWxH):	24" x 30" x 22" (609x762x559mm)	Weight:	280 lbs (127 kg)
Power:	16 Amps (?)	Voltage:	110V/1PH/60Hz
Chamber Type:	Single	Lid Material:	#304 Stainless Steel
Controller:	Digital	Lid Shape:	Domed
Seal Length:	21.2" (540mm)	Pump Type:	Rotary Oil
Seal Width:	6mm	Pump Capacity:	21m³/h
Seal Bar Position(s):	Left + Right	Pump Horsepower:	1 1/4 hp
Seal Bar Distance:	18" (450mm)	Hot Bar Position:	Bottom
Chamber Size (W x D):	23.6" x 23.6" (600x600mm)	Chamber Height:	8" (200mm)
Bed Position:	Sunken	Chamber Volume:	~4,455 in³
Feat:	BUSCH vacuum pump PD-01 dig. control panel Bladder activated seal Air assist 6mm seal wire/cut-off Aluminum cushion bar
Options:	Gas Flush Soft Air Air Regulator Pump Size Voltage (110V \|\| 220V) Top + Bottom (Bi-active) Seal Lid height (up to 12") Seal Width Sterile Air Nitrogen Generator Custom Filler Plates (PIP) Slanted Chamber Inserts Emergency Stop Mechanical Knife Cut-Off System PNC-01 Water Resistant Controler

PNC-01 Water Resistant Controler

Upgrade to a more advanced controller allowing for the control of both time AND pressur (by %) each cycle. The added water resistance is a good piece of mind for a wide variety of projects. It also includes a 14-recipe memory, soft air venting, and multi-stage gas flush capability.

Top + Bottom (Bi-Active) Seal Bars

For temperature resistant or thick material, sometimes you need heating elements on both the top and bottom seal bars to ensure the material is melted to a strong seal within a reliable prodution cycle.

Nitrogen Generator

The Nitrogen generator produces Nitrogen gas (N2) from a standard compressed air line. This model is designed to generate Nitrogen at purities between 95% and 99.5%.
This Nitrogen generator can be used as a replacement for heavy and bulky Nitrogen gas tanks. Its slick and compact design allows users to integrate this with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about a depleting Nitrogen gas source, as our generator produces Nitrogen from a clean compressed air source.

Sterile Air

Two Pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a Sterile Nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.

Nitrogen + Sterile Air Generator Kit

Sterile Air Kit with Nitrogen Generator -
Works Best together!

Nitrogen Generator and
Sterile Air Kit Specifications

Gas Flush (Modified Atmosphere Packaging - MAP)

A Gas flush consists of an inert gas such as nitrogen (N₂), carbon dioxide (CO₂), Carbon Monoxide (CO), or exotic gases such as argon or helium - which is injected and frequently removed multiple times to eliminate oxygen from inside the package. This technique is opften refered to as MAP (Modified Atmosphere Packaging). Most common applications for MAP include coffee, snack foods, pre-baked products, meat and poultry, as well as other more sophisticated applications.

MAP Recommendedations
by Application

Working Voltage

Can be made for use in 110V or 220V applications. Contact us to meet your exact spec!

Chamber Plates - Production Improvement Platform (PIP)

Not only can we product filler plates to make your production as efficient as possible, we also work with customers to find optimized shapes or designs to help ensure the best seal every time.

Dual Start / Emergency Stop Buttons

Keep hands clear and safe durring production with dual button start, and/or add custom emergency contingency controls to meet your Safety and production requirements.

Performance Improvment Platform Option For Chamber Sealers:

Watch on YouTube: "Chamber vacuum seal platform for performance improvment"

CHTC-420 Stainless Steel Chamber Vacuum Sealer

Watch on YouTube: "stainless steel chamber vacuum sealer demo"

Chamber Sealer Comparison - Vacuum With and Without Gas Flush

Watch on YouTube: "Chamber vacuum seal gas flush option"

Robotic Arm with Chamber Vacuum Sealer

Watch on YouTube: "stainless steel chamber vacuum sealer demo"

Consumables:
