Home » 55 Gal PAKSAFE320 High Temp Foil Barrier Drum Liner, 5 mil (10/case) - DLPKSHBTD2325

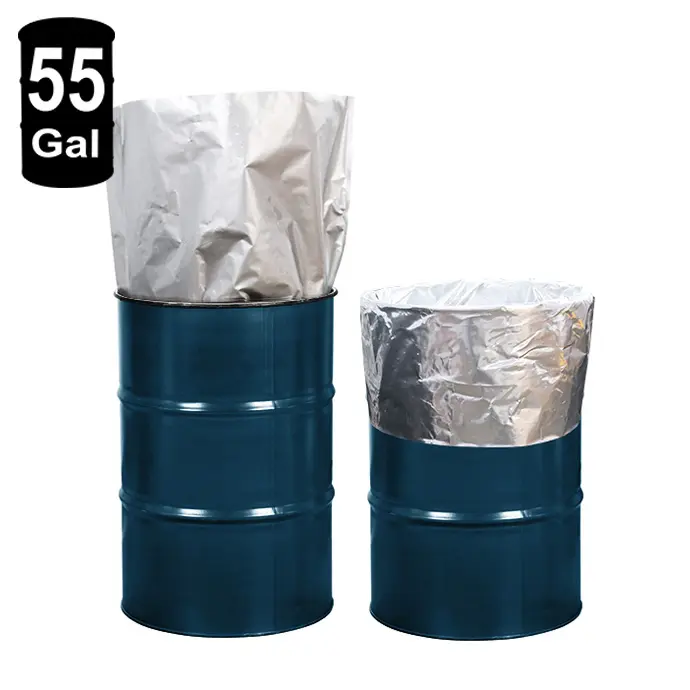

Silver high barrier drum liners in blue drum
  • 55gal metal drum with hot fill ready liner sticking out from the top neatly
  • picture of retort machine with rollstock material temperature capabilities shown

55 Gal PAKSAFE320 High Temp Foil Barrier Drum Liner, 5 mil (10/case) - DLPKSHBTD2325

Total Price:
$272.80

1 case: $272.80 /case -- ($27.2800 each)

  • 5 or more $241.45 /case -- ($24.1450 each)
  • 10 or more $206.25 /case -- ($20.6250 each)
  • 25 or more $167.20 /case -- ($16.7200 each)
  • 50 or more $158.95 /case -- ($15.8950 each)
  • 80 or more $145.20 /case -- ($14.5200 each)
  • 120 or more $134.20 /case -- ($13.4200 each)
Part Number: DLPKSHBTD2325

PAKSAFE320 Hotfill Packaging:

Part Number Size Style
067PKS1025RC 6.7" x 10.25" 3 Side Seal
DLPKSHBTD11 18.5" x 19.5" x 11" 5 Gal Drum Liner
DLPKSHBTD2325 39.6" x 53.0" x 23.6" 55 Gal Drum Liner
DLPKSHBTD2325-2PACK 39.6" x 53.0" x 23.6" 55 Gal Drum Liner Pack
DLPKSHBTD305 49" x 59" x 30.5" 110 Gal Drum Liner
DLPKSHBTD305-1PACK 49" x 59" x 30.5" 110 Gal Drum Liner Pack

PAKSAFE320 Hotfill Packaging:

Part Number Size Style
067PKS1025RC 6.7" x 10.25" 3 Side Seal
DLPKSHBTD11 18.5" x 19.5" x 11" 5 Gal Drum Liner
DLPKSHBTD2325 39.6" x 53.0" x 23.6" 55 Gal Drum Liner
DLPKSHBTD2325-2PACK 39.6" x 53.0" x 23.6" 55 Gal Drum Liner Pack
DLPKSHBTD305 49" x 59" x 30.5" 110 Gal Drum Liner
DLPKSHBTD305-1PACK 49" x 59" x 30.5" 110 Gal Drum Liner Pack
Outer Dimensions: 39.6" (W) x 53.0" (H) x 23.6" (D)
Style: Round bottom bag
Color: Silver
Features: No zipper, no tear notch
Material: PAKSAFE320
Thickness: 5.0 mil
Fill Format: Fill through top; REQUIRES SEALER
Quantity: 10 bags/case

Keep drums clean for re-use with this heavy duty round bottom bag designed to be used as a liner for 55 gallon (208 liter) drums. This bag's high barrier, high temperature material was originally developed for industries like high performance adhesives, and can withstand product temperatures up to 320°F (160°C). Contact IMPAK to determine if this material meets your specifications.

Applications: Food products, industrial liquids, solvents, adhesives, specialty chemicals, high temperature storage, bulk powders, polymer resins, APIs / pharmaceutical powders, biological samples, veterinary products, other products with extreme sensitivity to moisture or oxygen

Material: PAKSAFE320 is a high performance film structure with excellent oxygen and moisture barrier properties and a sealant layer with high temperature contact capability. The unique high barrier/high temperature properties of this product lend itself well to a wide range of applications. The original application for the product was in high performance urethane adhesives being loaded into 5 gallon (23L) and 55 gallon (300L) containers where the material must be able to withstand 160° Celsius (320° F).

Purchase above, or go to Drum Liners

NOTE: Due to the amount of material and labor that goes into making this bag, we cannot offer it as a free sample. To place a sample order, contact IMPAK.

PAKSAFE320 Material Specifications


This high performance film structure has excellent oxygen (two layers of biaxially oriented nylon) and moisture barrier (0.00035 foil) properties. Its greatest feature may be its sealant-layer temperature contact capability. The unique high barrier/high temperature properties of this product lend itself well to a wide range of applications. The original application for the product was in high performance urethane adhesives being loaded into 5 gallon (23L) and 55 gallon (300L) containers where the material must be able to withstand 160° Celsius (320° F).

PHYSICAL PROPERTIES (60 Gauge biaxially oriented NYLON / 0.00035” FOIL / 60 Gauge biaxially oriented NYLON / Proprietary Adhesive / 3.5 MIL Ultra High Temperature Grade Cast Polypropylene)

TOTAL THICKNESS (mils) 5.0 mil.
BREAKING STRENGTH MD: 5.8 lbs.
TD: 7.5 lbs.
PUNCTURE STRENGTH >38 lbs.
MULLEN BURSTING STRENGTH >130 psi
