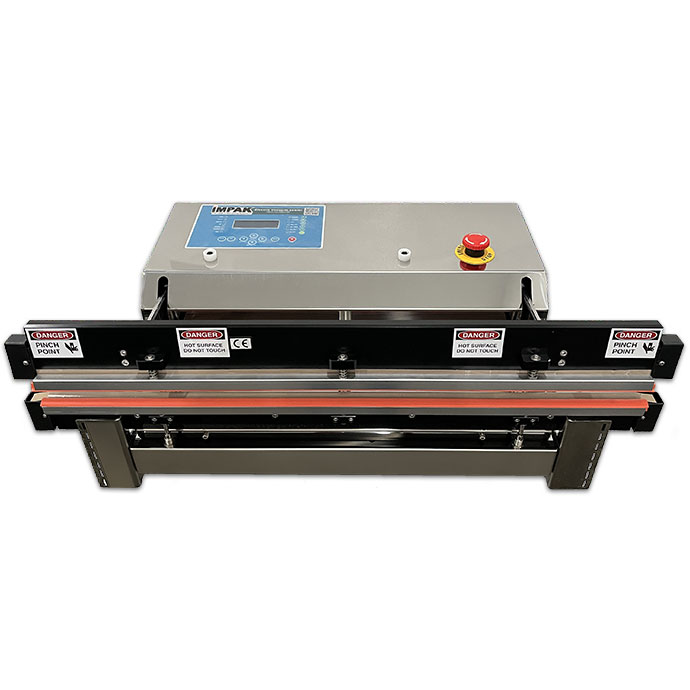

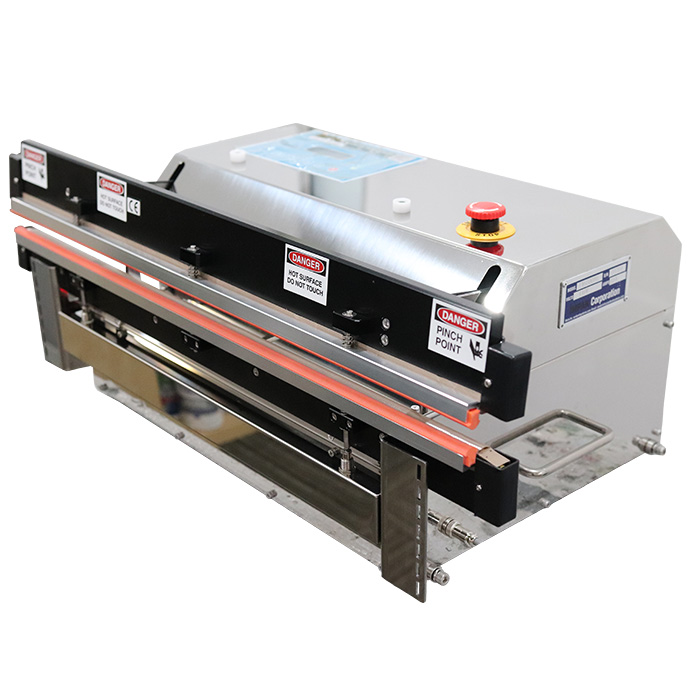

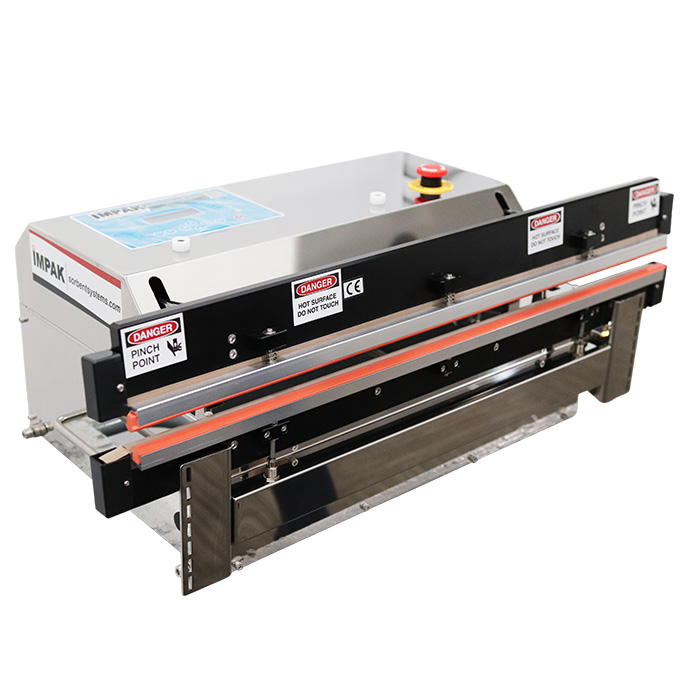

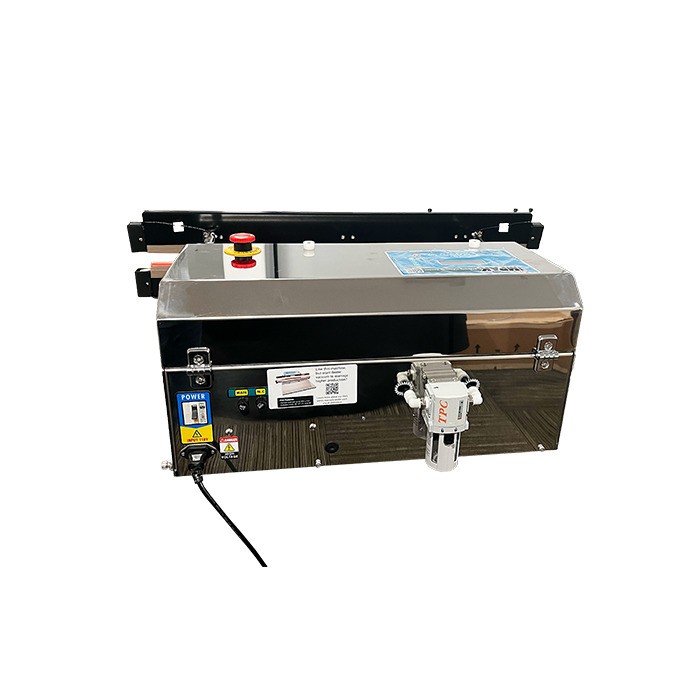

31.5" All-Electric Vacuum Sealer with Dual Heating Element and 140L Pump - EVS800DH

stainless steel body electric nozzle vacuum sealer

Total Price:
$7,235.20

Part Number: EVS800DH

NO AIR LINE / COMPRESSOR NEEDED *

* Unless Nitrogen Generator Kit is added / used

Available Options include:

Work Shelf (discounted with purchase)
Heavy Duty Stainless Steel Stand
3/8 inch Seal Width Upgrade
Clean Room Ready
Gas Flush
Nitrogen Generator and Sterile Air Kits
Spare Parts Kit

Contact a Sales Rep
for More Information

“We needed a machine to be 350 feet from standard production. The fact that we could use this unit without running an air line all that way for the 40-60 pouches a day we need to run made IMPAK's EVS800DH perfect for our 26” bags prior to sterilization.”

- Manufacturing Engineer, Major Medical Corporation

These units are CE compliant, with documentation available.

NO AIR LINE / COMPRESSOR NEEDED *

* Unless Nitrogen Generator Kit is added / used

Available Options include:

Work Shelf (discounted with purchase)
Heavy Duty Stainless Steel Stand
3/8 inch Seal Width Upgrade
Clean Room Ready
Gas Flush
Nitrogen Generator and Sterile Air Kits
Spare Parts Kit

Contact a Sales Rep
for More Information

“We needed a machine to be 350 feet from standard production. The fact that we could use this unit without running an air line all that way for the 40-60 pouches a day we need to run made IMPAK's EVS800DH perfect for our 26” bags prior to sterilization.”

- Manufacturing Engineer, Major Medical Corporation

These units are CE compliant, with documentation available.

Description Options Videos

NOTICE: "In-Stock" items are NOT ready for immediate shipment! Machines are built-to-order, in the USA. Unmodified EVS units can ship as soon as 3-5 business days. Call ahead for estimated delivery dates.
Please Note: Work Shelf Sold Separately **Discounted if purchased with machine

IMPAK's all-electric industrial vacuum sealers are outstanding units for medical and clean room use. Unlike air driven pneumatic sealing machines, The electric sealers have no need for an air compressor source. Since the sealers do not require an air compressor unit, these motor driven vacuum sealers will work more quietly than other pneumatic driven vacuum sealers on the market. This sealer gives a strong 5mm - almost .25 inch - seal from a frame that is built for either 17.7" or 13.8" wide pouches.

EVS diagram

SPECIFICATION:
Sealing length: 31.5 inch (800 mm)
Sealing width: 0.2 inch (5 mm)
Heating: Dual heat element
Pump: Electric
Electric Req: 110V, 50/60 Hz, output: DC 24V
Airflow: 0.88 CFM (40 L/min)

DIMENSIONS (L x W x H):
16.0" x 35.0" x 11.0"
Net weight: 122 lb
Shipping weight: 197 lb
Ships within 2-3 business days

FEATURES:
Nozzle removes air directly from pouch
Excellent for medical, light commercial and clean room applications
No need for an external compressor
Compact size to fit small spaces
Stainless steel body and polished finish
Uses quality components for a long life and minimal maintenance requirements

Need an upgrade on your Amerivacs machine? Here are our customer's testimonials

“Compared to the Amerivac units I have had over the years it feels like I never change the elements and in fact I am not even sure where the spare parts kit that I purchased with this fantastic little machine is located.”

“Better quality, stainless steel, and built & shipped to me within 4 days of ordering.”

“If I was running IMPAK those machines would be priced higher than their competitor." - San Jose, CA Operations Manager

One of IMPAK's clients was using electric vacuum sealer for their medical application.

Clean Room Ready

Machine taken into Class 100 clean room where all surfaces are wiped down with an 80/20 mix of sterile water/isopropyl alcohol then double bagged and sealed in virgin poly bags.

Nitrogen Generator Kit

The nitrogen generator produces nitrogen gas (N₂) from a standard compressed air line. This model is designed to generate nitrogen at purities between 95% and 99.5%.

The nitrogen generator can be used as a replacement for heavy and bulky nitrogen gas tanks. Its slick and compact design allows users to integrate it with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about depleting their nitrogen gas source, as our generator produces nitrogen from clean compressed air.

NOTE: The Nitrogen Generator Kit requires a compressed air source to be used.

Sterile Air

With the Sterile Air Kit added to the Nitrogen Generator, gas flush impurities are virtually eliminated. Two pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a sterile nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.

Custom EVS800DH in action:

Watch on YouTube: "EVS800DH 31.5in vacuum sealer"

EVS with Dual Hand Operation

Watch on YouTube: "Dual Hand Vacuum Sealer Option"

How to Set Up and Use EVS Machine

Watch on YouTube: "Setting up electric vacuum sealer"

Gas-Flush Demonstration

Electric Vacuum Flow Comparison

Watch on YouTube: "Gas Flow Demonstration"

EVS Stand Build Guide

Watch on YouTube: "Assembling EVS stand"
