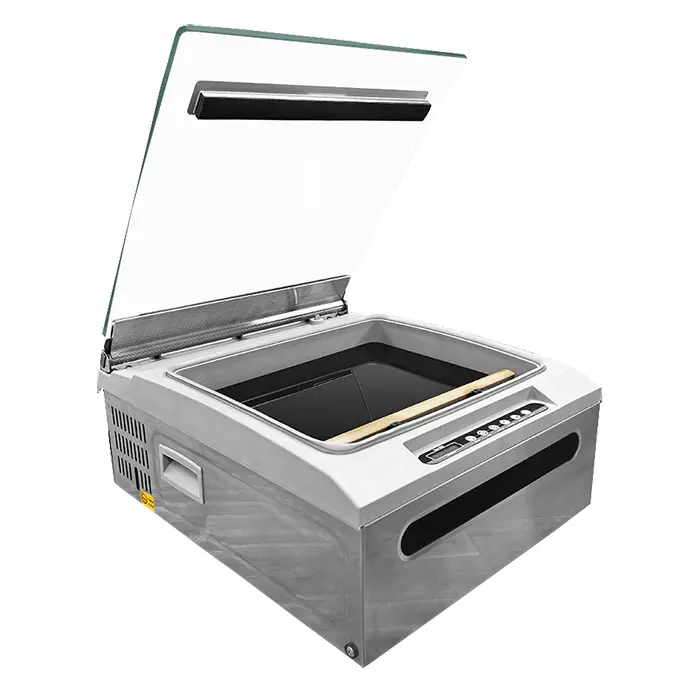

The GCV-12F has the smallest profile of our Castle Vak Chamber Sealers. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in small work spaces. It comes with a tempered glass lid to see the process when sealing without getting scratched or hazy, and a commercial grade, oil-lubricated, rotary-style vacuum pump to deliver a 4m3/h flow rate.
Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The GCV-12F's wider chamber gives enough room to seal two 6" x 10" vacuum pouches side-by-side per cycle. Even with the lowered chamber ceiling, it can still fit up to four 8 ounce (236ml) regular mouth Ball mason jars in the vacuum chamber. The power and size make the GCV-12F one of the best options for hunters/fisherman processing at home, long term food storage, and small prosumer applications where reliability and safety are important.
IMPAK supplies GCV-12F Sealers for applications including:
- Sous Vide
- Pet food packaging
- Test kitchens
- Beef jerky packaging
- Bio test labs (Non-validatable applications)
- Fish & game processing
- Many more
NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags
| Material: | #304 Stainless Steel | GCV-12F Castle Vak Chamber Sealer | |
| Use Space: | Table | ||

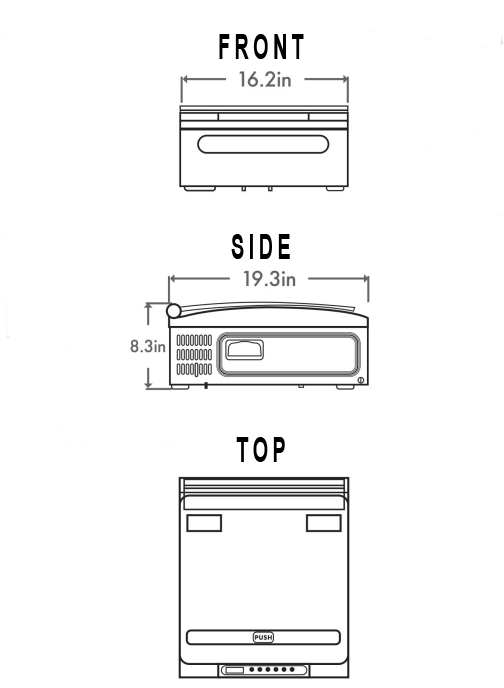

| Size (LxWxH): | 16.2" x 19.3" x 8.3" (412x490x211mm) | Weight: | 52 lbs (23.5 kg) |
| Power: | 5 Amps Max | Voltage: | 110V/1PH/60Hz |
| Type: | Single | Lid Material: | Acrylic |
| Controller: | Digital | Lid Shape: | Flat |
| Seal Length: | 12.3" (310mm) | Pump Type: | Oil |
| Seal Width: | 6mm | Pump Capacity: | 4m3/h (0.15 kW) |
| Seal Bar Position(s): | Front | Pump Horsepower: | - |
| Seal Bar Distance: | n/a | Hot Bar Position: | Bottom |
| Chamber Size: | 13.8" x 12" (350x305mm) | Chamber Depth: | 4.3" (110mm) |
| Bed Position: | Sunken | Chamber Volume: | ~712 in3 |
| Part Number | Seal Bar Length | Chamber Size | Style |
|---|---|---|---|
| GCV-11F | 11" / 300mm | 11.3" x 15.2" x 5.2" | Tabletop |
| GCV-12F | 12.3" / 310mm | 13.8" x 12" x 4.3" | Tabletop |
| GCV-16F | 16" / 400mm | 16.3" x 16.5" x 7" | Tabletop |
| GCV-16LR | 16" / 400mm (x2) | 16.3" x 16.5" x 7" | Tabletop |
| GCV-24LR | 24" / 610mm (x2) | 24.7" x 24.7" x 6.3" | Single Chamber |
| GCV-24LRPL | 24" / 610mm (x2) | 33" x 25.5" x 11.5" | Single Chamber |
| GCVDC-24FB | 24" / 610mm (x4) | 26.3" x 21.5" x 7.5" (x2) | Double Chamber |
| GCVDC-24FB3P | 24" / 610mm (x4) | 26.3" x 21.5" x 7.5" (x2) | Double Chamber |
| CHDV-650B | 25" / 640mm | 25.6" x 31.5" x 17.7" | Vertical Chamber |
