GCVDC-24FB3P: Three-Phase 24" Castle Vak Dual Chamber Vacuum Sealer (220V, 3 phase)
Total Price:
$6,879.00
$6,879.00
Part Number: GCVDC-24FB3P

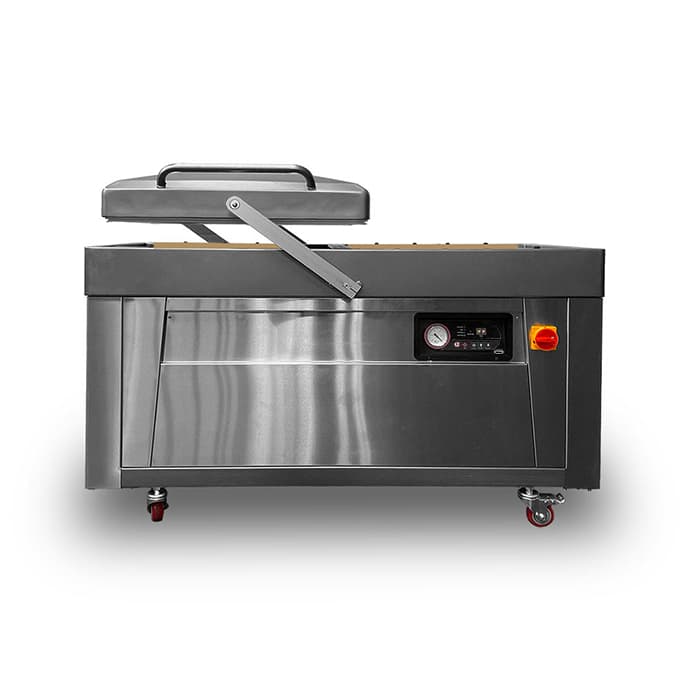

The model GCVDC-24FB3P is a large Dual Chamber Vacuum Sealer with front and back 24" seal bars from our Castle Vak line. This freestanding unit sits on wheels to move around the production area. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in small work spaces. This unit comes with a lid made from hygenic 304 Stainless Steel that moves between the two chambers for easy cleaning, and dual highly efficient vacuum pumps to deliver a combined 48m3/h flow rate (two 1 1/4 hp pumps at 24m3/h).
Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the GCVDC-24FB3P one of options for high volume projects or small prosumer applications where reliability and safety are important.
220-Volt, 3 phase power supply REQUIREDIMPAK supplies GCVDC-24FB3P sealers for applications including:
- Sous Vide
- Pet food packaging
- Test kitchens
- Beef jerky packaging
- Bio labs (Non-validatable applications)
- Fish & game processing
- Restaurants
- Many more
NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags
| Material: | #304 Stainless Steel | GCVDC-24FB3P Castle Vak Chamber Sealer | |
| Use Space: | Floor | ||

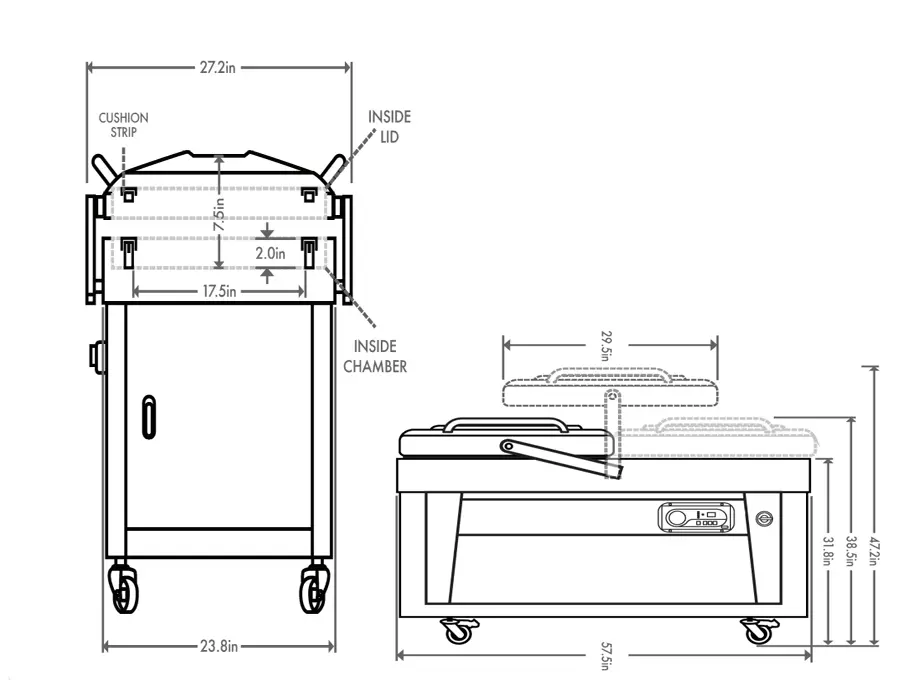

| Size (LxWxH): | 27.5" x 57.5" x 38.5" (699x1461x978mm) | Weight: | 540 lbs (245 kg) |
| Power: | 16 Amps Max | Voltage: | 220V/3PH/60Hz |
| Chamber Type: | Double | Lid Material: | #304 Stainless Steel |
| Controller: | Digital | Lid Shape: | Domed |
| Seal Length: | 24" (610mm) (x4) | Pump Type: | Oil |
| Seal Width: | 10mm | Pump Capacity: | 24m3/h (x2) = 48m3/h |
| Seal Bar Position(s): | Front + Back (x2) | Pump Horsepower: | 1 1/4 hp (x2) |
| Seal Bar Distance: | 28.7" (729mm) | Hot Bar Position: | Bottom |
| Chamber Size: | 26.3" x 21.5" (668x546mm) (x2) | Chamber Depth: | 7.5" (191mm) |
| Bed Position: | Flat | Chamber Volume: | ~4,240 in3 |
| Part Number | Seal Bar Length | Chamber Size | Style |
|---|---|---|---|
| GCV-11F | 11" / 300mm | 11.3" x 15.2" x 5.2" | Tabletop |
| GCV-12F | 12.3" / 310mm | 13.8" x 12" x 4.3" | Tabletop |
| GCV-16F | 16" / 400mm | 16.3" x 16.5" x 7" | Tabletop |
| GCV-16LR | 16" / 400mm (x2) | 16.3" x 16.5" x 7" | Tabletop |
| GCV-24LR | 24" / 610mm (x2) | 24.7" x 24.7" x 6.3" | Single Chamber |
| GCV-24LRPL | 24" / 610mm (x2) | 33" x 25.5" x 11.5" | Single Chamber |
| GCVDC-24FB | 24" / 610mm (x4) | 26.3" x 21.5" x 7.5" (x2) | Double Chamber |
| GCVDC-24FB3P | 24" / 610mm (x4) | 26.3" x 21.5" x 7.5" (x2) | Double Chamber |
| CHDV-650B | 25" / 640mm | 25.6" x 31.5" x 17.7" | Vertical Chamber |
