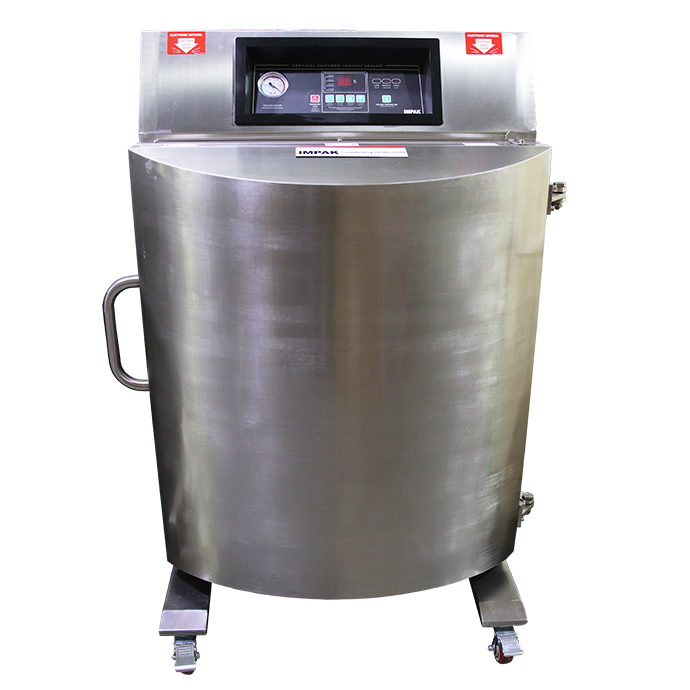

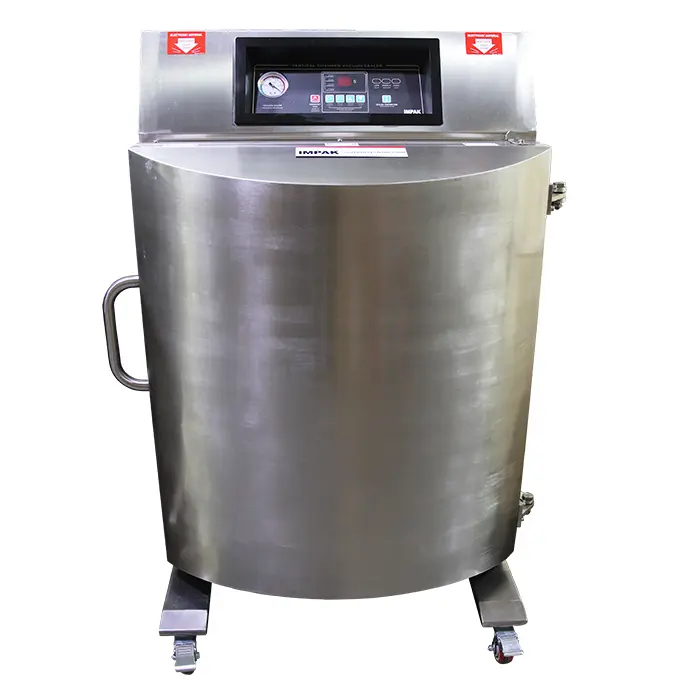

• silver vertical chamber sealer with door latched closed

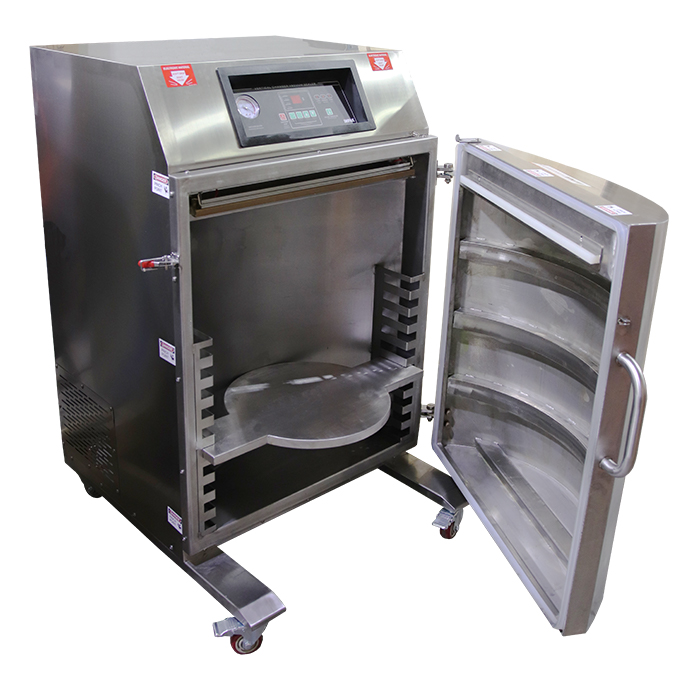

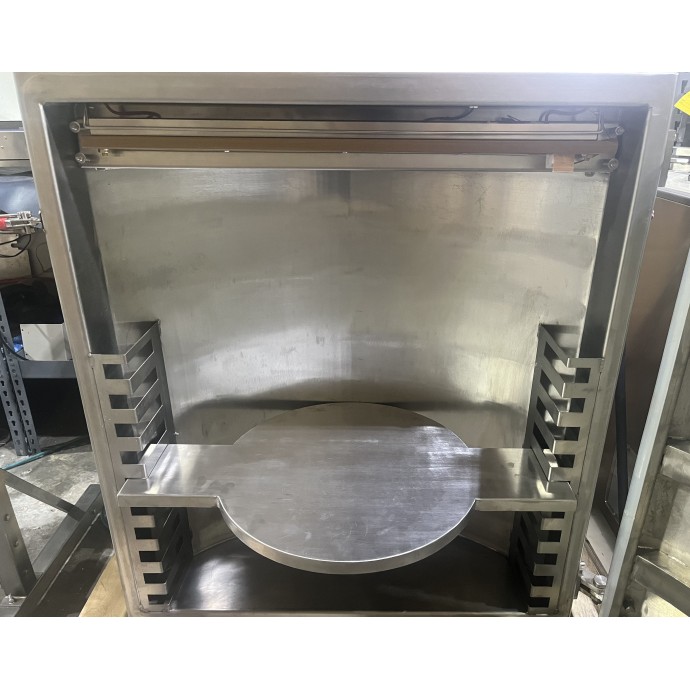

  • chamber bottom tray in middle rack

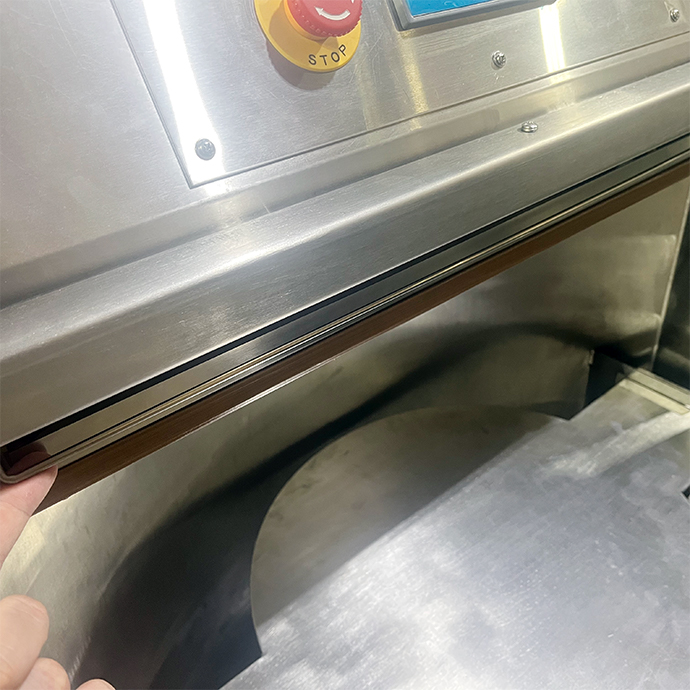

  • top clip bar being displayed

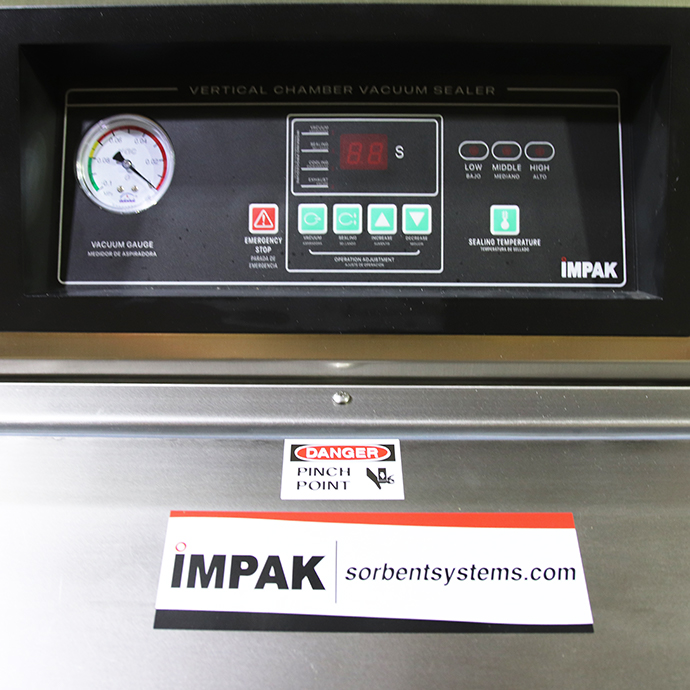

  • control panel of vertical chamber sealer
  • vacuum sealed food
  • vacuum sealed food
  • vacuum sealed food
Total Price:
$6,688.99
Part Number: CHDV-650B

The CHDV-650B is one of the few vertical chamber sealers available. This rugged functional freestanding unit sits on wheels to move around the production area. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in small work spaces. The inner chamber has an adjustable floor/shelf to position the large bag of powders / liquids at the appropriate height for the top 25" seal bar. This unit comes with a hygenic chamber door made from (much like the rest of the body) 304 Stainless Steel for easy cleaning and 2 vacuum pumps capable of pulling 40h/m2 vacuum together.

Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the CHDV-650B one of the best options for hunters/fisherman processing at home, long term food storage, and small prosumer applications where reliability and safety are important.

110-Volt, 25A power supply REQUIRED

IMPAK supplies CHDV-650B sealers for applications including:

  • Sous Vide
  • Pet food packaging
  • Test kitchens
  • Beef jerky packaging
  • Bio labs (Non-validatable applications)
  • Fish & game processing
  • Restaurants
  • Many more

NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags


Material: #304 Stainless Steel CHDV-650B Castle Vak Vertical Chamber Sealer
Use Space: Floor
Size (LxWxH): 38.1" x 37.8" x 51.2" (970x960x1300mm) Weight: 397 lbs (180 kg)
Power: 25 Amps Voltage: 110V
Chamber Type: Single Vertical Lid Material: #304 Stainless Steel
Controller: Digital Lid Shape: Domed Door
Seal Length: 25" (640mm) (x4) Pump Type: Oil
Seal Width: 10mm Pump Capacity: 20h/m2 (x2) = 40h/m2
Seal Bar Position(s): Top Pump Horsepower: -
Seal Bar Distance: N/A Hot Bar Position: Inner
Chamber Size (W x D): 25.6" x 17.7" (650x450mm) Chamber Height: 31.5" (800mm)
Bed Position: Shelf Chamber Volume: ~14,273 in3



CastleVAK Sealers
Click on the Part Number for details
Part Number Seal Bar Length Chamber Size Style
GCV-11F 11" / 300mm 11.3" x 15.2" x 5.2" Tabletop
GCV-12F 12.3" / 310mm 13.8" x 12" x 4.3" Tabletop
GCV-16F 16" / 400mm 16.3" x 16.5" x 7" Tabletop
GCV-16LR 16" / 400mm (x2) 16.3" x 16.5" x 7" Tabletop
GCV-24LR 24" / 610mm (x2) 24.7" x 24.7" x 6.3" Single Chamber
GCV-24LRPL 24" / 610mm (x2) 33" x 25.5" x 11.5" Single Chamber
GCVDC-24FB 24" / 610mm (x4) 26.3" x 21.5" x 7.5" (x2) Double Chamber
GCVDC-24FB3P 24" / 610mm (x4) 26.3" x 21.5" x 7.5" (x2) Double Chamber
CHDV-650B 25" / 640mm 25.6" x 31.5" x 17.7" Vertical Chamber
