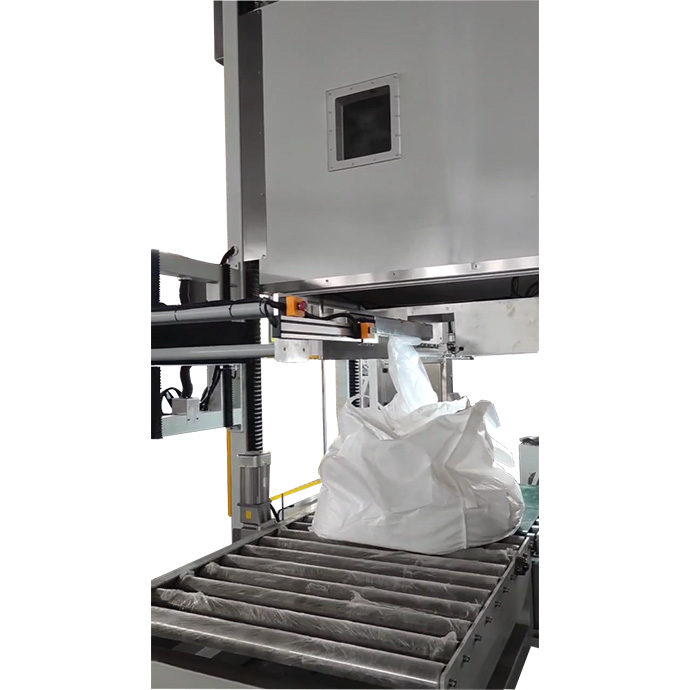

• detail shot of the seal mechanism with white bay underneath

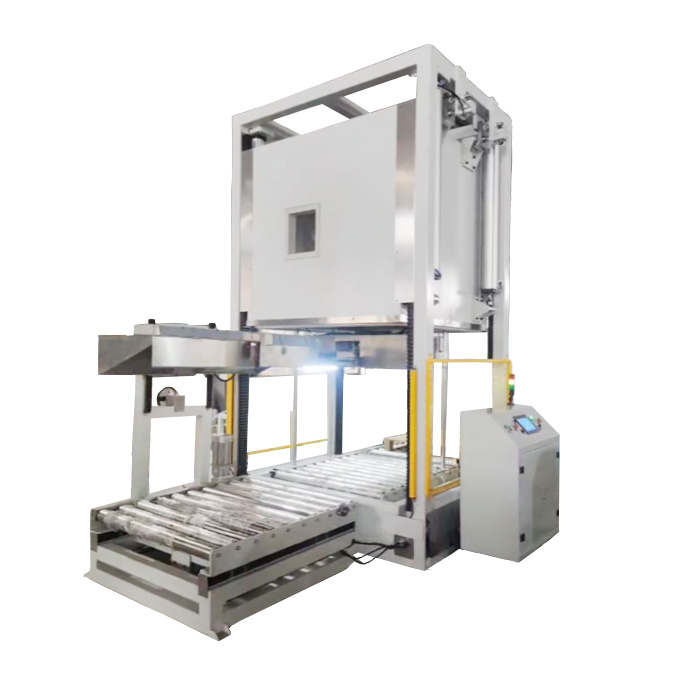

Industrial packaging machine for FIBC liner, or large Gaylord liners. Comes with conveyor to load and ready, along with a desending shround to provide a pressurized vacuum environement - making sure the interior is as oxygen free as possible. Please note this is a very large system, and will require some planning before purchase and installation. Please contact our Sales Team for more information.



Length 4850mm x Width 4550mm x Height 4050mm
Weight - about 6000 KGS
Voltage - 380V-50HZ5
Power - 6.5KW
Effective sealing length - 800mm
Seal width - 10mm
Adjustable height from the sealing bar to the conveyer roller - 800 to 1400mm
Seal pattern - double seal lines, space in between is 15mm
Heat method - impulse heat
Vacuum efficiency - 202CBM/hr
Vacuum level : -80kpa
Air pressure: 0.6—0.8MPa
Filter finesse - 1 micron
