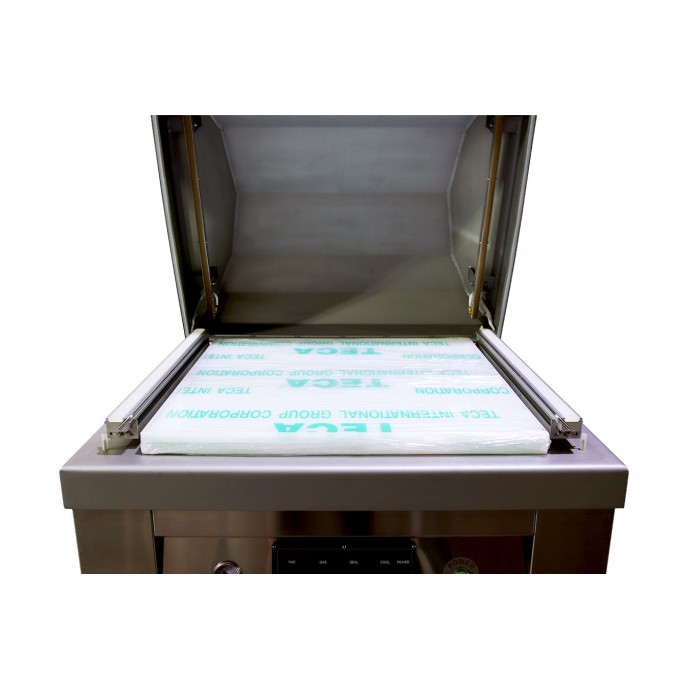

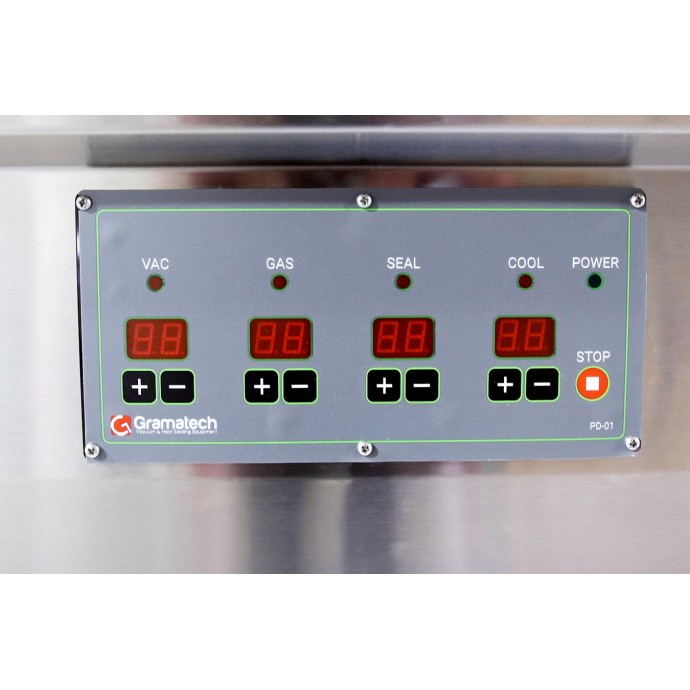

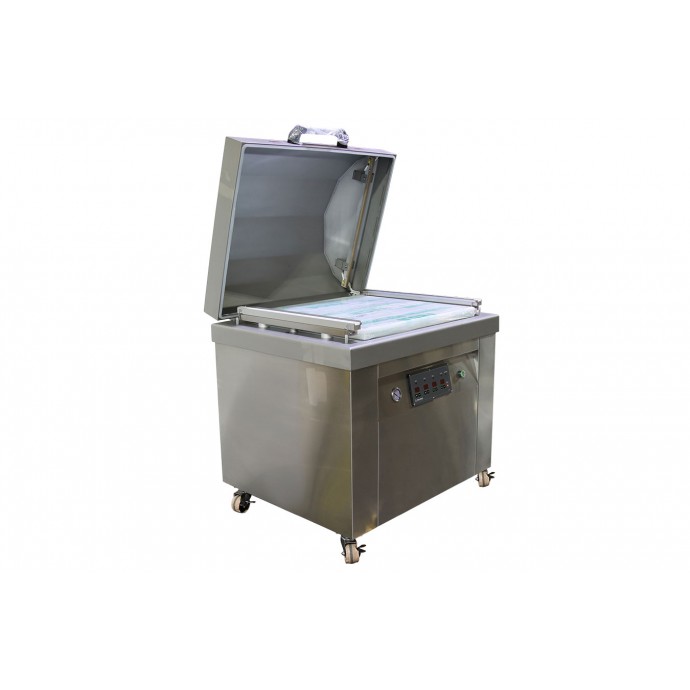

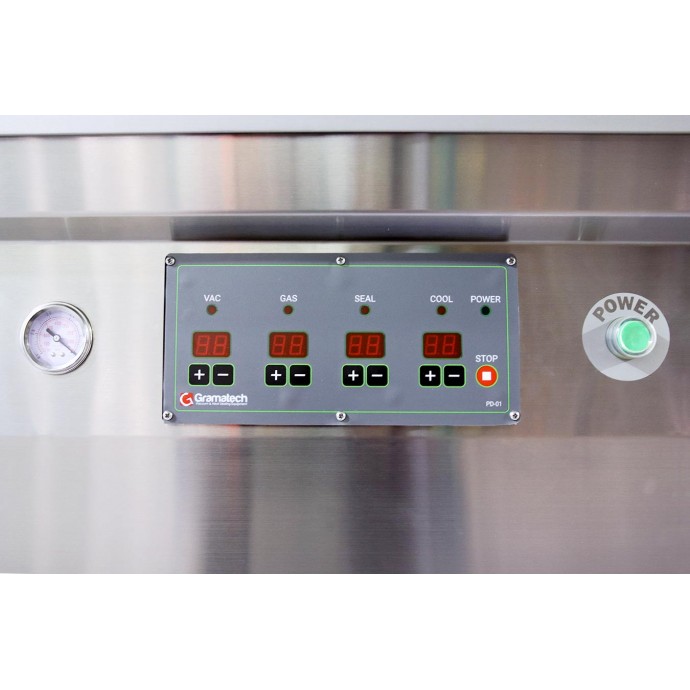

IMPAK’s model CHSC-680LR is truly a heavy-duty industrial vacuum chamber sealing machine. With features like all # 304 stainless steel construction, a flat working deck for easy cleaning and a robust Busch RA0040 (2HP) vacuum pump as standard the CHSC-680LR is ready to meet your heavy duty vacuum packaging needs. As with the entire IMPAK line of vacuum chamber sealing machines the CHSC-680LR has been ETL tested, certified and labeled as meeting UL and CSA safety standards as well as NSF sanitary standards. This means the CHSC-680LR is ready to go to work in any inspected facility. Available options include larger vacuum pumps, particulate and moisture trap filters, to protect the vacuum system, per knife bag trim systems and many more. The standard PD-01 basic digital control panel allows the operator to set vacuum time, gas flush time (if your machine is equipped with the optional gas flush system), seal time and cooling time at the touch of a button and with accuracy due to the digital read out. If your applications require more control features including recipe memory the optional PNC-01 microprocessor control panel may be just what you need. The PNC-01 allow the vacuum to be controlled via vacuum pressure or by time and allows multi-stage vacuum / gas flush operations (optional gas flush system required) just to name a few of the capabilities of this control system. For applications that require a temperature controlled seal system and / or a fully validate able control system the CHSC-680LR can be equipped with our Precise Seal PLC/HMI based control system. This system allows for the seal to be controlled via temperature or time as well as allowing for the vacuum to by very precisely controlled via vacuum pressure. Optional calibration ports are also available allowing a 3rd party calibration lab to easily calibrate and certify your machine. Learn more about the PD-01 and PNC-01 Microprocessor System.
CHSC-680LR machines have sold for the following vacuum sealing applications:
OPTIONS:
For options, please contact flprocessing@impakcorporation.com
CHSC-680LR Single Chamber Vacuum Sealer Machine
PRE-ORDER ITEM: AVAILABLE IN 2-6 WEEKS LEAD TIME

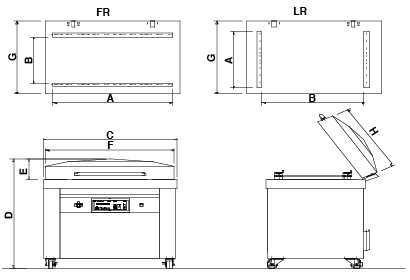

TECHNICAL SPECIFICATIONS
| Chamber size | 35.5" x 26.0" |
| Chamber height | 8.0"/200mm |
| Distance between seal bars | 26/665mm |
| Seal Length | 20.5" |
| Vacuum pump capacity | 40m3/h (2hp) |
| Power/Amp | 1.6kw/7.5A |
| Voltage | 230V/3ph/60Hz |
| Machine weight | 500 lbs. /227 kg |
| Machine size - L x W x H | 35.0" x 26.0" x 39.0" |
| Standard Features: | |
|
|
OPTIONS:
For options, please contact flprocessing@impakcorporation.com
Sterile Air
Two Pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a Sterile Nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.
Nitrogen Generator Kit
The Nitrogen generator produces Nitrogen gas (N2) from a standard compressed air line. This model is designed to generate Nitrogen at purities between 95% and 99.5%.
The Nitrogen generator can be used as a replacement for heavy and bulky Nitrogen gas tanks. Its slick and compact design allows users to integrate this with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about a depleting Nitrogen gas source, as our generator produces Nitrogen from a clean compressed air source.
Sterile Air Kit with Nitrogen Generator
