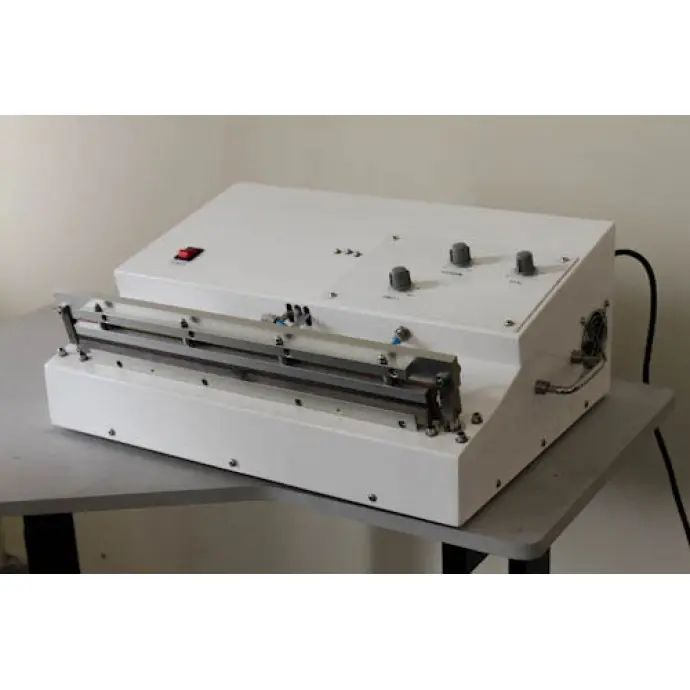

SNG460ED - Seal N Go 18" industrial Impulse sealer (4-5 days lead time)

SNG460ED - Seal N Go 18" industrial Impulse sealer (4-5 days lead time)

Total Price:
$1,789.80

Part Number: SNG460ED

Available Options

Spare Parts: Spare Parts Kit (discount with machine purchase) | SPK16 (+$194.50)

Description Ideal Bags

This unit requires a separate compressed air source capable of providing 80PSI of clean, dry air

ALLOW 4-5 DAYS LEAD TIME

18" maximum seal length

Heavy duty powder coated frame(also available in stainless steel)

Analog heat and cool timers

10mm top and bottom heating elements

Foot pedal activated

Exhaust port and muffler

Illuminated On/Off switch

Handles for portability

Fuse protected

110v/60Hz (also available in 220v/50Hz)

Warranty: One year parts and labor not including consumables

OPTIONS: Spare Parts Kit (P/N 46XSPPTKT)

Tension Spring, Heating Element Fix Assembly, Adhesive Tape, Silicon Sealing Bar, PTFE Belt with Adhesive, Heating Element, Exhaust Port & Muffler

This sealer is also great for sealing mylar bags.

See mylar bags tables

Vacuum Bags with ZipSeal

Dimensions	Part Number	Color	Material	Case Quantity	Price ($) per Case
2.0" x 3.0"	0203PM56OZETN	Clear	PAKPM56 - 5.6 mil	2000	196.40
4.0" x 6.0"	V3R0406TEHH	Clear	PAKVAC3.0 - 3.0 mil	1000	57.75
5.75" x 10.25"	V3Z5751025	Clear	PAKVAC3.0 - 3.0 mil	1000	157.50
6.0" x 6.5"	PM406065ZTE	Clear	PAKPM4 - 3.0 mil	1000	105.60
6.0" x 10.0"	V3Z0610ZTERHH	Clear	4.0 mil Nylon/Poly	1000	126.25
7.5" x 12.75"	V5Z0751275ZTERHH	Clear	PAKVAC5.0 - 5.0 mil	1000	261.40
8.0" x 10.0"	05MP0810OZE	Clear	PAKPM56 - 5.6 mil	500	231.00
8.0" x 12.0"	05MP0812OZE	Clear	PAKPM56 - 5.6 mil	500	206.25
8.0" x 12.0"	V3Z0812	Clear	PAKVAC3.0 - 3.0 mil	1000	117.25
13.0" x 18.0"	05MP1318OZE	Clear	PAKPM56 - 5.6 mil	250	247.50
20.0" x 24.0"	05MP2024OZE	Clear	PAKPM56 - 5.6 mil	100	277.20

Vacuum Bags (w/o zipseal)

Size	Part Number	Material	Description	Case Quantity	Price ($) for 1 Case
2.5" x 6.0"	025PM406ODT	3.0 mil	Clear bag	1000	57.20
2.5" x 10.0"	V3R02510BTN	3.0 mil	Clear bag	1000	59.20
5.0" x 7.0"	V3R0507	3.0 mil	Clear bag	1000	57.50
6.0" x 8.0"	V3R0608	3.0 mil	Clear bag	1000	58.15
6.0" x 10.0"	V3R0610	3.0 mil	Clear bag	1000	67.10
6.0" X 12.0"	V4RB0612	4.0 mil	Clear bag	1000	214.50
6.25" x 9.25"	V45R0625FS0925	4.5 mil	bag with fin seal	1000	137.50
7.0" x 8.0"	V3R0708	3.0 mil	Clear bag	1000	75.60
7.5" x 9.35"	V5R0750925	5.0 mil	Clear bag	1000	176.40
8.0" x 10.0"	V3R0810	3.0 mil	Clear bag	1000	98.40
8.0" x 12.0"	V3R0812	3.0 mil	Clear bag	1000	87.95
10.0" x 13.0"	V3R1013	3.0 mil	Clear bag	1000	122.85
10.0" x 15.0"	V3R1015	3.0 mil	Clear bag	1000	112.25
10.0" x 22.0"	V3R1022	3.0 mil	Clear bag	500	110.00
10.0" x 24.0"	V4R1024OD	4.0 mil	Clear bag	500	115.50
12.0" x 12.0"	V5R1212	5.0 mil	Clear bag	500	172.50
12.0" x 14.0"	V3R1214	3.0 mil	Clear bag	500	123.75
12.0" x 20.0"	V3R1220	3.0 mil	Clear bag	500	143.50
16.0" x 16.0"	V5R1616	5.0 mil	Clear bag	250	157.50
16.0" x 24.0"	V3R1624	3.0 mil	Clear bag	500	167.50
18.0" x 30.0"	V3R1830	3.0 mil	Clear bag	250	151.25
20.0" x 24.0"	V5R202375	5.0 mil	Clear bag	250	295.00
24.0" x 48.0"	V3R2448	3.0 mil	Clear bag	250	355.00
30.0" x 26.0"	V5R3026	5.0 mil	Clear bag	100	187.00
48.0" x 48.0"	V3R4848	3.0 mil	Clear bag	10	22.10

Table for Special Surface Channel Bags

Size	Part Number	Material	Case Quantity	Price ($) for 1 Case
2.5" x 10"	SS02510N35	3.5 mil	1000	80.10
4" x 6"	SSV50406	5 mil	1000	150.05
6" x 8"	SSV50608	5 mil	1000	160.45
6" x 12"	SS0612N35	3.5 mil	500	70.00
6" x 12"	SSV4R0612	4 mil	1000	192.50
6" x 16"	SS0616N50	5 mil	500	150.35
8" x 12"	SSV4R0812	4.0 mil	500	113.95
10" x 14"	CH1014	3.5 mil	300	81.10
10" x 14"	SSV4R1014	4 mil	500	182.75
12" x 16"	SS1216	3.5 mil	500	180.95
16" x 26"	CH1626	4 mil	200	218.40
