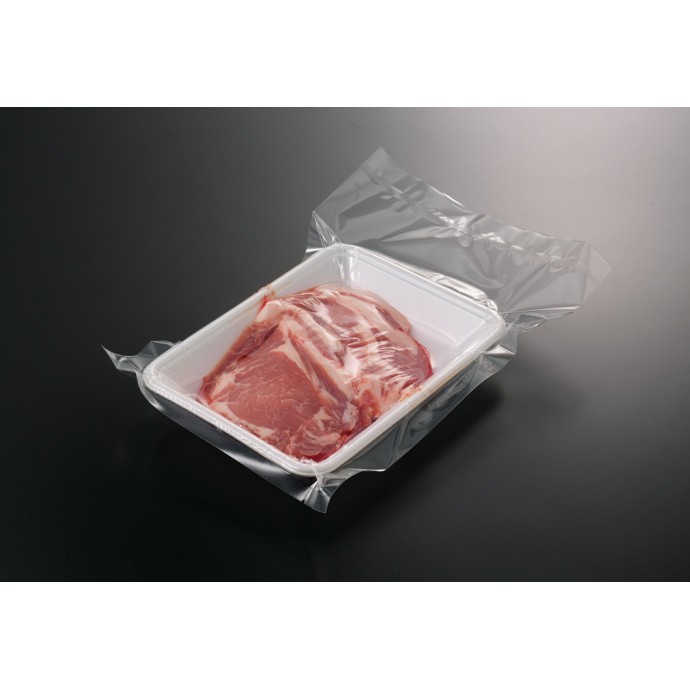

NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags

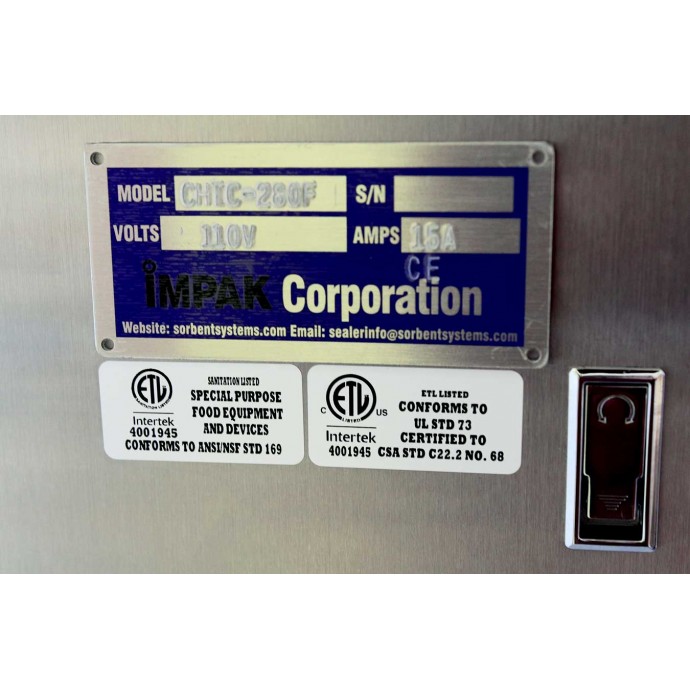

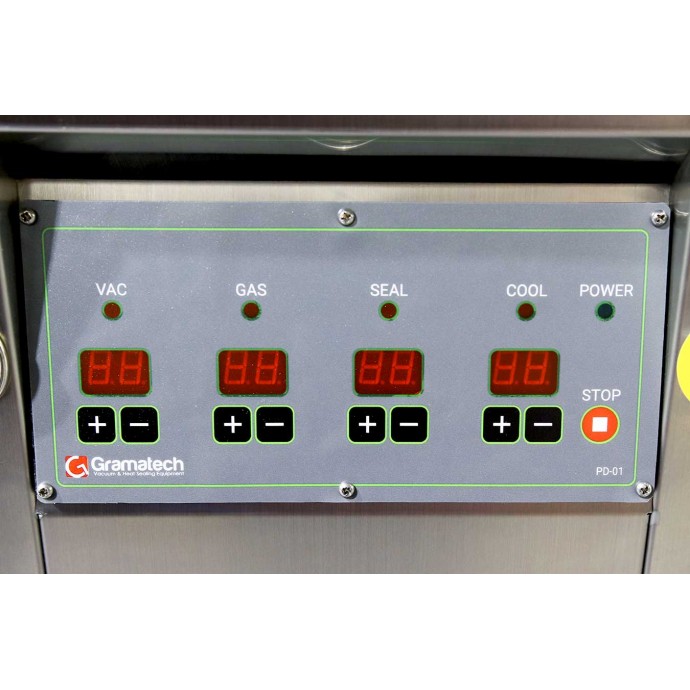

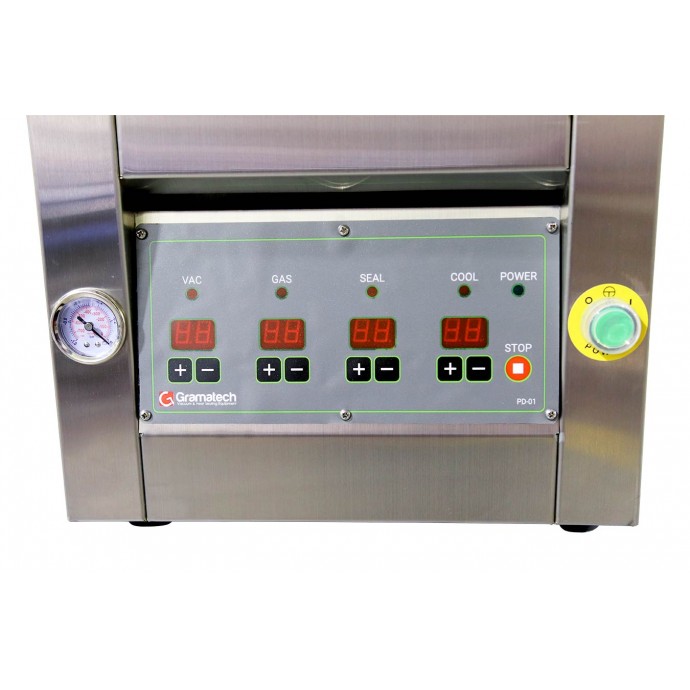

The model CHTC-280F may be the smallest of IMPAK's table top chamber vacuum sealers but it is engineered and manufactured to be an industrial quality machine. Both the housing and the vacuum cavity are constructed using all # 304 stainless steel as part of meeting the stringent NSF standards. As with all of the Impak's chamber machines the CHTC-280F also meets UL and CSA safety standards. Meeting the UL, CSA and NSF standards means these machines meet all the requirements for use in restaurants, delis, test kitchens and any other establishment that is inspected by the local or state authorities. The heart of any vacuum chamber machine is the vacuum pump and IMPAK utilizes only Busch vacuum pumps in all models including the CHTC-280F. The CHTC-280F is not only a rugged unit but an easy to operate machine as well. The standard PD-01 control panel allows you to select the vacuum time, gas flush time (if the unit is equipped with the optional gas flush system), seal time and cooling time by simply touching either the up arrow or the down arrow and the digital readout provides total accuracy. If your application can be enhanced by using preset programs, multi-stage gas flush or soft air venting then you can upgrade a CHTC-280F to the PNC-01 microprocessor control panel that allow for all of these features and many more. Learn more about the PD-01 and PNC-01 Microprocessor System.
IMPAK has supplied CHTC-280F machines for the following applications:
OPTIONS:
For options, please contact flprocessing@impakcorporation.com

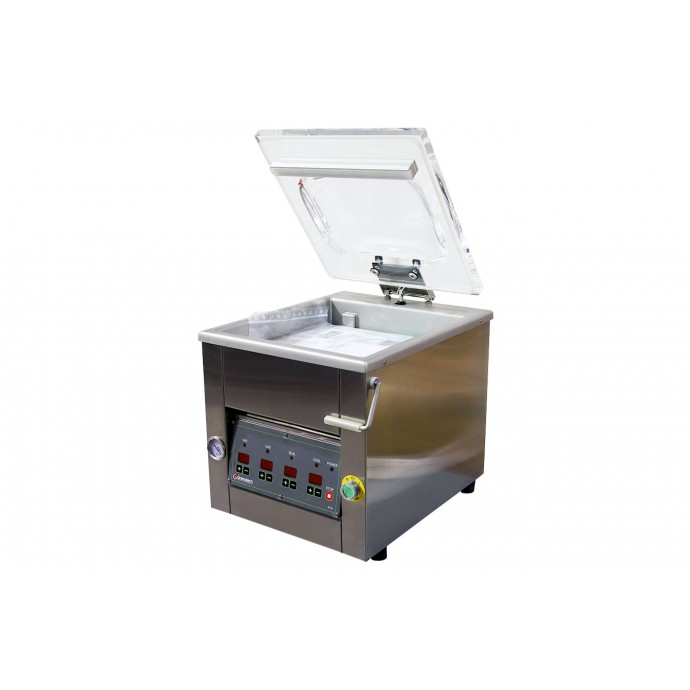

CHTC-280F Chamber Vacuum Sealer
TECHNICAL SPECIFICATIONS:

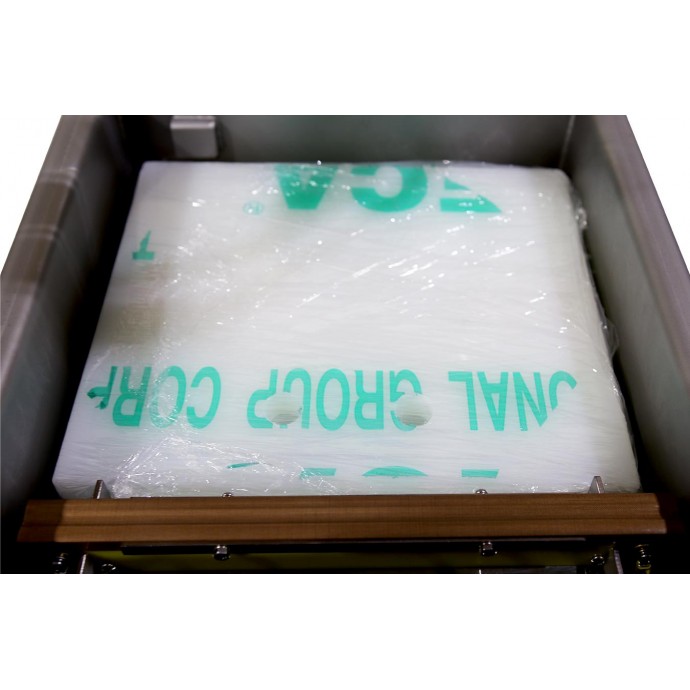

| Chamber size | 14.1" x 15.1" |
| Chamber depth | 2" + 3.7"/145mm |
| Seal bar length | 11.8"/300mm |
| Vacuum pump capacity | 6m3/h (1/2 hp/0.4kw) |
| Power/Amp | 0.6kw/4.4A |
| Voltage | 110V/1PH/60Hz/12A |
| Machine weight | 115 lbs. / 52 kg |
| Machine size - L x W x H | 15" x 18" x 16" |
| Standard Features: | |
|
|
OPTIONS:
For options, please contact flprocessing@impakcorporation.com

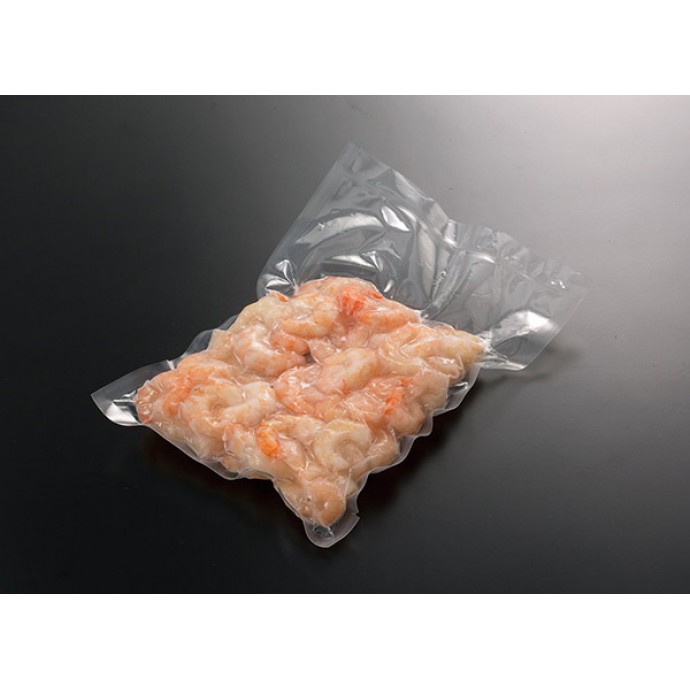

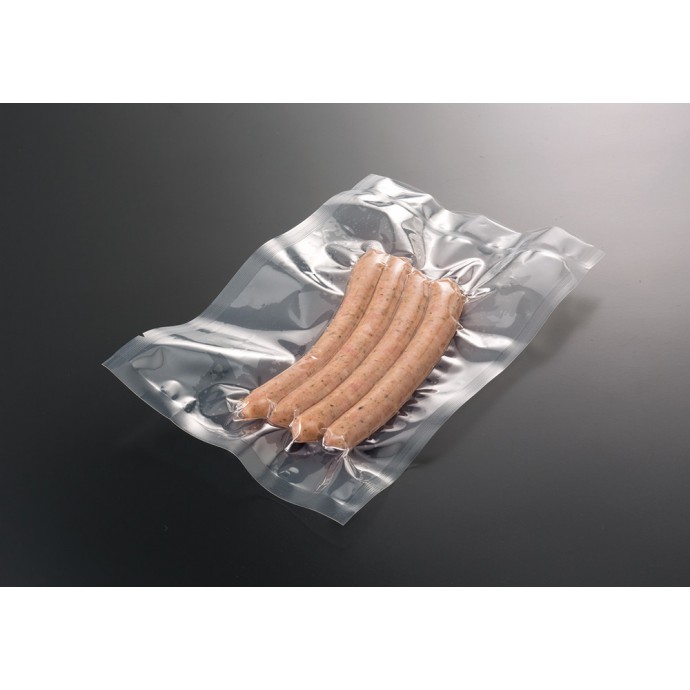

Need Vacuum Bags? IMPAK recommends our 8.625" x 12.875" O.D. Vacuum Bags. Learn more here.
Sterile Air
Two Pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a Sterile Nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.
Nitrogen Generator Kit
The Nitrogen generator produces Nitrogen gas (N2) from a standard compressed air line. This model is designed to generate Nitrogen at purities between 95% and 99.5%.
The Nitrogen generator can be used as a replacement for heavy and bulky Nitrogen gas tanks. Its slick and compact design allows users to integrate this with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about a depleting Nitrogen gas source, as our generator produces Nitrogen from a clean compressed air source.
Sterile Air Kit with Nitrogen Generator
