Contact a sales representative before purchasing to check for cut-wire material compatibility flprocessing@impakcorporation.com
NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags
The model CHTC-310F is the mediuim size option in our CORE Edition Chamber Sealers. Built with simple efficiency in mind, the CORE line was designed to develop a chamber sealer body that can better fit in small work spaces. The CHTC-310F is not only a afforable option, but an easy to operate machine as well. The standard PD-01 control panel allows you to select the vacuum time, gas flush time (if the unit is equipped with the optional gas flush system), seal time and cooling time by simply touching either the up arrow or the down arrow and the digital readout provides total accuracy. If your application can be enhanced by using preset programs, multi-stage gas flush or soft air venting then you can upgrade a CHTC-310F to a Siemen's/Allen Bradley control panel that allow for all of these features and many more.
This Unit comes included wit: Spare Heating Element, Gasket, teflon wrap and bottle of oil (if pump comes empty).
IMPAK is supplying CHTC-310F machines for the following applications:
- Sous Vide
- Pet food packaging
- Test kitchens
- Beef jerky packaging
- Bio test labs ( Non validatable applications)
- Many more

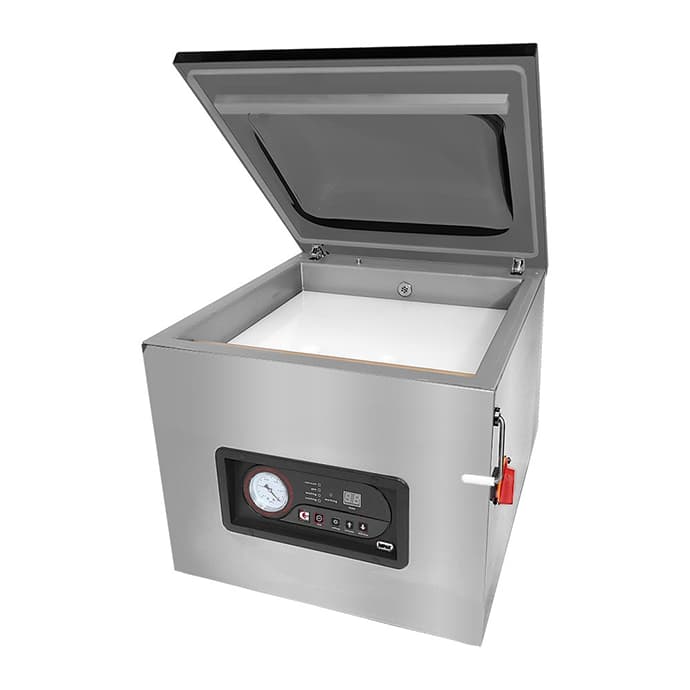

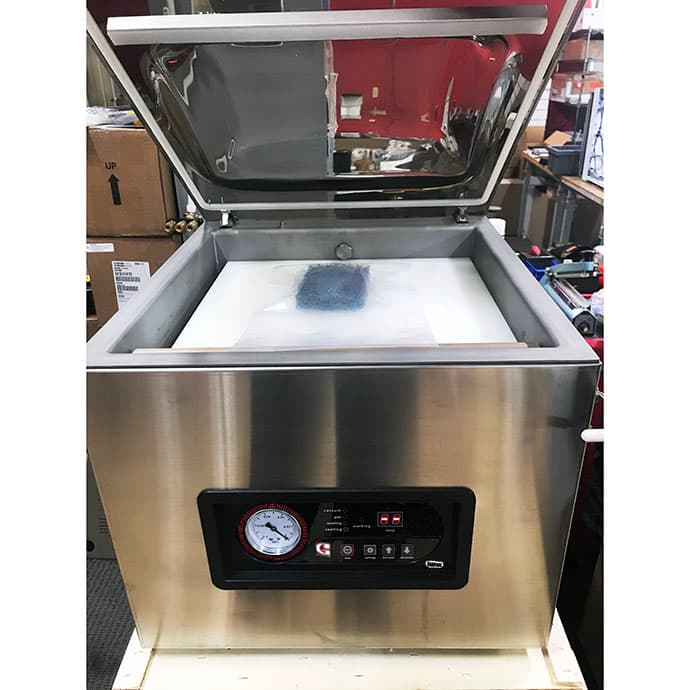

CHTC-310F CORE Chamber Vacuum Sealer
TECHNICAL SPECIFICATIONS:
| Chamber size | 16.3" x 16.5" |
| Chamber depth | 7" |
| Seal bar length | 16"/400mm |
| Vacuum pump capacity | 20m3/h (1 1/4 hp) |
| Power/Amp | 14 Amps Max |
| Voltage | 110V/1PH/60Hz |
| Machine weight | 171 lbs. / 77.5 kg |
| Machine size - L x W x H | 22" x 20" x 20" |
