The model CHDC-610F is the large dual chamber option in our CORE Edition Chamber Sealers. Built with simple efficiency in mind, the CORE line was designed to develop a chamber sealer body that can better fit in small work spaces. The CHDC-610F is not only a afforable option, but an easy to operate machine as well. The standard PD-01 control panel allows you to select the vacuum time, gas flush time (if the unit is equipped with the optional gas flush system), seal time and cooling time by simply touching either the up arrow or the down arrow and the digital readout provides total accuracy. If your application can be enhanced by using preset programs, multi-stage gas flush or soft air venting then you can upgrade a CHDC-610F to a Siemen's/Allen Bradley control panel that allow for all of these features and many more.
Dims: 57.5" x 27.5" x 38.5
220V ONLY
IMPAK has supplied CHDC-610F machines for the following applications:
- Sous Vide
- Pet food packaging
- Test kitchens
- Beef jerky packaging
- Bio test labs ( Non validatable applications)
- Many more
Comes with 4 spare heating elements and teflon wraps.

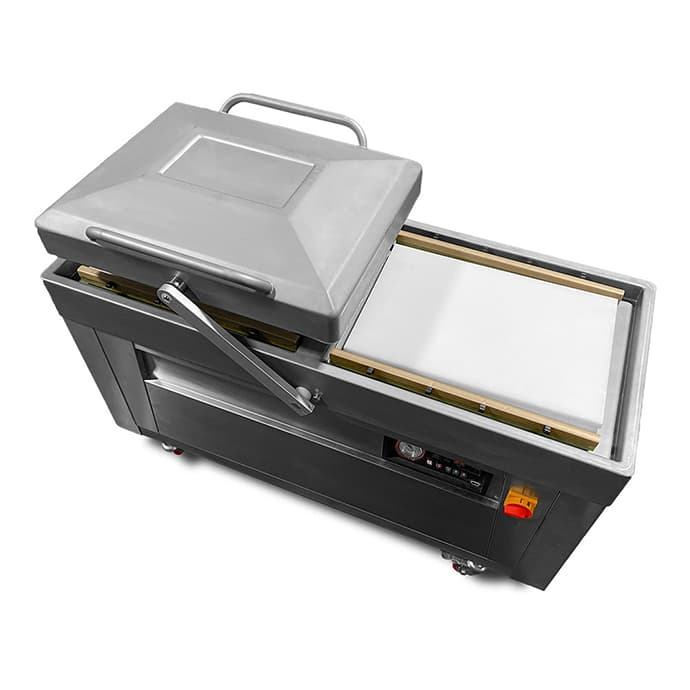

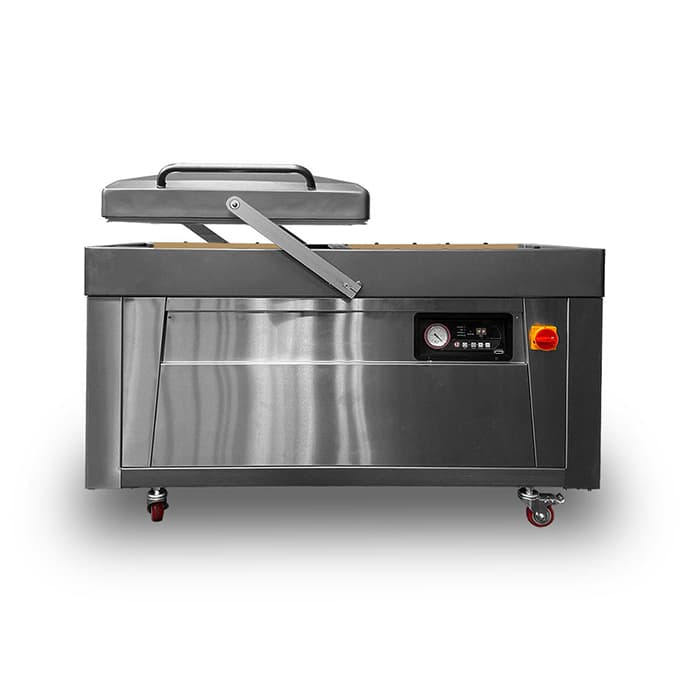

CHDC-610F CORE Chamber Vacuum Sealer
TECHNICAL SPECIFICATIONS:
| Chamber size | 26.3" x 21.5" |
| Chamber depth | 7.5" |
| Seal bar length | 24"/610mm (x4) |
| Vacuum pump capacity | 48m3/h |
| Power/Amp | 16 Amps Max |
| Voltage | 220V/1PH/60Hz |
| Machine weight | 540 lbs. / 245 kg |
| Machine size - L x W x H | 25" x 58" x 32" |
