About:

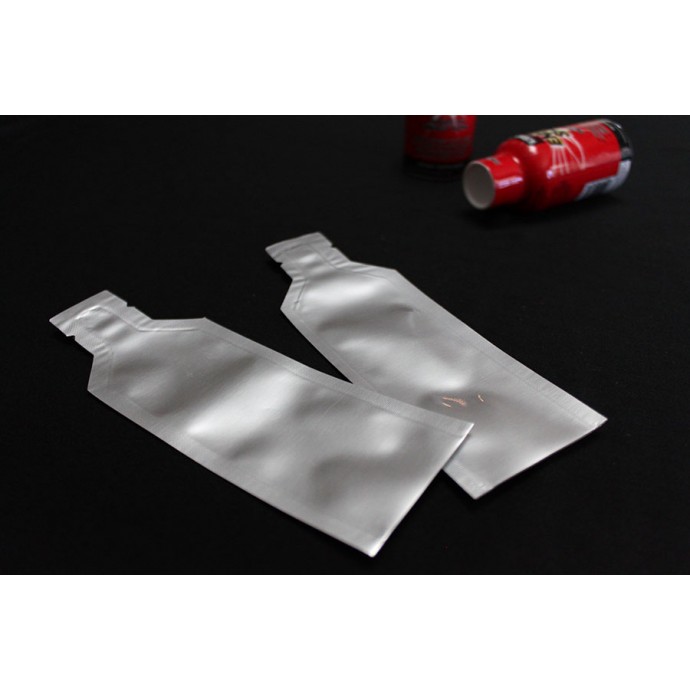

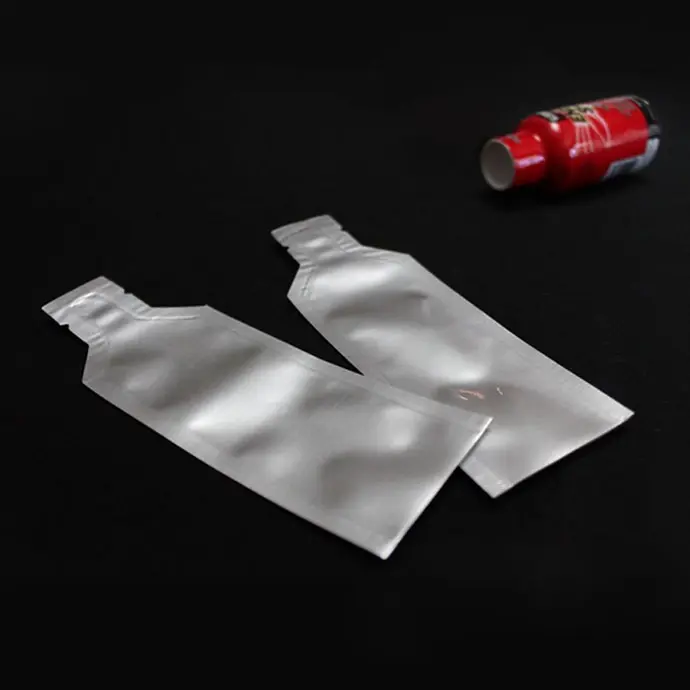

2.0” x 5.5” PAKVF4PCA Silver Dispenser Tip Style Pouch with Tear Notch;
Tear notch; Open bottom. Requires seal. Hot-fill ready.
Great for liquids, lotion samples, energy gel and other small volume applications where a dispenser feature is desired. Food-grade material, hot fill compatible.
Ideal for dispensing liquids, gels, pastes.
Liquid and gel dispenser pouches offer a funneled tip for better precision compared to a square pouch. Tear notched sides make the pouch easy to open. This is a great grab-and-go format that we offer in a stock size, with options for modification in a custom order.
Ready for aggressive chemicals & hot fill
Our dispenser tip pouches are designed to withstand high temperatures (up to 250° F for 55 minutes) for hot fill. They are also made to safely package aggressive chemical compounds such as petroleum distillate, epoxy, essential oils, etc.
Quantity:
5,000/case
Fill Format:
Fill through bottom. REQUIRES SEALER.
Material: PAKVF4PCA, 4.0 mil
PAKVF4PCA is an ultra-high barrier foil laminated structure with high performance adhesives. The proprietary sealant layer is designed to withstand the effect of aggresive compounds, food products, or chemicals, including solvents. This material has a high temperature inner-layer and is suitable for retort applications, hot-fill food processing, and autoclavable medical devices.
Also known as:
liquid pack, gel pack, gel pouch, liquid pouch, squeeze pouch
Learn How Our Dispenser Tip Evolved with Our Customer: The Muir Energy Gel Story
Purchase Above, or go back to Uniquely Shaped Bags
Need to test your pouch before you purchase? Samples available by request.
PAKVF4PCA Spec Sheet
PAKVF4PCA is an ultra-high barrier foil laminated structure with high performance adhesives. The proprietary sealant layer is designed to withstand the effect of aggresive compounds, food products or chemicals, including solvents. This material, has a high temperature inner-layer and is suitable for retort applications, hot-fill food processing and autoclavable medical devices.
PHYSICAL PROPERTIES: (48gaPET/60 ga Biaxially Oriented Nylon [BON]/.00035 Aluminum Foil/3.25 mils high temperature cast polypropylene)
| TOTAL THICKNESS: | 4.0 mil |
| WATERVAPOR TRANSMISSION RATE (FED-01) | 0.0006 gms/100sq.in./24 hrs. |
| O2 TRANSMISSION RATE (MOCON) | 0.0006 cc/100sq.in./24 hrs. |
| TENSILE STRENGTH (FTMS 191A-5102) | 4721 psi |
| TEAR (ASTM-689) | MD 700 gms. XMD 1200 gms. |
| SEAL STRENGTH (ASTM-D-882) 475oF;26psi;1sec | 12 lbs/in. |
| PUNCTURE STRENGTH (FED TM2065) | < 23 lbs |
IMPAK CORPORATION makes no warranty, expressed or implied, as to the suitability of these materials for any specific use. The values shown above were developed from random samples taken from production material. We believe them to be typical for the product. Actual values may vary somewhat from those depicted here. Customers should determine product suitability based upon their own internal criteria.
Industries and Applications:
- Energy Gel Packet
- Liquid Pouch for Essential Oils
- Spread and Butter Squeeze Packet
- Epoxy Gel Pack
- Paste / Glue Squeeze Packet
- Chemical Compounds Liquid Pack
An Energy Gel Pouch that Combines Source Reduction & Convenience
Muir Energy “keeps it simple” with their limited ingredient energy gels, and they approached packaging the same way.
The idea was to keep the packaging as simple as the contents. IMPAK’s gel pouch offered source reduction and convenience in the form of a dispenser tip pouch that uses less material than alternatives, and is ready to “grab and go.”
Solutions for Every Stage:
IMPAK helped Muir Energy with dispenser tip pouches that developed with the brand’s changing needs; First, a silver “stock” pouch that allowed Muir Energy to test their product in a dispenser tip pouch. Next, a custom color pouch that better represented their brand and allowed for easy sticker labeling. Last, a custom printed gel pouch that was ready to fill and required no labels.

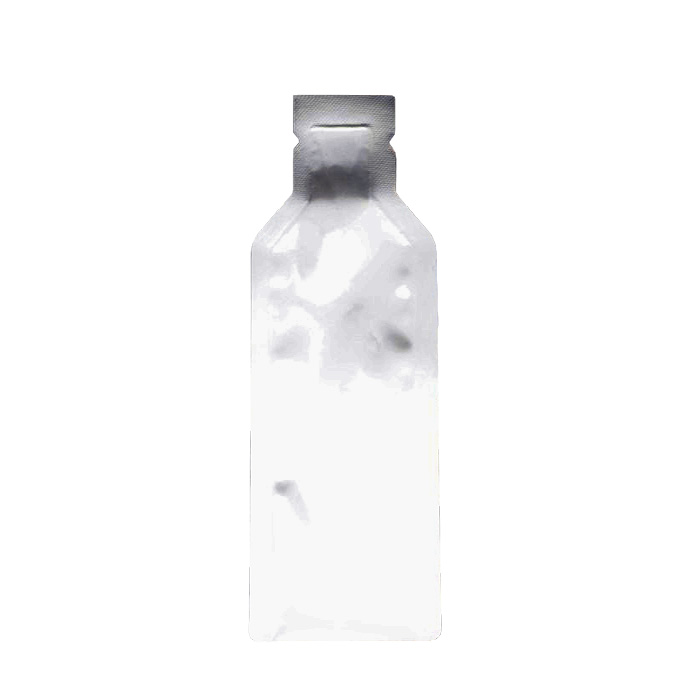

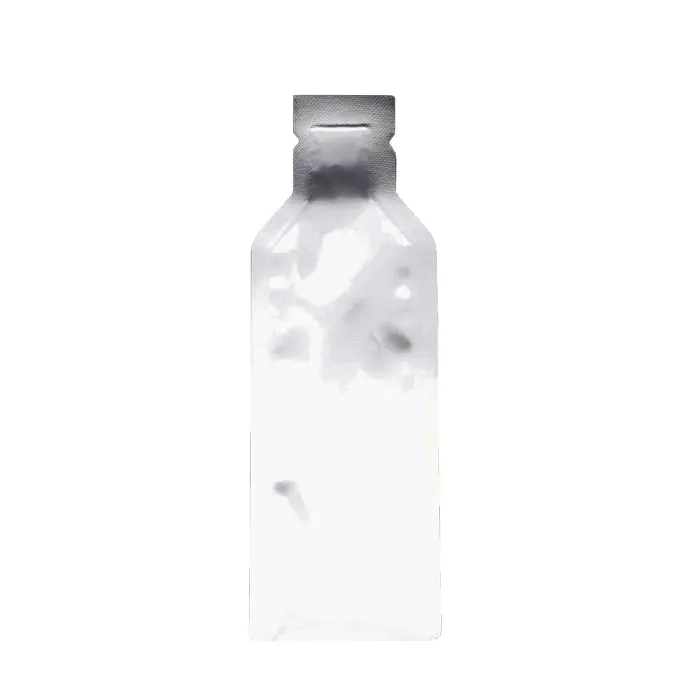

1. Stock Silver Pouch
- Intro to product line: stock silver packages: These ready-to-order liquid pouches were an ideal way to test product package, and establish a filling process. (Figure 1)
2. Custom Size & Color Pouches:
- Brand Identity through color
- New size for 30g of gel (IMPAK custom-made this size which required tooling for this uniquely shaped heat seal)
- Flexibility with label application: All flavors use the same package, and are differentiated by their labels. These dispenser tip squeeze packets allow Muir Energy to test many different flavors using the same package; if a flavor is discontinued, no packages go to waste. (Figure 2)
3. Custom Printed Pouch:
- Professional, high-end look with brand imagery & logo
- Ready-to fill, no labeling required
The custom gel pouch was the fastest, most efficient solution. The new design increases perceived product value. (Figure 3)
4. Next Steps for Muir Energy gel: Stand Up Pouches?
Stand up gel pouches offer the convenience and quality of our liquid pouch, in an ideal retail form that stands on shelves. Custom sizes, shapes, colors, and even reclosable caps are other options to explore.
See our uniquely shaped bags here.
Get samples and custom order quotes from our team here.
