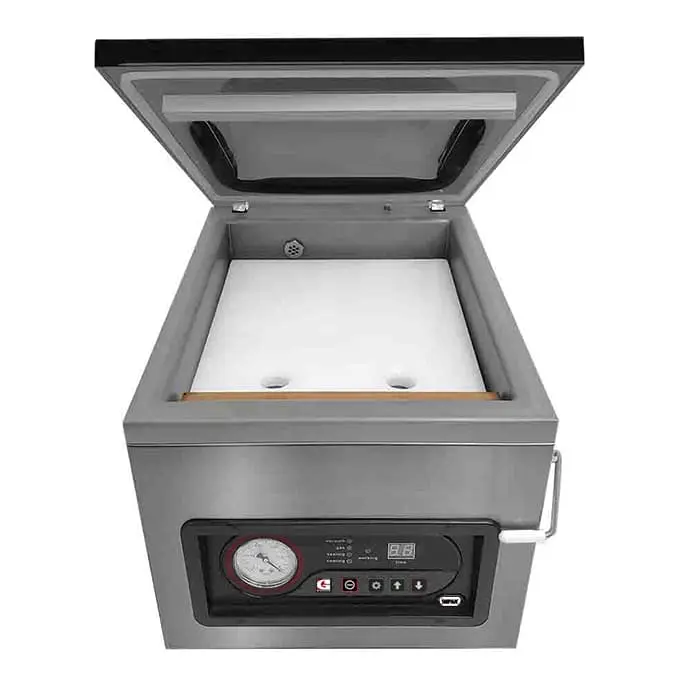

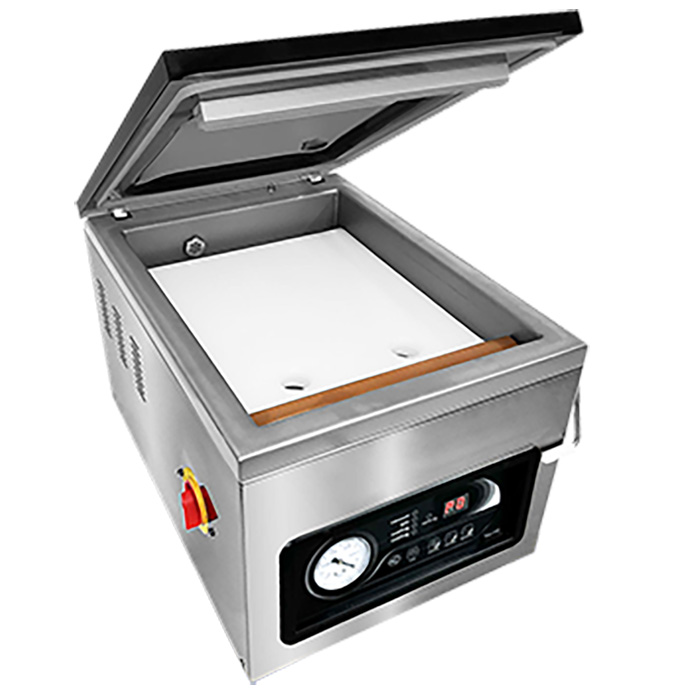

The GCV-11F is the smallest of our Castle Vak Chamber Sealers. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in small work spaces. Each comes with a thick transparent acrylic lid to see the process when sealing, and a Vane Oil lubricated vacuum pump to deliver a 8m3/h flow rate.
Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The GCV-11F's tall chamber gives enough room to efficiently seal mason jars as well - fit up to four 16 ounce (473ml) regular mouth Ball mason jars, or nine 8 ounce (236ml) regular mouth Ball mason jars in the vacuum chamber. The power and size make the GCV-11F one of the best options for hunters/fisherman processing at home, long term food storage, and small prosumer applications where reliability and safety are important.
IMPAK supplies GCV-11F sealers for applications including:
- Sous Vide
- Pet food packaging
- Test kitchens
- Beef jerky packaging
- Bio test labs (Non-validatable applications)
- Many more
NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags
| Material: | #304 Stainless Steel | GCV-11F Castle Vak Chamber Sealer | |
| Use Space: | Table | ||

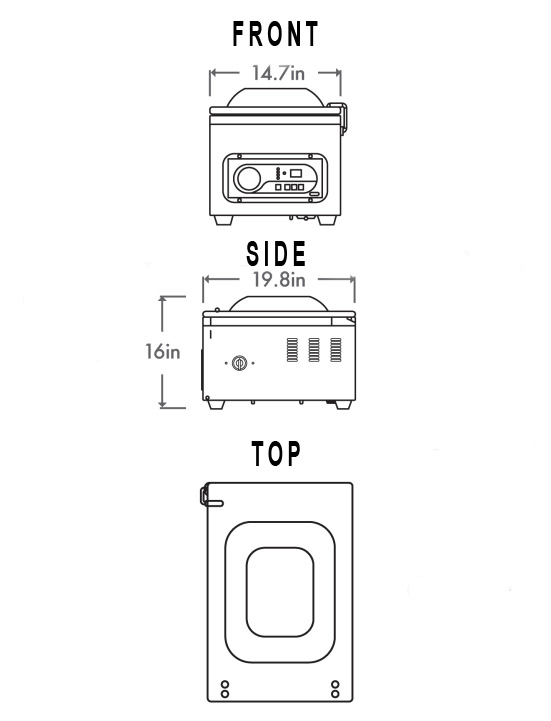

| Size (LxWxH): | 14.7" x 19.8" x 16" (373x503x406mm) | Weight: | 88 lbs (40 kg) |
| Power: | 6 Amps Max | Voltage: | 110V/1PH/60Hz |
| Type: | Single | Lid Material: | Acrylic |
| Controller: | Digital | Lid Shape: | Domed |
| Seal Length: | 11" (280mm) | Pump Type: | Oil |
| Seal Width: | 8mm | Pump Capacity: | 8m3/h |
| Seal Bar Position(s): | Front | Pump Horsepower: | 1/3 hp |
| Seal Bar Distance: | n/a | Hot Bar Position: | Bottom |
| Chamber Size: | 11.3" x 15.2" (287x386mm) | Chamber Depth: | 5.2" (145mm) |
| Bed Position: | Sunken | Chamber Volume: | ~1,220 in3 |

| Part Number | Seal Bar Length | Chamber Size | Style |
|---|---|---|---|
| GCV-11F | 11" / 300mm | 11.3" x 15.2" x 5.2" | Tabletop |
| GCV-12F | 12.3" / 310mm | 13.8" x 12" x 4.3" | Tabletop |
| GCV-16F | 16" / 400mm | 16.3" x 16.5" x 7" | Tabletop |
| GCV-16LR | 16" / 400mm (x2) | 16.3" x 16.5" x 7" | Tabletop |
| GCV-24LR | 24" / 610mm (x2) | 24.7" x 24.7" x 6.3" | Single Chamber |
| GCV-24LRPL | 24" / 610mm (x2) | 33" x 25.5" x 11.5" | Single Chamber |
| GCVDC-24FB | 24" / 610mm (x4) | 26.3" x 21.5" x 7.5" (x2) | Double Chamber |
| GCVDC-24FB3P | 24" / 610mm (x4) | 26.3" x 21.5" x 7.5" (x2) | Double Chamber |
| CHDV-650B | 25" / 640mm | 25.6" x 31.5" x 17.7" | Vertical Chamber |
