Part Number: GCV-16F

NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags

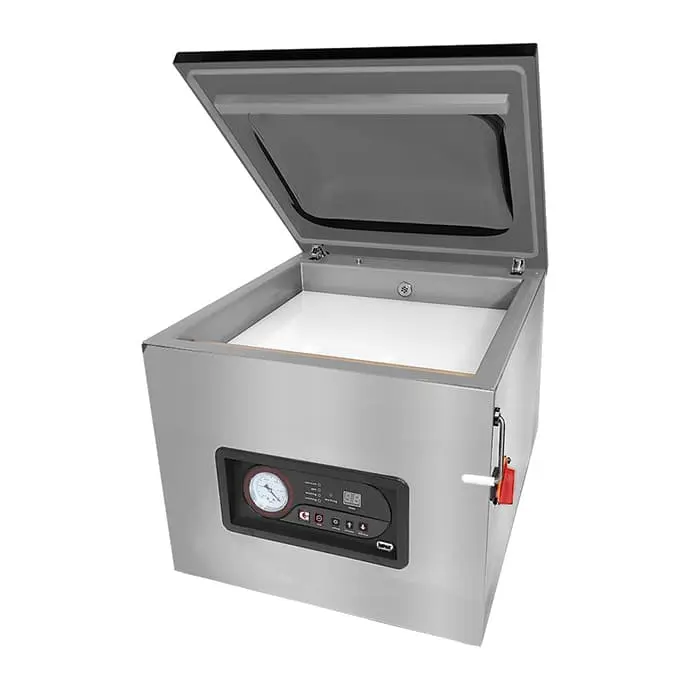

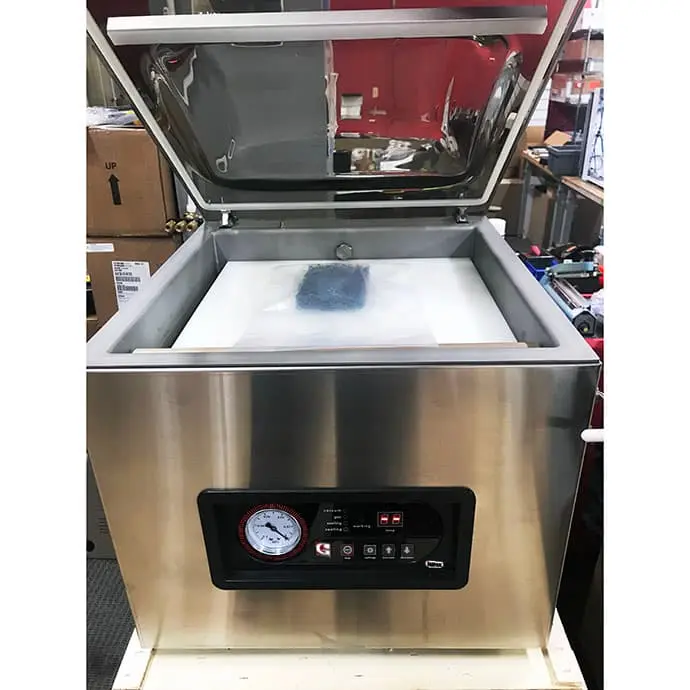

The GCV-16F is one of the larger tabletop units available from our Castle Vak Chamber Sealer line. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in small work spaces. Each comes with a thick Transparent Acrylic Lid to see the process when sealing, and a Vane Oil Lubricated Vacuum Pump to deliver a 20m3/h flow rate. Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the GCV-16F one of the best options for home hunters/fisherman, long term storage, and small prosumer applications where reliability and safety are important.

IMPAK is supplying GCV-16F machines for the following applications:

  • Sous Vide
  • Pet food packaging
  • Test kitchens
  • Beef jerky packaging
  • Bio test labs ( Non validatable applications)
  • Fishing/Game storage
  • Restaurants
  • Many more

GCV-16F Castle Vak Chamber Vacuum Sealer

TECHNICAL SPECIFICATIONS:

Chamber size 16.3" x 16.5"
Chamber depth 7"
Seal bar length 16"/400mm
Seal bar Width 10mm
Vacuum pump capacity 20m3/h (1 1/4 hp)
Power/Amp 14 Amps Max
Voltage 110V/1PH/60Hz
Machine weight 171 lbs. / 77.5 kg
Machine size - L x W x H 22" x 20" x 20"
