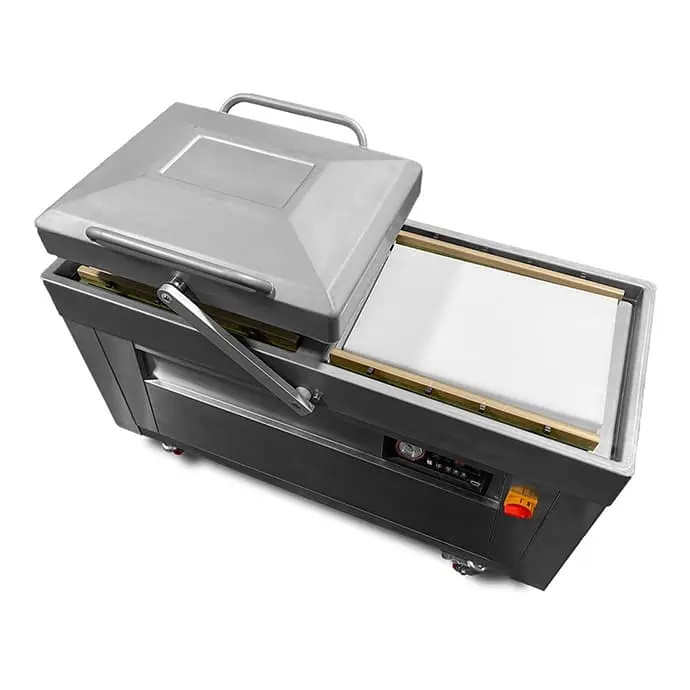

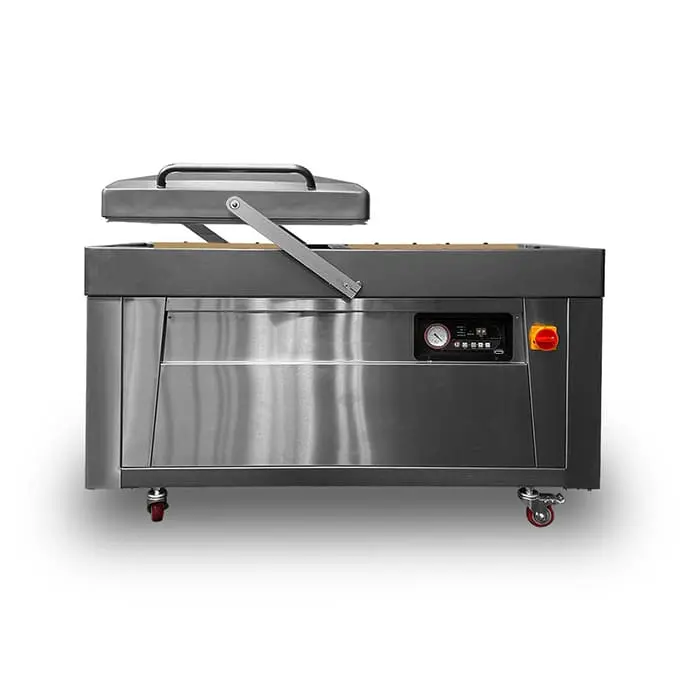

GCVDC-24FB: Single-Phase 24" Castle Vak Dual Chamber Vacuum Sealer (220V, 1 Phase)

The model GCVDC-24FB is a large Dual Chamber Vacuum Sealer with front and back 24" seal bars from our Castle Vac line. This freestanding unit sits on wheels to move around the production area. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that is sturdy, reliable, and easy to use. This unit comes with a lid made from hygenic 304 Stainless Steel that moves between the two chambers for easy cleaning, and dual highly efficient vacuum pumps to deliver a combined 48m³/h flow rate (two 1 1/4 hp pumps at 24m³/h).

Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the GCV-24LR one of options for high volume projects or small prosumer applications where reliability and safety are important.

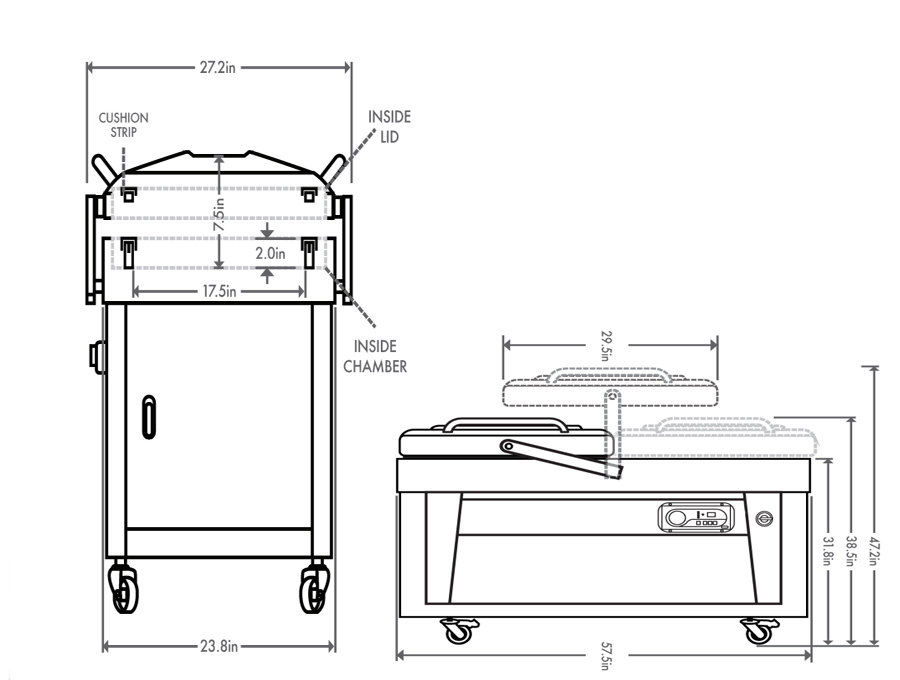

Dimensions: 57.5" x 27.5" x 38.5

220-Volt, 1 phase power supply REQUIRED

Soft Air Release option available: This feature gradually reintroduces air back into the chamber after the vacuum cycle, preventing delicate items from being crushed or misshapen and sharp items from puncturing the pouch with the sudden rush of atmospheric pressure, resulting in a neat, intact package. It works by controlling the speed of aeration, allowing the pouch to gently settle around the contents instead of violently collapsing, making it ideal for foods like soft cheeses, berries, bread, potato chips, or anything with sharp edges.

IMPAK supplies GCVDC-24FB machines for the following applications:

• Sous vide
• Pet food packaging
• Test kitchens
• Beef jerky packaging
• Bio test labs (non-validatable applications)
• Fish & game storage
• Restaurants
• Many more

GCVDC-24FB Castle Vak Dual Chamber Vacuum Sealer (single phase)

TECHNICAL SPECIFICATIONS:
