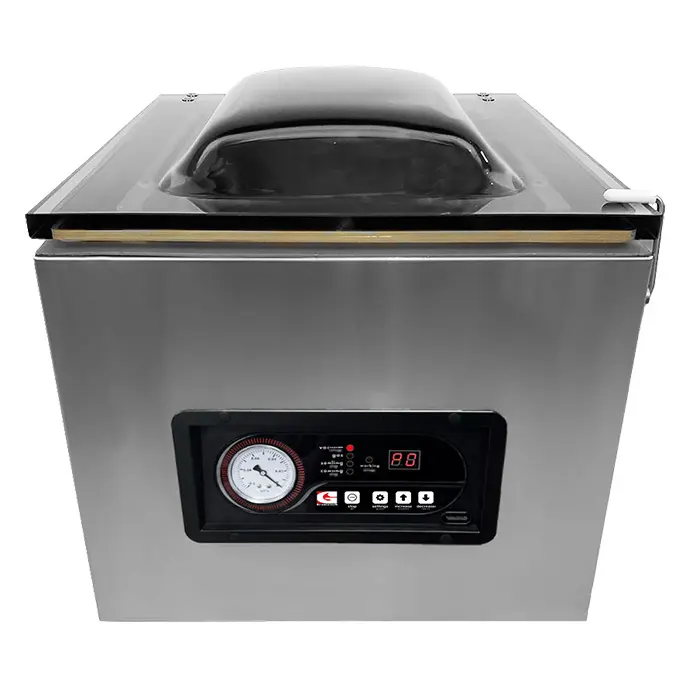

• silver tabletop chamber vacuum machine witting on table with acrylic lid closed and engaged
  • vacuum sealed food
  • vacuum sealed food
  • vacuum sealed food
Total Price:
$1,828.76
Part Number: GCV-16LR

NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags


The GCV-16LR is one of the larger tabletop units available from our Castle Vak Chamber Sealer line. This is the 2 bar version, sporting two 16" seal bars on either side of the chamber. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in small work spaces. Each comes with a thick transparent acrylic lid to see the process when sealing, and a Vane Oil lubricated vacuum pump to deliver a 20m3/h flow rate.

Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the GCV-16F one of the best options for hunters/fisherman processing at home, long term food storage, and small prosumer applications where reliability and safety are important.

IMPAK supplies GCV-16LR machines for the following applications:

  • Sous vide
  • Pet food packaging
  • Test kitchens
  • Beef jerky packaging
  • Bio test labs (non-validatable applications)
  • Fish & game processing
  • Restaurants
  • Many more
Castle Vak Sealers
Click on the Part Number for details
Part Number Seal Bar Length Chamber Size Style
GCV-11F 11" / 300mm 11.3" x 15.2" x 5.2" Tabletop
GCV-12F 12.3" / 310mm 13.8" x 12" x 4.3" Tabletop
GCV-16F 16" / 400mm 16.3" x 16.5" x 7" Tabletop
GCV-16LR 16" / 400mm (x2) 16.3" x 16.5" x 7" Tabletop
GCV-24LR 24" / 610mm (x2) 24.7" x 24.7" x 6.3" Single Chamber
GCV-24LRPL 24" / 610mm (x2) 33" x 25.5" x 11.5" Single Chamber
GCVDC-24FB 24" / 610mm (x4) 26.3" x 21.5" x 7.5" (x2) Double Chamber
GCVDC-24FB3P 24" / 610mm (x4) 26.3" x 21.5" x 7.5" (x2) Double Chamber
CHDV-650B 25" / 640mm 25.6" x 31.5" x 17.7" Vertical Chamber

GCV-16LR Castle Vak Chamber Vacuum Sealer

TECHNICAL SPECIFICATIONS:

Chamber size 16.3" x 16.5"
Chamber depth 7"
Seal bar length 16"/400mm
Seal bar Width 10mm
Vacuum pump capacity 20m3/h (1 1/4 hp)
Power/Amp 14 Amps Max
Voltage 110V/1PH/60Hz
Machine weight 171 lbs. / 77.5 kg

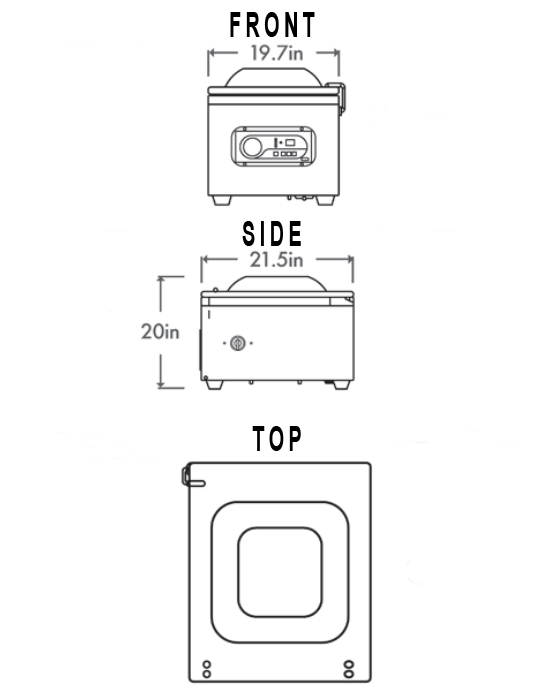

Machine size - L x W x H 22" x 20" x 20"
