We Modify Band Sealers to Fit Your Specific Need
Gas flush system designed and assembled in California.

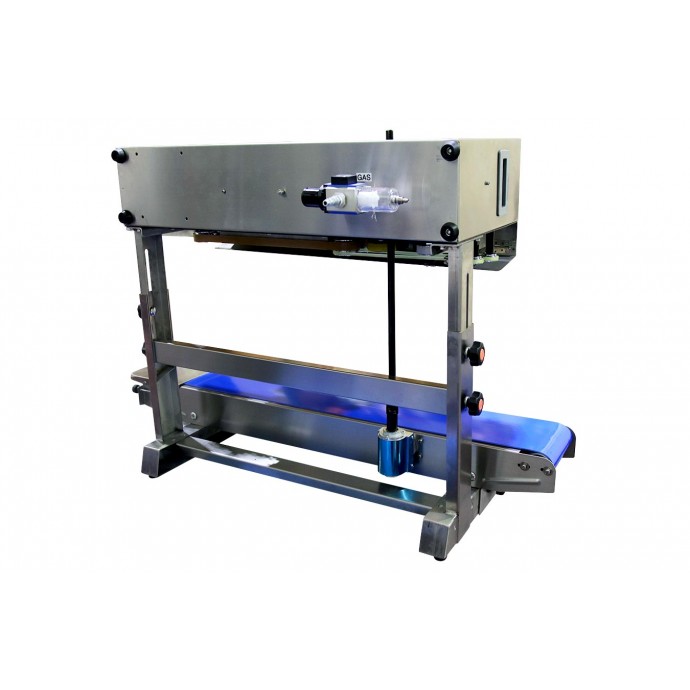

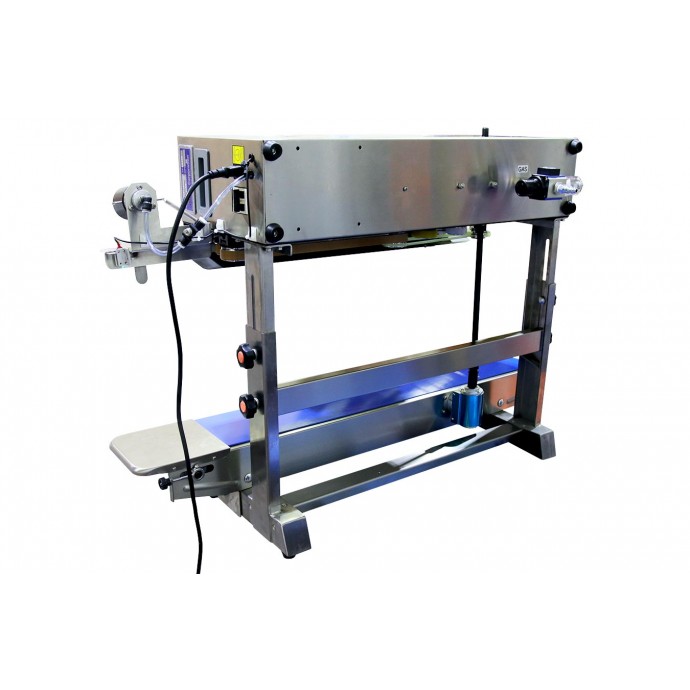

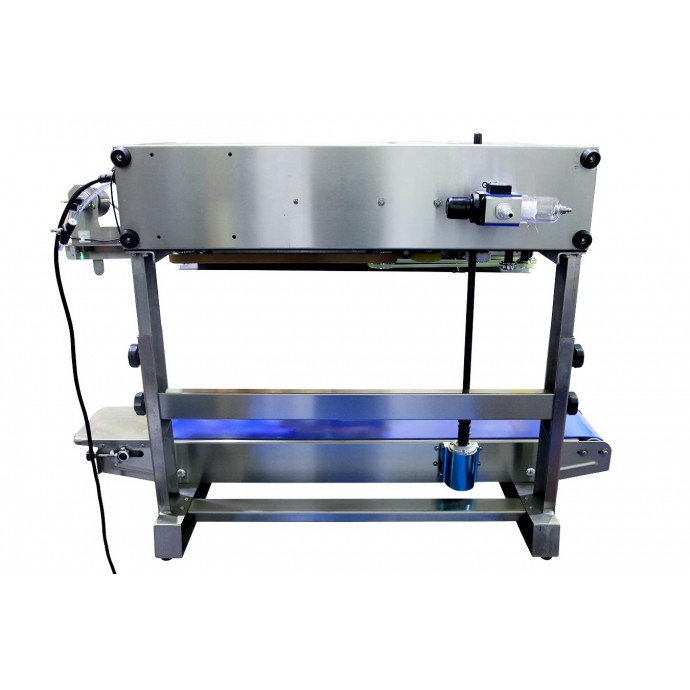

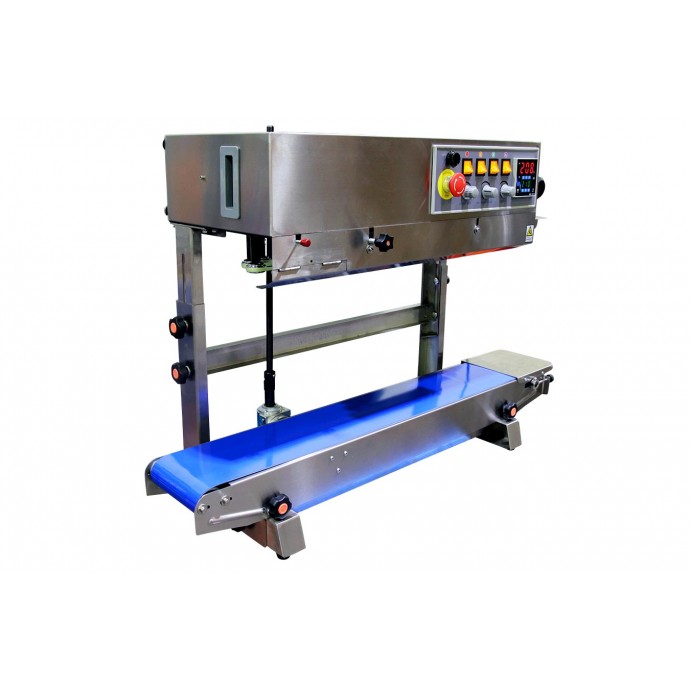

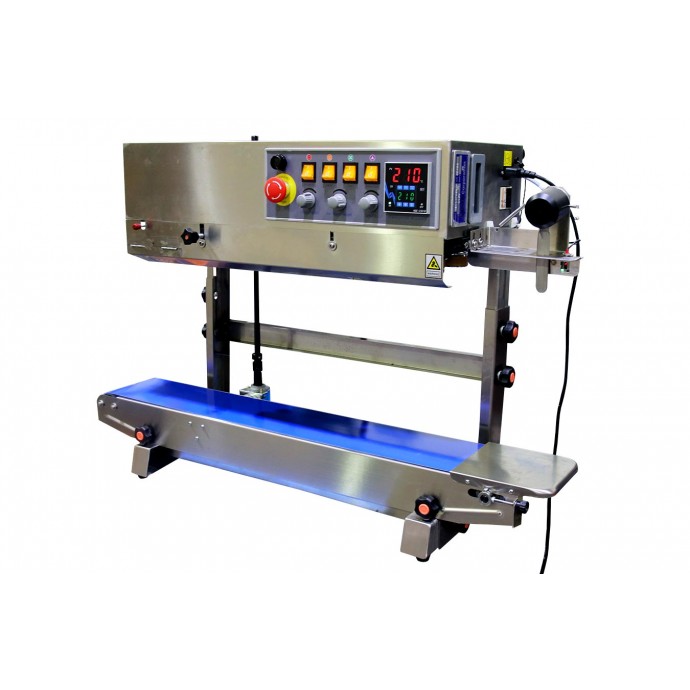

This vertical tabletop RapidSealer™ (Band Sealer) is designed to be used almost right out of the box, and can be set up in 5-10 minutes.
Stainless steel frame

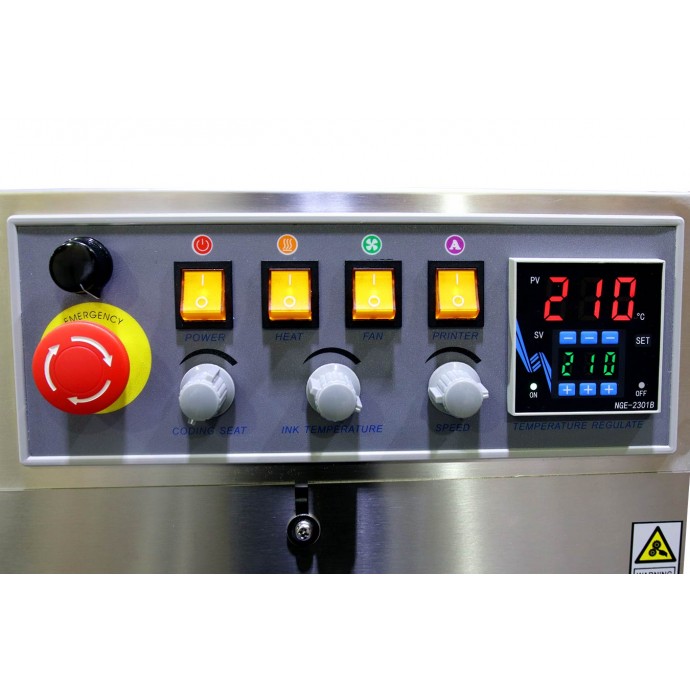

Digital temperature control
Stepless speed control
Emergency stop button for operator safety

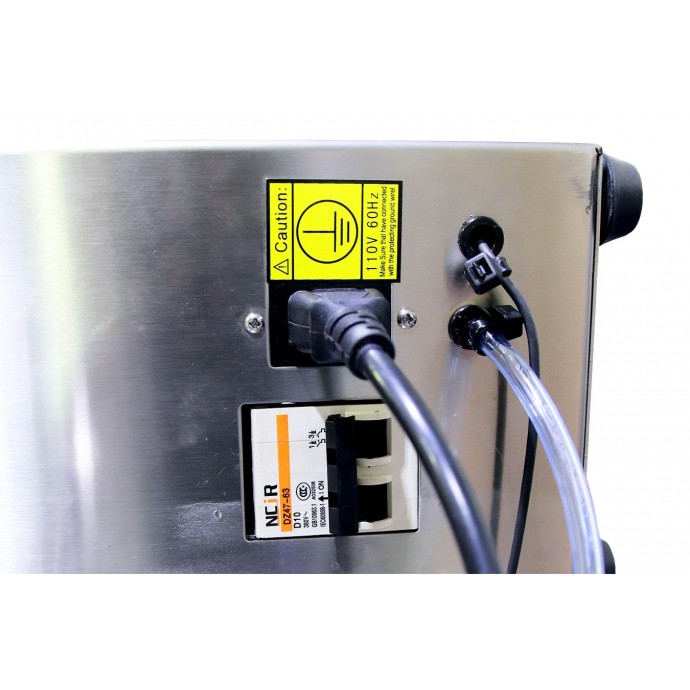

Breaker protected
Bag Feed: Right to left
Dimensions: 28” x 14” x 26”
Seal Speed: 0-320" per minute / 0-12m per minute
Adjustable Seal Width: 0.125" - 0.625" / 3mm - 16mm
Temperature Range: 32-572º F / 0-300º C
Voltage/Hz: 110v/60Hz
Power: 500W / 4.55A
Maximum Load on Conveyor: 12 lbs. / 4.5 kg
Maximum bag length: 13.0"
Weight: 110 lbs. / 35.3 kg - Ships common carrier no pallet required
Shipping Weight: 145lbs
Shipping Dims: 42" x 24" x 20"
A continuous band sealer equipped with a gas flush system to remove oxygen and provide cushion for delicate products.

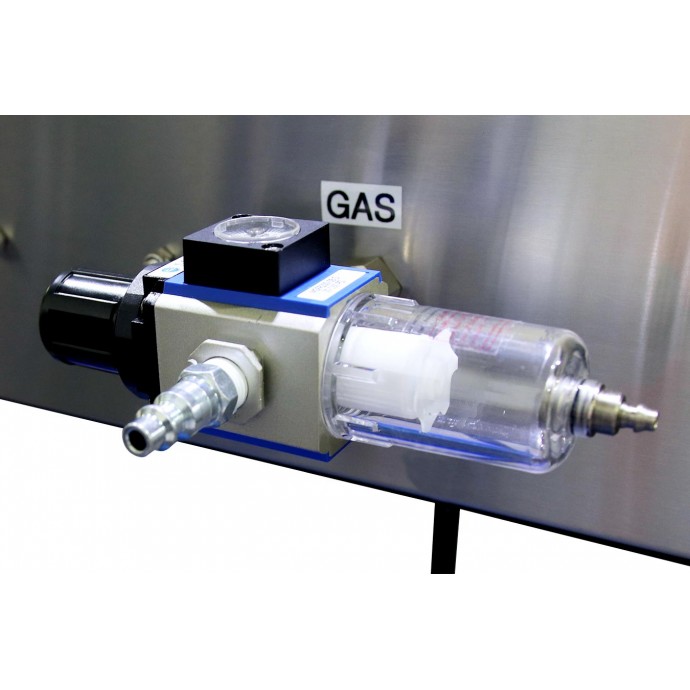

This unit requires a regulated supply of inert gas at 20 psi MINIMUM.
This conveyor style heat sealer is ideal for use with products which benefit from minimal oxygen levels but are delicate and might be damaged by a vacuum.
The nitrogen flush forces oxygen out of the bag for prolonged shelf-life and also creates a cushion for the product.

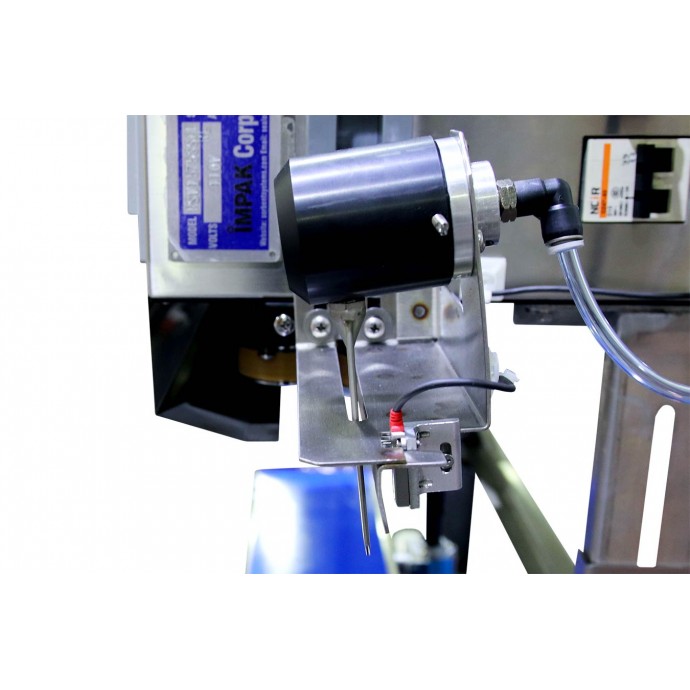

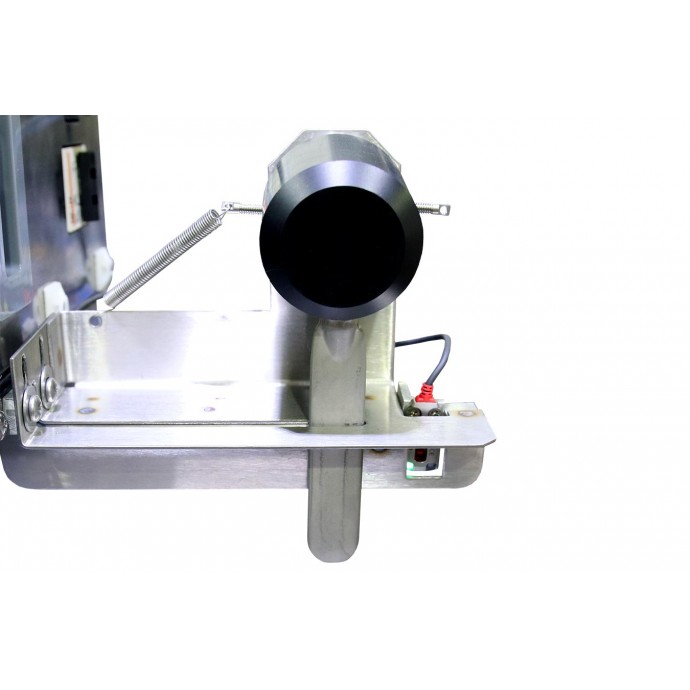

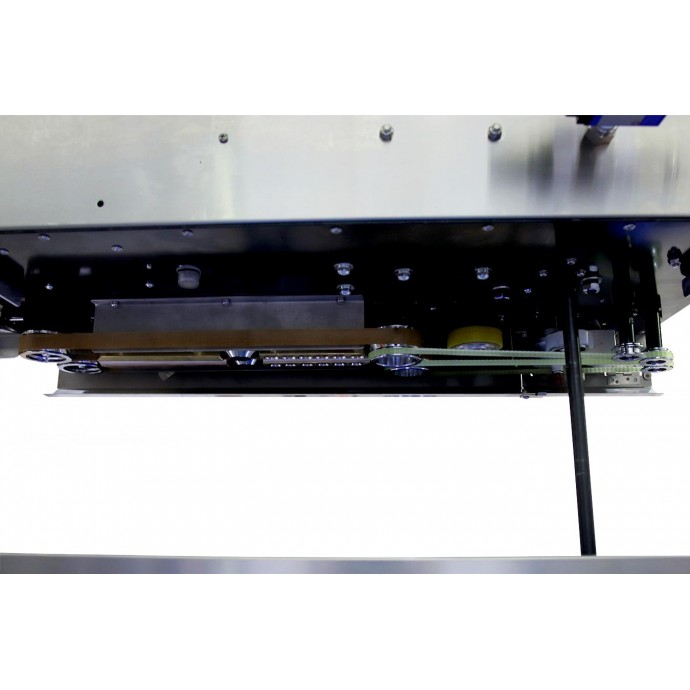

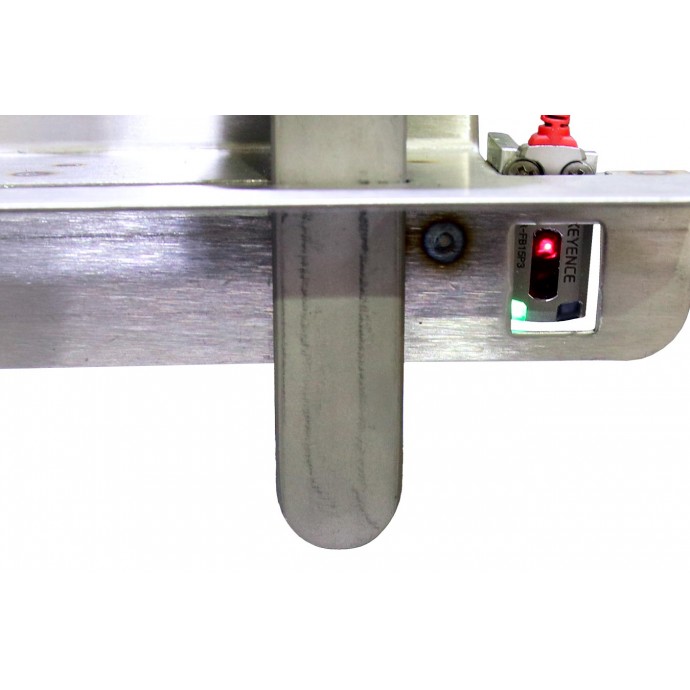

To operate, the nozzle is inserted into the bag and a bag sensor activates the gas flush. The bag fills as it is passed toward the heating elements. When the edge of the bag meets the nozzle the nozzle pivots out of the way and the bag continues through the heating and cooling blocks where it exits at the other side of the machine.
The machine may be used in conjunction with several gas types but most typically is used with nitrogen. Where space is a concern, IMPAK offers a Nitrogen Generator that converts oxygen to nitrogen and eliminates the need for a bulky tank.
The base unit for this machine is our tried and tested RHS1575 which has a reputation as a workhorse and is known for its easy operation. Consumable parts such as Teflon are readily available from IMPAK and easy to install. The RapidSealer line is an ideal solution for increased production speed with a reliable, simple machine. The addition of a gas flush expands its benefits and adds extra protection against the corrosive effects of oxygen.
Dear Customer: Due to the unique nature and layout of our gas flush and vacuum band sealers combined with the multitude of pouches available we kindly ask that you send in the pouch(es) and physical product(s) you intend to use in the unit prior to or upon purchase. Our skilled technicians will run the pouch through an identical unit and provide any feedback, suggestions or possible issues that may be encountered, such as zipper placement or fill volume. IMPAK is committed to helping our customers make sound purchasing choices, and in most cases we offer this testing free of charge. Please take advantage of the opportunity to gain valuable feedback about your packaging process.
WARNING: Spare Parts & Accessories are now SOLD SEPARATELY!
In order to reduce the base price of our RapidSealers, we no longer supply accessories and spare parts with each unit. This allows our customers to select these add-ons only as needed.
Spare Parts Kit is HIGHLY RECOMMENDED.
Purchase spare parts kit with machine at $199.95 instead of regular price at $259.95.

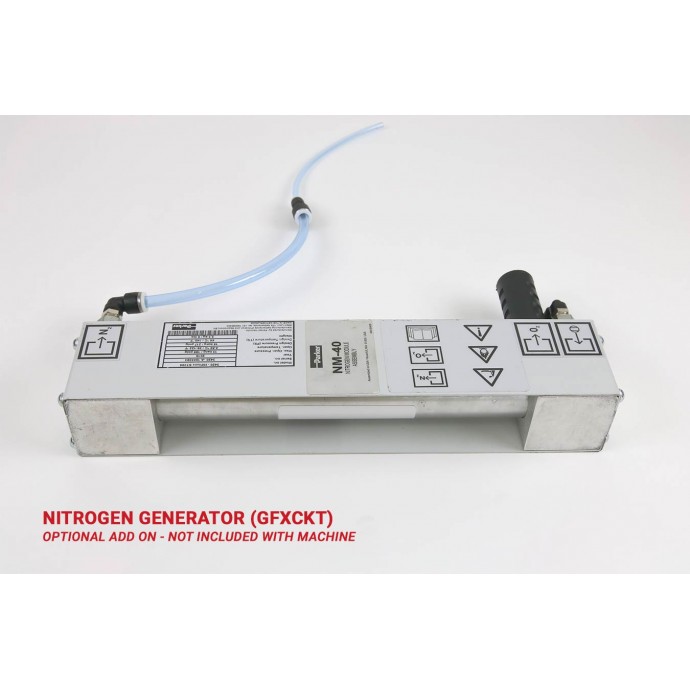

Nitrogen Generator Kit
The nitrogen generator produces nitrogen gas (N2) from a standard compressed air line. This model is designed to generate nitrogen at purities between 95% and 99.5%.
The nitrogen generator can be used as a replacement for heavy and bulky nitrogen gas tanks. Its slick and compact design allows users to integrate it with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about depleting their nitrogen gas source, as our generator produces nitrogen from clean compressed air.

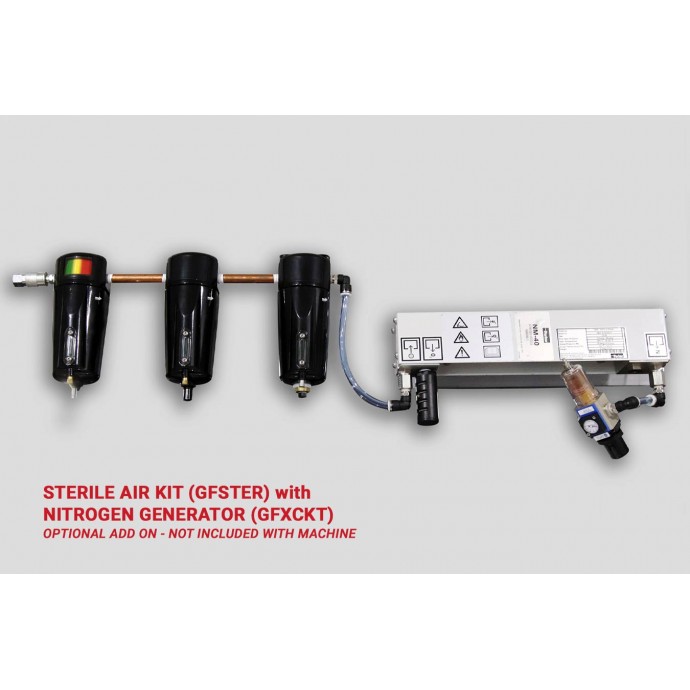

Sterile Air
With the Sterile Air Kit added to the Nitrogen Generator, gas flush impurities are virtually eliminated. Two pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a sterile nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.
Liquid Filler Machine Filling Spoutpaks
| Dimensions (L x W x H) | 28” x 14” x 26” |
| Weight | 79 lbs. |
| Shipping Weight | 99 lbs. |
| Shipping Dimensions | 42” x 24” x 20” |
| Power (v/Hz) | 110V/60Hz |
| Bag feed | Right to Left |
| Stainless-Steel or Powder Coated | Stainless steel |
| Seal Width | 0.125” – 0.625” |
| Analog or Digital Control | Digital |
| Minimum Bag Height | 7.75" |
| Maximum Bag Height | 13.0" |
| Maximum Bag Weight | 12 lbs. |
Spare Parts Kit for RSV1575SSDC sealers:
81XSPPRKT
Included Items:
