In 2018, we took the basic platform of our RapidSealer™, generically known in the industry as the Continuous Rotary Bandsealer, and added a gas flush and vacuum function. Then in 2021 we combined both of them, establishing IMPAK Corporation as the go-to company with the capability of modifying a RapidSealer™ to meet the specific needs of customers that could benefit from enhancements to the machine design. Here are a few examples:

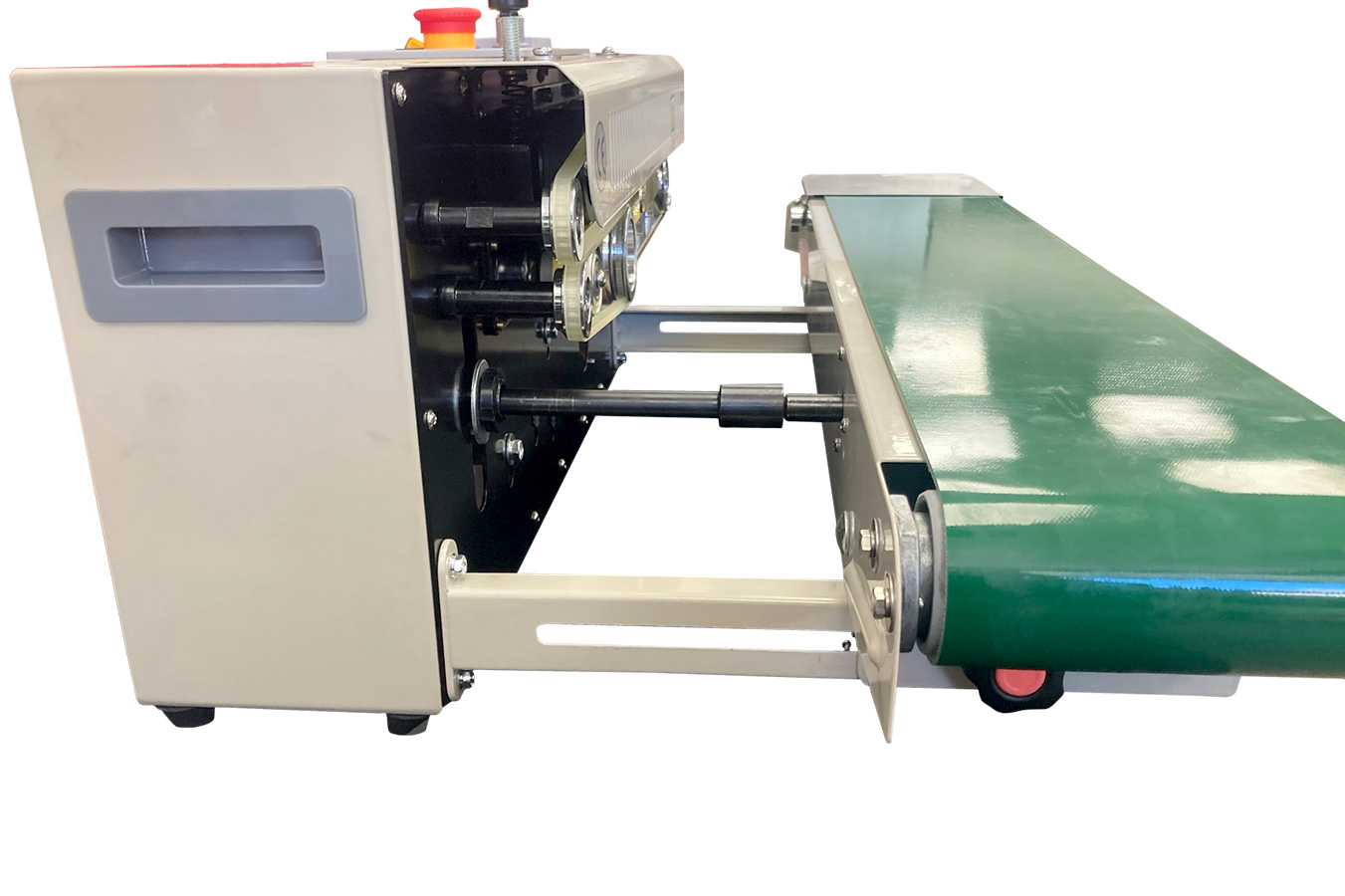

Example 1: Extend conveyor distance to allow for sealing of longer bag lengths

Need: A high speed, economical, heat sealing machine to seal large pouches (see video above) that contain 4.5 lb. (2.0 kg) of frozen seafood.

Challenge: Adapt / modify our highly successful RapidSealer™ continuous band sealer to accept larger pouches than it currently seals. The pouch used in the video is 14 inches (300 mm) long.

Solution: Extend the distance between the sealer and feed conveyor to 12 inches (51 mm). Our stainless steel RapidSealer™ provides high quality, hermetic seals on all moisture-barrier bag materials. It is an ideal solution for food, medical, pharmaceutical, electronics and other products that need added protection against decomposition.




Example 2: Add gas flush and vacuum function – launch VakRapid 2.0 & 2.5 product lines

As a natural addition to our highly successful RapidSealer™ series of continuous rotary band sealers, IMPAK developed VakRapid™ 2.0 with gas flush OR vacuum sealing capabilities. Later, the 2.5 version included both vacuum AND gas flush capabilities. It was this combination of economy and performance that set a new standard for high speed bagging of food, medical, pharmaceutical, and electronics applications that require optimum freshness and shelf life. The VakRapid™ model includes a vacuum cycle after gas flushing to allow virtually oxygen free vacuum-sealed product bags, and provides high quality hermetic seals on all moisture-barrier bag materials. The vacuum and nitrogen gas flush system removes up to 99% of oxygen present, depending on the application, and creates a low-moisture package. The gas flush system can also be used to create a cushion-like buffer to protect contents from damage. The VakRapid™ is economical and extremely competitive when compared to other sealers that offer nitrogen gas flushing for air removal. Additional options include a stainless steel stand with casters for portability, an embossing or dry print letter kit, and a spare parts kit.

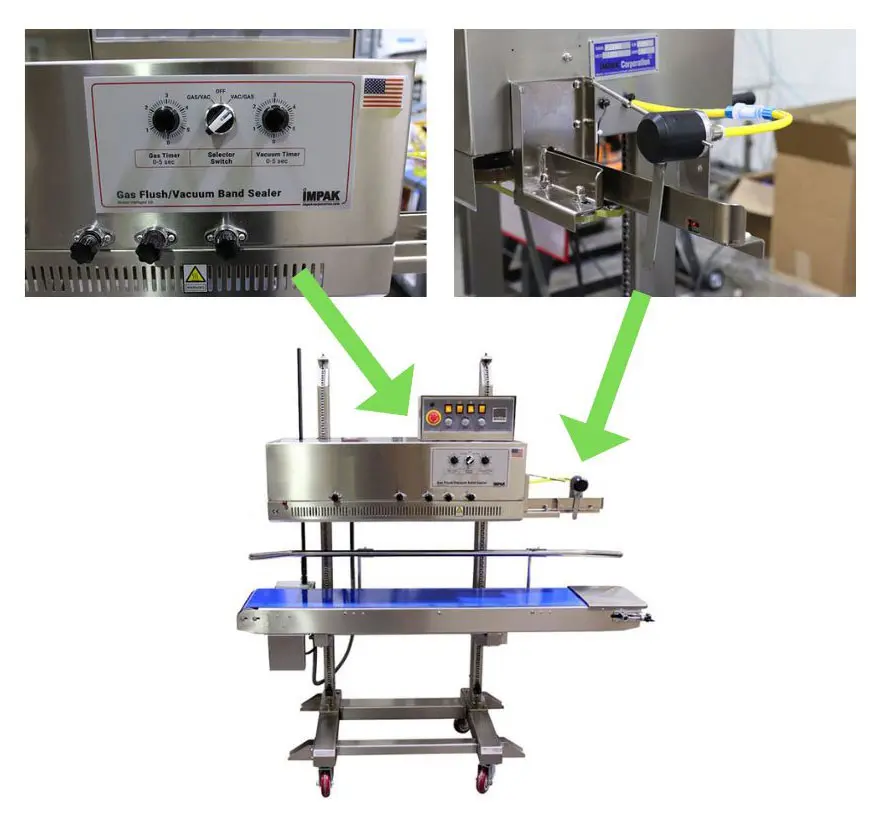

VakRapid sealer with gas flush and vacuum function

Example 3: Modify seal width and add optional no crimp seal

All versions of IMPAK RapidSealer™ and VakRapid™ are now available with multiple seal widths and either a smooth or "crimp" (cross-hatched) seal.

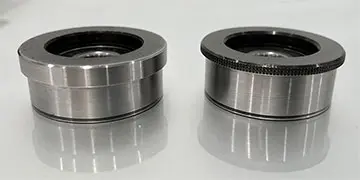

The images below show the standard width compression wheels (L) compared to custom-sized wheels (R), one that creates a .025" width smooth seal and one a 0.125" width crimped seal.

modified RapidSealer compression wheelsRapidSealer modified compression wheels​​

This applies to the following machines:
