Please note that 51" and 61" units need a 220V connection and cannot be modified down to 110V.

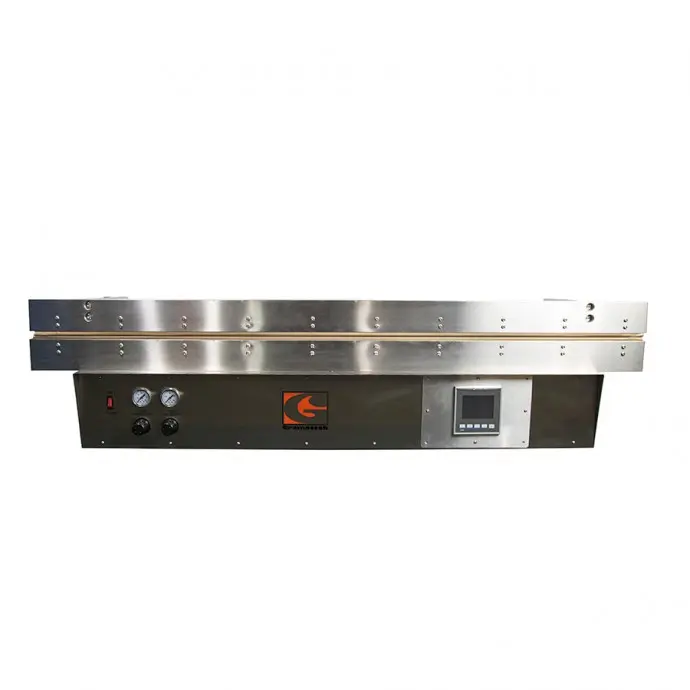

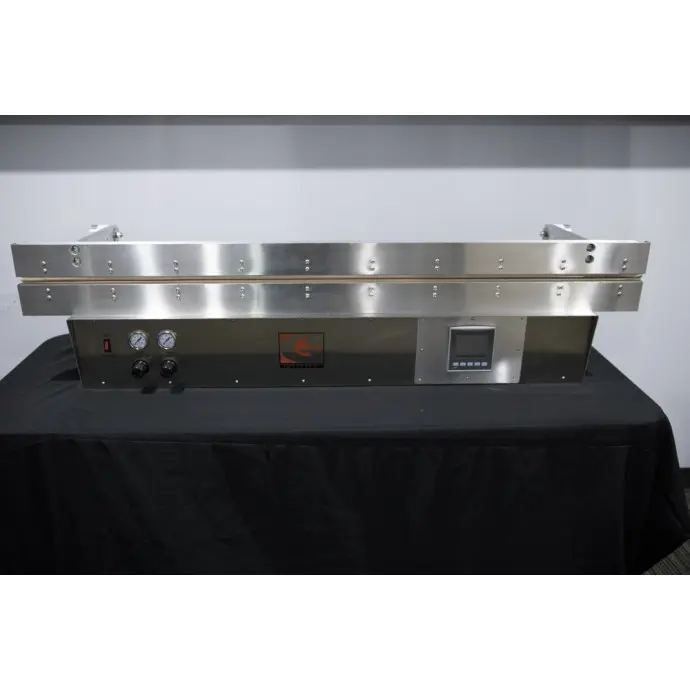

This tabletop heat sealer is made from high-grade 304 stainless steel and an aniodized aluminum frame. It's perfect for medium to high production use and comes with dual 0.25" heating elements and Unitronics color touch screen as standard features.
Specifications:
- Model Number: GXPS-51
- Max. Seal Length: 51"
- Standard Seal Width: 0.25"
- Electrical: 220 VAC
Features:
- Upper and Lower 0.25" Heating Elements
- Unitronics V350 Color Touch Screen with 30 recipe memory
- Pneumatic Safety-System: Prevents accidental operator injury by use of a back-pressure sensitive micro switch to prevent jaws from locking down in the event an unwanted object (e.g., hand or finger) is present in the seal area.
- High-Grade Stainless Steel Body, Heavy Duty Anodized Aluminum Frame
- Illuminated on/off switch
- Emergency stop button on machine face
- Handles for portability
CSA Certification Announcement
IMPAK is proud to partner with a major Multi-National Pharmaceutical Company and to have been granted a CSA Certification for its industry leading line of Gramatech Vacuum Heat Sealers. “We are now ready to offer CSA registration as an option to our industry leading line of Gramatech Sealers,” according to Rajib Hasan, Managing Director, Machine Group.
As the company General Manager has said, “We are very proud of the machinery we have built to CSA standards.” The story below written by Alan Masnek, our resident Certified Packaging Professional (CPPL) and graduate of University of Wisconsin – Stout, illustrates the steps that were taken to design, develop and produce a piece of equipment for pharma MNC. This particular MNC is just one of the many top medical manufacturing firms we are proud to have produced product for. [see full article.]
Clean Room Ready
Machine taken into Class 100 clean room where all surfaces are wiped down with an 80/20 mix of sterile water/isopropyl alcohol then double bagged and sealed in virgin poly bags.
3rd Party Certification
3rd Party Certification is provided independent company who calibrates the unit for time, temperature and pressure. Upon completion a certification label with date is applied to the unit and PM/re-certification is generally done yearly.
Part Number: GKS-GVS51
Spare Parts Kit for 51" Workhorse
Includes:
- 2 - Teflon Insulators
- 6 - Teflon Covers
- 2 - Nichrome Elements
- 4 - Terminal Blocks
- 1 - Orange Seal Rubber
- 1 - 5/32 Allen Wrench
- 1 - 1/8 Allen Wrench
- 1 - 1/16 Allen Wrench
- 1 - Flat-Stubby Screwdriver
Buy Here
GXPS-21 : 21" SEAL-ONLY Heat Sealer
GXPS-26 : 26" SEAL-ONLY Heat Sealer
GXPS-31 : 31" SEAL-ONLY Heat Sealer
GXPS-36 : 36" SEAL-ONLY Heat Sealer
GXPS-41ts : 41" SEAL-ONLY Heat Sealer
GXPS-61 : 61" SEAL-ONLY Heat Sealer
View Workhorse Impulse Heat Sealers
