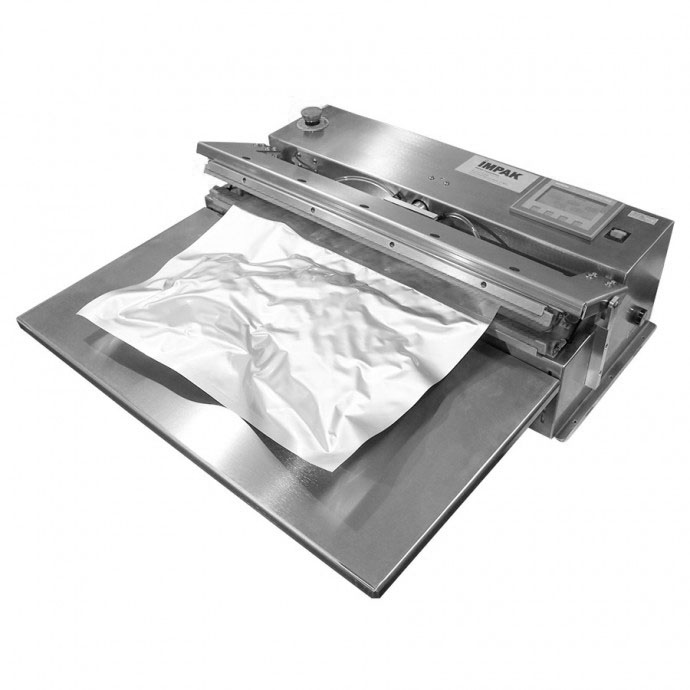

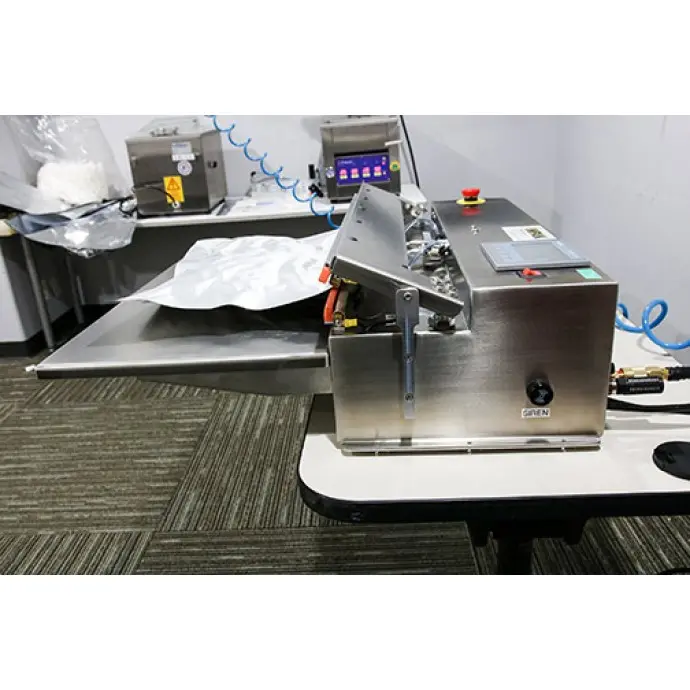

IS2VV-25 - 25" Medically Validatable Vacuum Sealer (UNAVAILABLE)

Total Price:
$16,096.50

Part Number: IS2VV-25

Available Options

iS2 Options:

Nitrogen Generator Option:

Nitrogen Generator with Sterile Air:

Description Technical Specifications Options Videos Spare Parts

This model is currently unavailable. For comparable Validatable Vacuum Sealing functionality, please see our GXVS-26TS 26" Dual Retractable Nozzle Vacuum Sealer with the optional OPBTCP Siemens Based Intelligent Sealing (Validated) System

Our iS2 line of medically validatable sealers are an industry standard where traceability and data tracking are necessary. All units can be NIST certified by an independent third party lab and seal parameters set for repeatable results. Each unit comes standard with the following:

Validation ports for seal pressure, seal temperature and seal time
Heavy duty stainless steel body
K-Type thermocouple
Pneumatically actuated sealing jaw

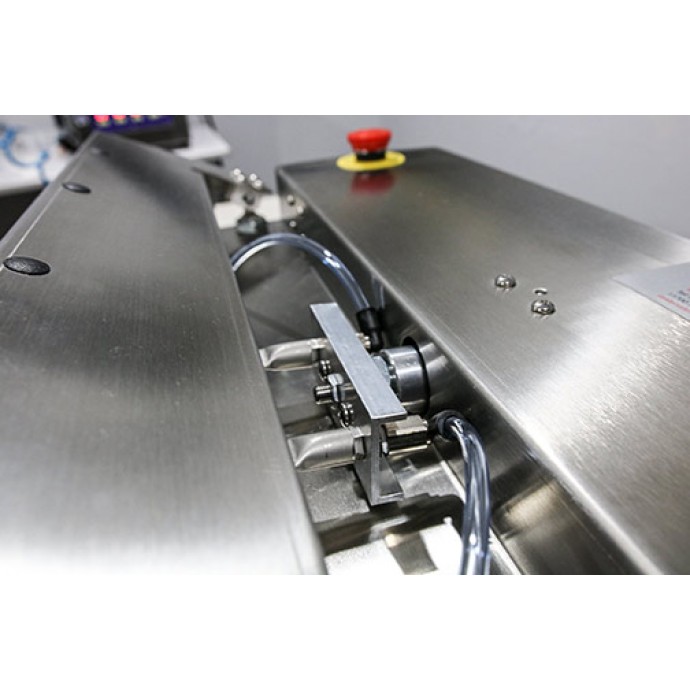

Dual high flow retractable nozzles
25" seal length

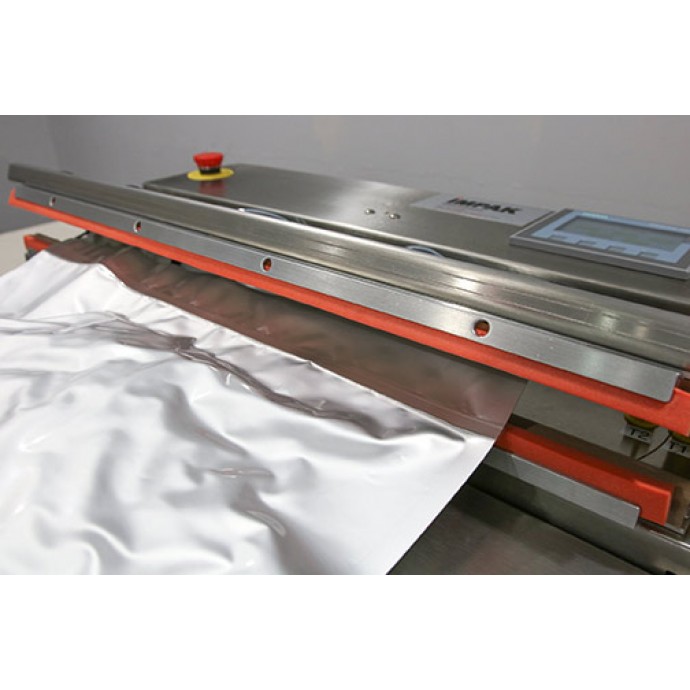

0.25" wide nichrome heating element
Jaw clearance for side to side material feed

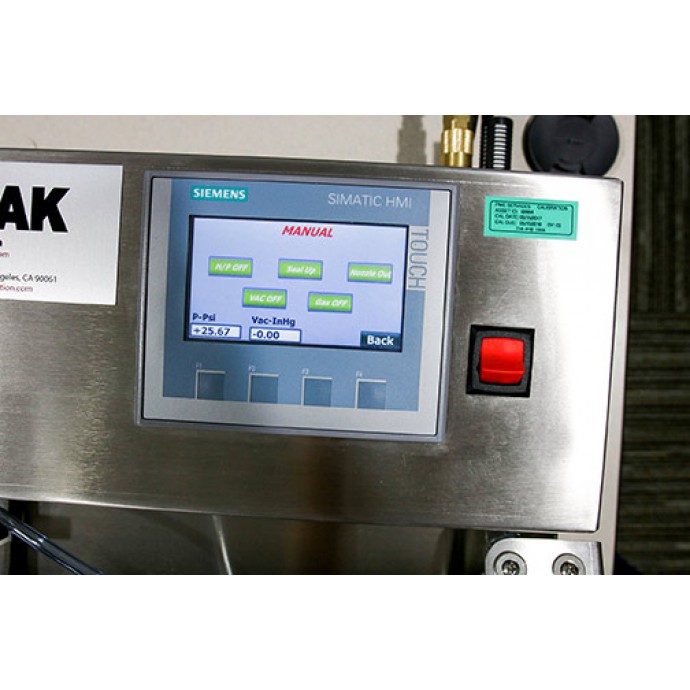

Digital pressure gauge, digital proportional valve, and upgraded Siemens controller with +/- 3 degree accuracy
Foot pedal operated
Emergency Stop & Low Pressure Close
Airtight and watertight seals
Bottom flange allows for horizontal or vertical mounting of machine
110V-120V/60Hz operation (220V option available)
Upgraded from the MPDSS25: enhanced construction and components, more options for programming and processing speed. Superior controller with ability to read temperature within 2ms and apply adjustment; can control 4 thermocouples simultaneously. Plus vacuum feature.
Controller is password protected so operators cannot change settings. This is to ensure repeatability and consistency in operating parameters.
Stores up to 5 recipes
1-time gas flush cycle and vacuum cycle
Made in the USA

Need Custom Features? We Can Help

The Intelligent Sealing System, or “iS2” system is IMPAK's proprietary control platform for digital operation of heat sealing equipment. This platform offers precise control of time, temperature, pressure and vacuum. These highly precise, repeatable results are ideal for applications which require validation, as well as applications which utilize sensitive materials that need to stay within close sealing parameters.

The iS2 System comes pre-installed on every iS2 Validatable Vacuum Sealer, but can be modified to customer specifications as requested. System modifications are an additional investment, speak with our specialists to determine if a modification would benefit you.

Learn More: IMPAK’s Intelligent Sealing System (iS2)

*IMPAK realizes that some of our valued customers may have an expedited need for production of this machine. Please contact our machinery department to discuss options for expedited orders.

Note: This unit requires a separate compressed air source capable of providing 80 PSI of clean, dry air.

Model	iS² Series
Body	Stainless Steel
Sealing Length	25"
Sealing Width	0.25" (also available with 0.375")
Clean Room Compatible	Yes
Air-Flow Rate	7 cfm/min

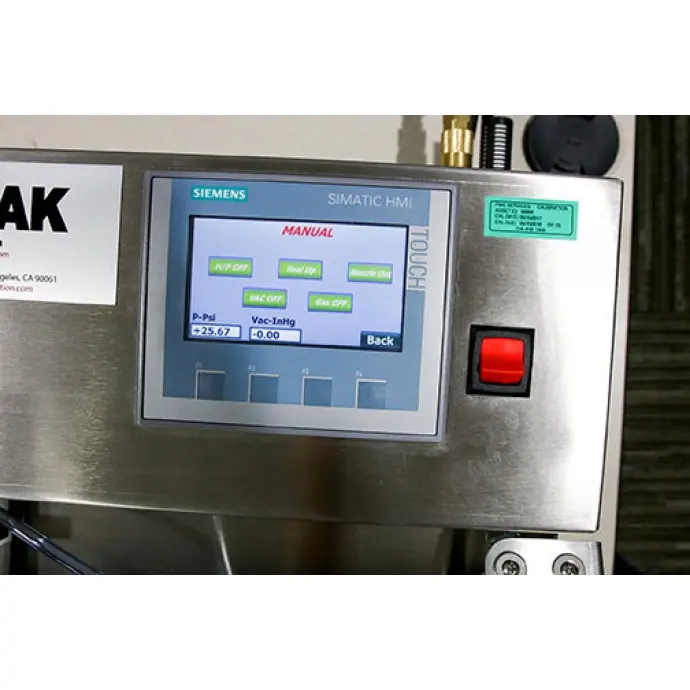

Controller	Digital - Siemens (iS ²Controller)
Adjustable Time	Yes
Programmable	Yes
Saves Recipes	Yes
Optional Dual Element	Yes
Power	110V-120V/60Hz (220V available)
Dimensions	L = 29.5" x W = 12" x H = 8.5"
Weight	140 lb.
Shipping Weight	150 lb.

220 Volt Option

This option allows the user to operate the unit where 220 Volts is available or needed.

Dual Element

Also known as Bi-Active Heat. This option is used to seal thick materials or materials that require a high temperature to seal. A unit with the dual element option has two seal bars, this allows both sides of the film to be heated simultaneously. It also reduces the time it takes to seal a material, increasing production and output.

Gas Flush Capability

Ability to flush the bag with an inert gas.

Clean Room Ready

Machine taken into Class 100 clean room. All surfaces wiped with 80/20 sterile water/isopropyl alcohol mixture. Double bagged in virgin PE Poly bags.

3^rd Party Certification

3^rd Party Certification is provided independent company who calibrates the unit for time, temperature and pressure. Upon completion a certification label with date is applied to the unit and PM/re-certification is generally done yearly.

Operator Safety Guard

Polycarbonate safety guard which is mounted to the front/top of the unit and seal bar and safely prevents unwanted objects such as fingers from being able to be caught between the jaws.

Sterile Air (SA) Kit

Two Pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a Sterile Nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.

Nitrogen Generator Kit

The Nitrogen Gas Generator (NGG) produces Nitrogen gas (N₂) from compressed air. *This module is designed to generate Nitrogen at purities between 95% and 99.5%.

Our (NGG) can be used as a replacement for heavy and bulky Nitrogen gas tanks. Its slick and compact design allows users to integrate this with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about a depleting Nitrogen gas source, as our NGG produces Nitrogen from a clean compressed air source.
