We Modify Band Sealers to Fit Your Specific Need
Gas flush and vacuum system designed and assembled in California.HIGH SPEED, HIGH QUALITY VACUUM/GAS FLUSH (OR BOTH) SEALING FOR FRESHNESS

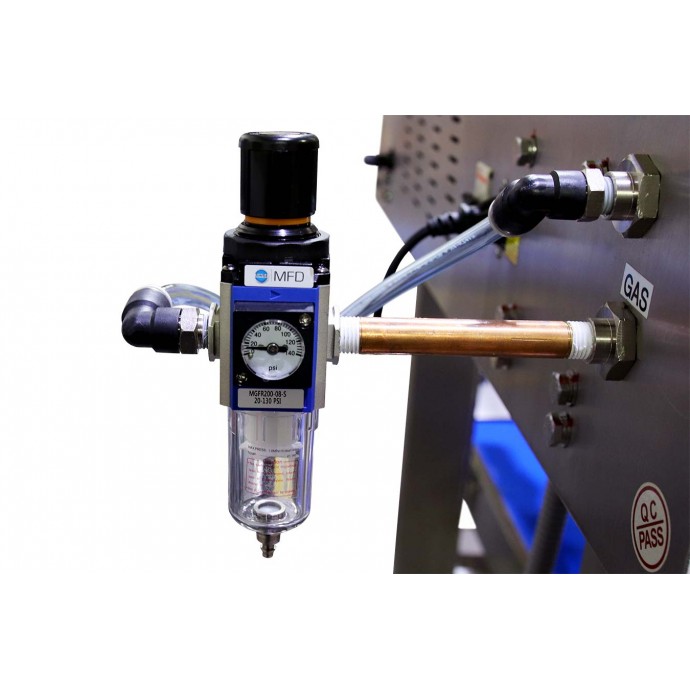

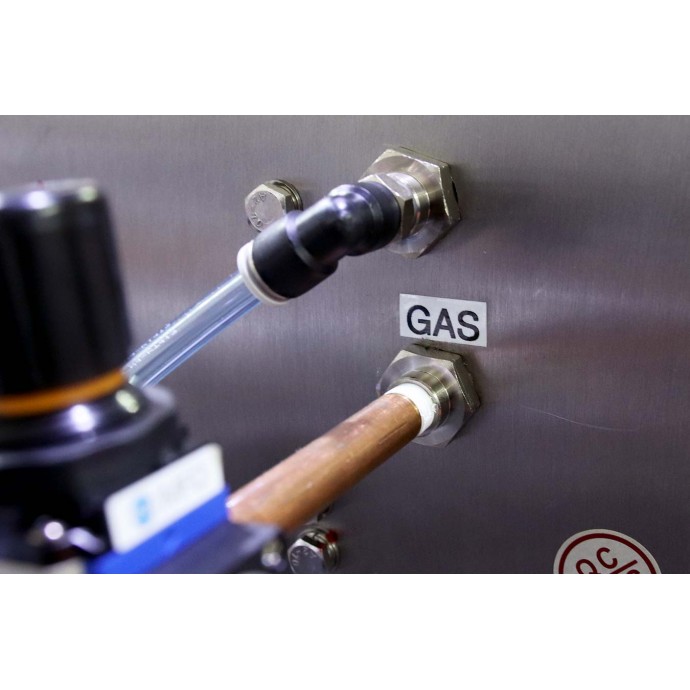

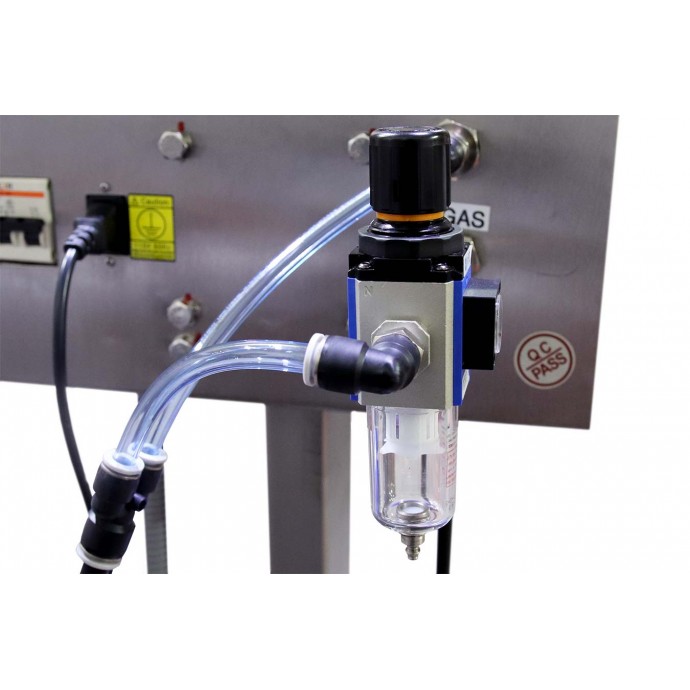

This unit requires a regulated supply of inert gas at 20 PSI minimum AND a clean, dry compressed air source capable of providing 80 PSI minimum.

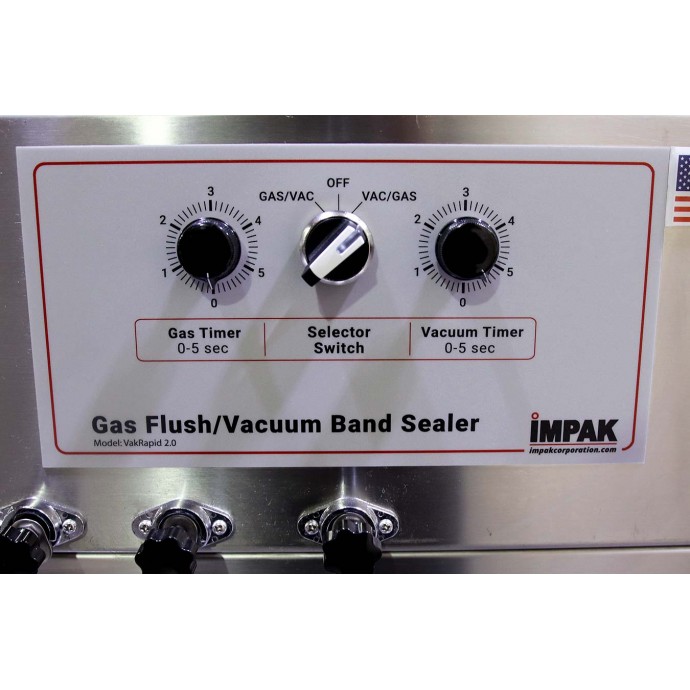

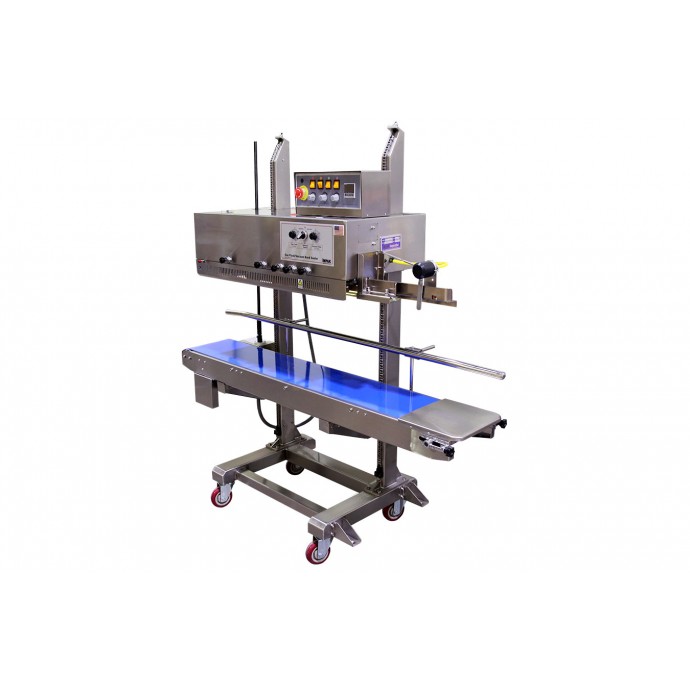

As a natural addition to our highly successful VakRapid series of continuous band sealers, the IMPAK VakRapid 2.5 continuous band vacuum and gas flush sealers set the standard for high speed bagging of food, medical, pharmaceutical and electronics applications that require optimum freshness and shelf life. The VakRapid Series provides high quality, hermetic seals on all moisture-barrier bag materials. The vacuum and nitrogen gas flush system removes up to 99% of oxygen, depending on the application, and creates a low moisture package. It is an ideal solution for food, medical, pharmaceutical, electronics and other products that need added protection against decomposition. The gas flush system also can be used to create a cushion like buffer to protect contents from damage. The VakRapid is economical when compared to other sealers that offer nitrogen gas flushing for air removal. The VakRapid model includes a vacuum cycle after gas flushing to allow virtually oxygen free vacuum-sealed product bags. Comes with a dry ink printing system and a small kit of the most common letters and numbers. Additional accessories available.

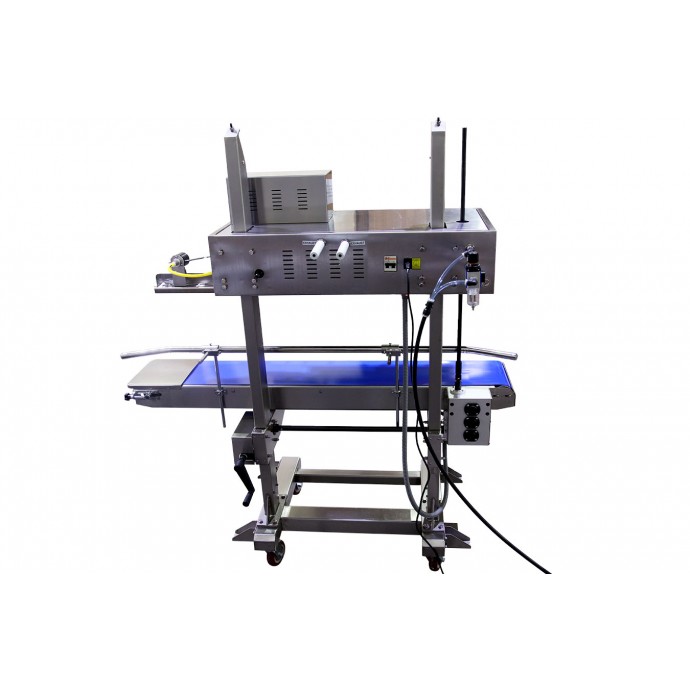

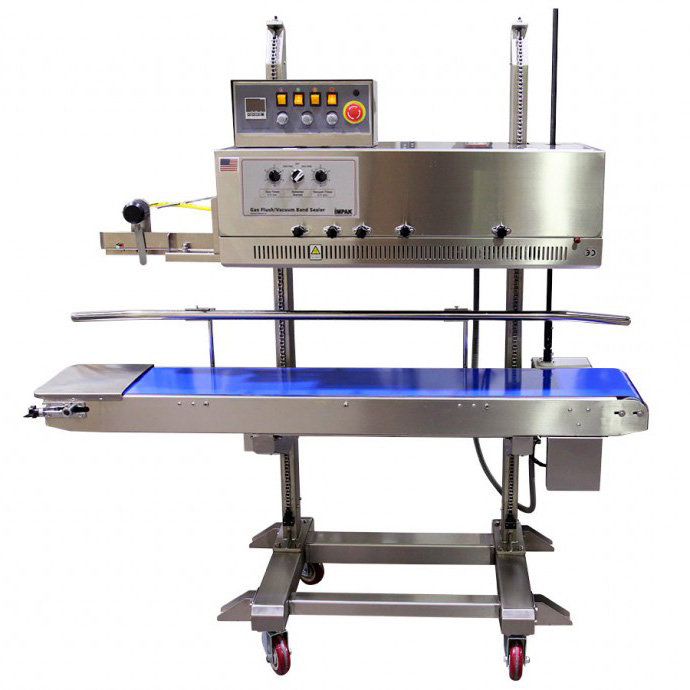

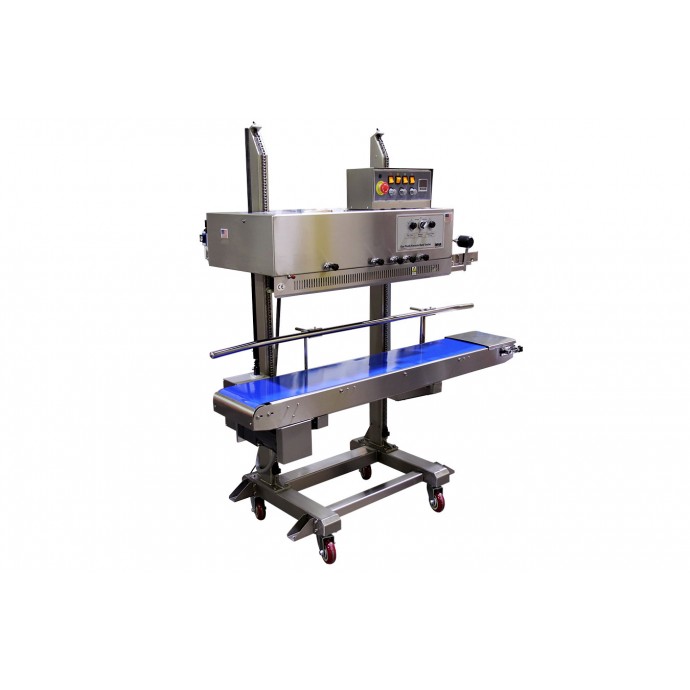

This vertical unit is designed to be used almost right out of the box, and can be set up in 5-10 minutes. This RapidSealerTM (Band Sealer) has a right to left configuration and the bag is fed from the right side of the unit.

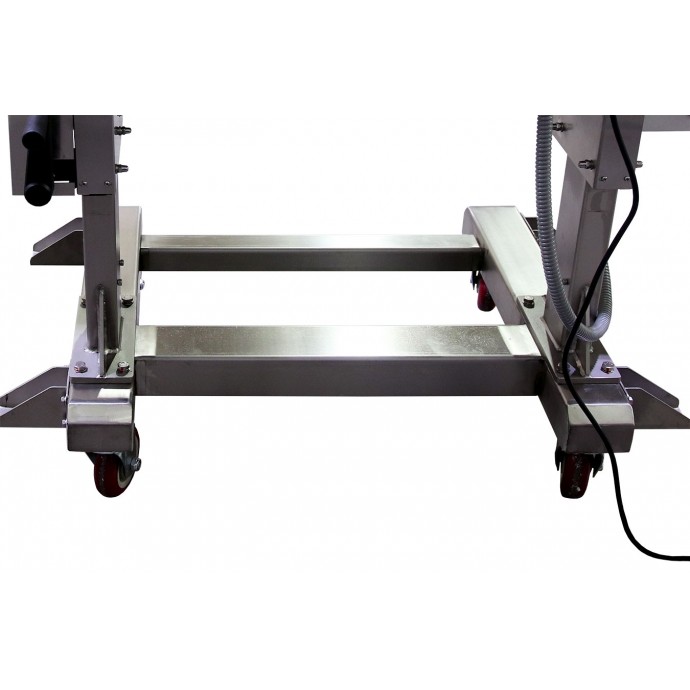

Heavy duty stainless steel frame

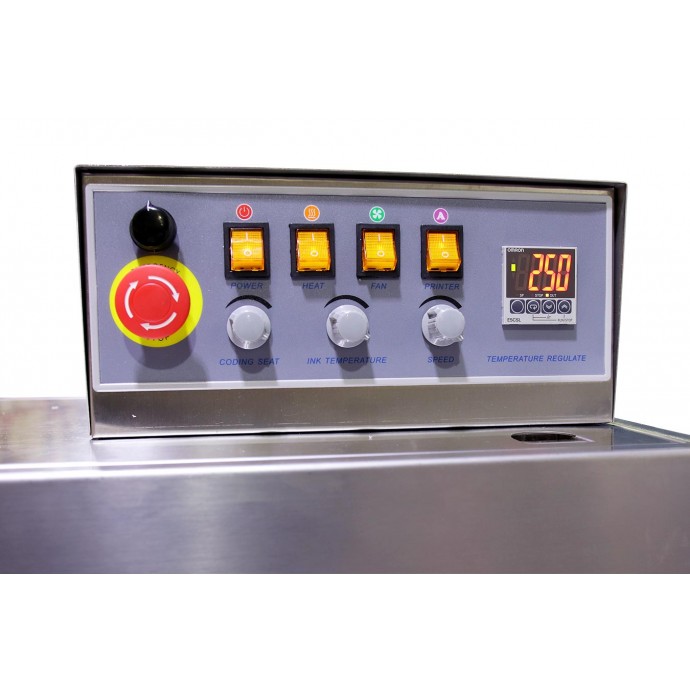

Digital temperature controller
Stepless speed control
Emergency stop button for operator safety
Breaker protected
Dry ink coding wheel capable of up to 20 characters at one time (upgradable to 40 characters)
Includes Letters M,F,D,E,X, and P (x3) and Numbers 0-9 (x5)

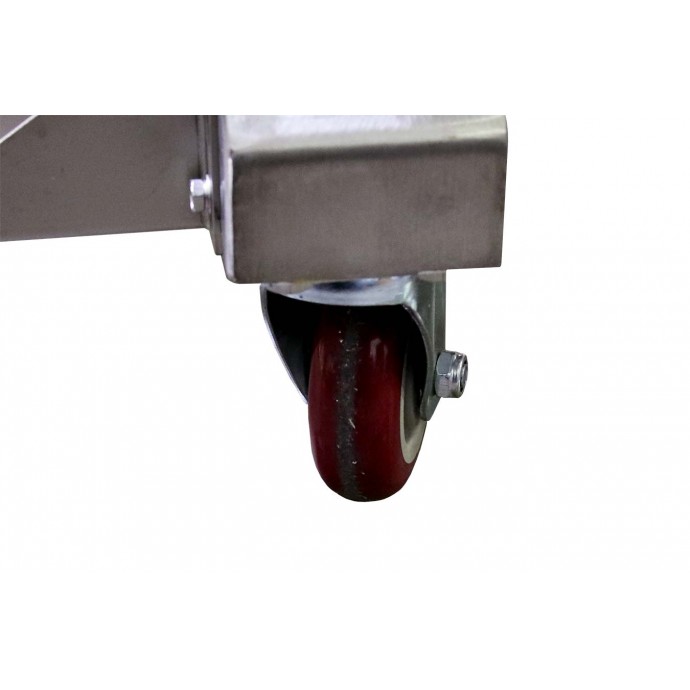

Locking heavy duty casters for portability

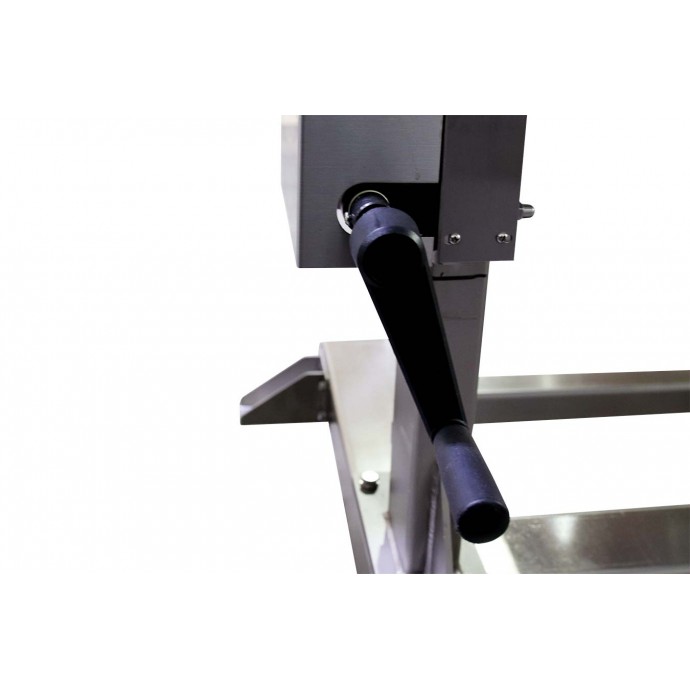

Adjustable height: 6" minimum bag height up 29.5"
Seal Speed: 512"/minute - 13m/minute
Adjustable Seal Width: 0.125" - 0.625"
Temperature Range: 32º F - 575º F / 0º C - 300º C
Voltage/Hz: 110V/60Hz (220V/50Hz is also available)
Power: 500W / 4.55A
Maximum Load on Conveyor: 30 lbs. / 15 kg
Weight: 350 lbs.
Footprint: 44" x 24" x 61"
WARNING: Spare Parts & Accessories are now SOLD SEPARATELY!
In order to reduce the base price of our RapidSealers, we no longer supply accessories and spare parts with each unit. This allows our customers to select these add-ons only as needed.
The following are additional accessories which may be added-on:
(10) PTFE bands
(2) Urethane drive belts
(2) Black ink rolls

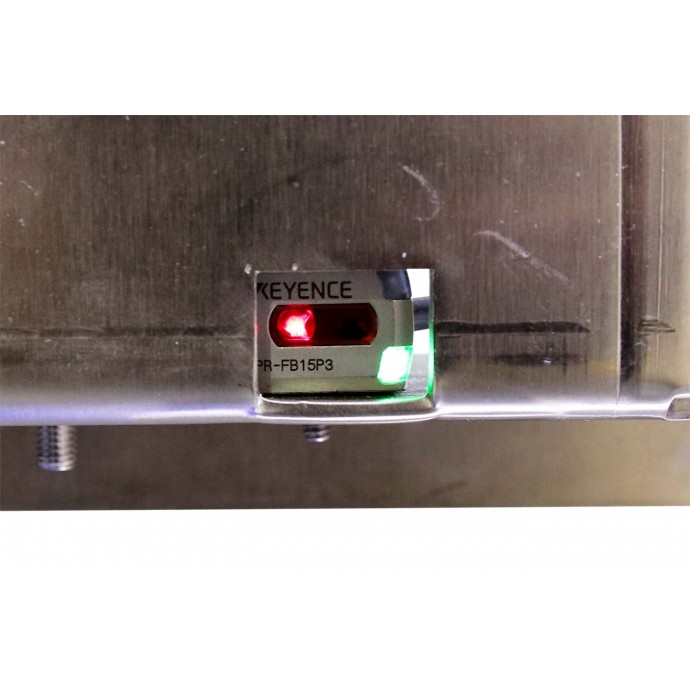

(1) Sensor
(1) Silicon Wheel
(1) Letter Holder
(1) Temperature Controller
(1) Main Control
(4) Clutch Belts
(1) Heating Element
Spare Parts Kit is HIGHLY RECOMMENDED.
Spare Parts Kit For RSV2225SSDC Sealers
11CXSPPRTKT
INCLUDED ITEMS:
Consumables:
