The model GCV-30LR is one of the larger single chamber sealers in our Castle Vac Chamber Sealer line. This freestanding unit sits on wheels to move around the production area. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in relatively small work spaces. This unit comes with a Hygenic Stainless Steel Lid for easy cleaning and interior clearance, and a commercial grade vacuum pump, capable of 100m3/h pumping speed. Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the GCV-24LR one of the best options for home hunters/fisherman, long term storage, and small prosumer applications where reliability and safety are important.
220-Volt, 3 phase power supply REQUIRED
IMPAK is supplying GCV-30LR machines for the following applications:
- Sous Vide
- Pet food packaging
- Test kitchens
- Beef jerky packaging
- Bio test labs ( Non validatable applications)
- Fishing/Game storage
- Restaurants
- Many more

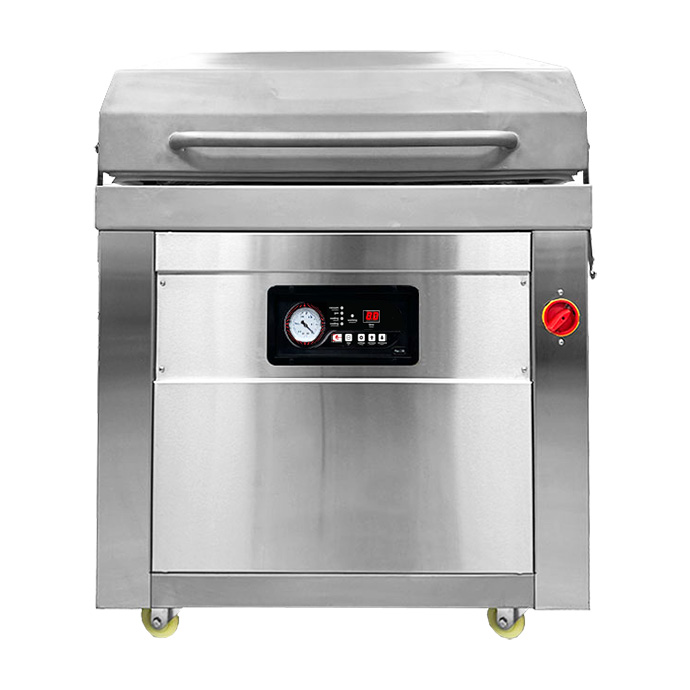

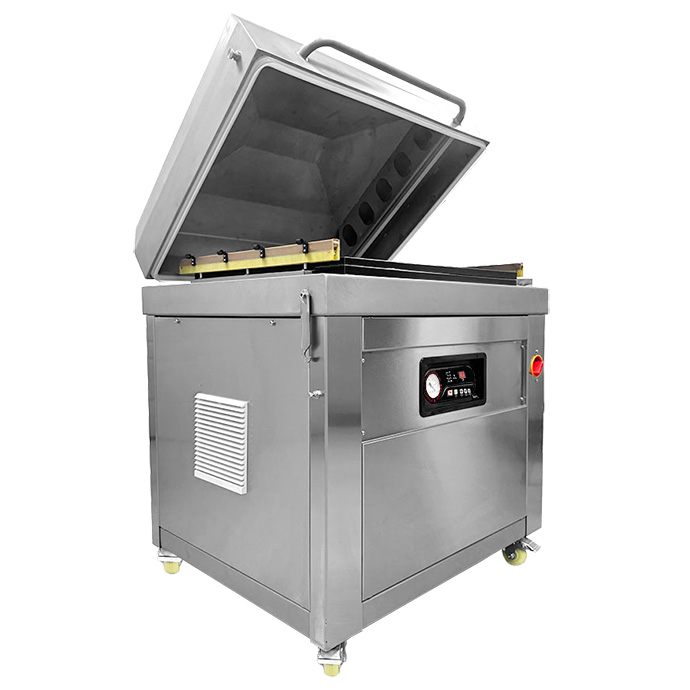

GCV-30LR Castle Vak Chamber Vacuum Sealer
TECHNICAL SPECIFICATIONS:
| Chamber size | 33" x 25.5" |
| Chamber depth | 11.5" |
| Seal bar length | 24"/610mm (x2) |
| Seal bar Width | 10mm |
| Vacuum pump capacity | 100m3/h |
| Power/Amp | 13 Amps Max |
| Voltage | 220V/3PH/60Hz |
| Machine weight | 580 lbs. / 265 kg |
| Machine size - L x W x H | 37" x 33" x 46" |
