• GCV-24LRPL: Extra Wide 24" Castle Vak Chamber Vacuum Sealer (2 bar, 220V, 3 phase)
  • vacuum sealed food
  • vacuum sealed food
  • vacuum sealed food
Total Price:
$7,890.76
Part Number: GCV-24LRPL

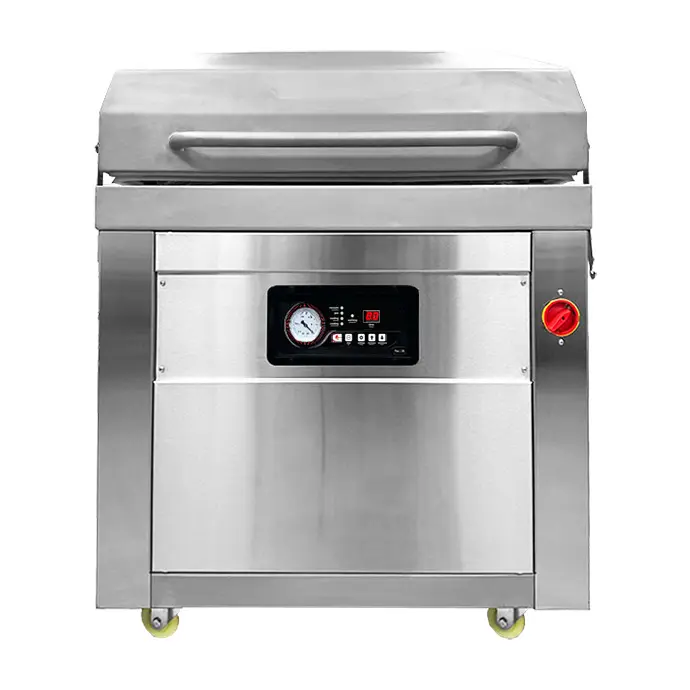

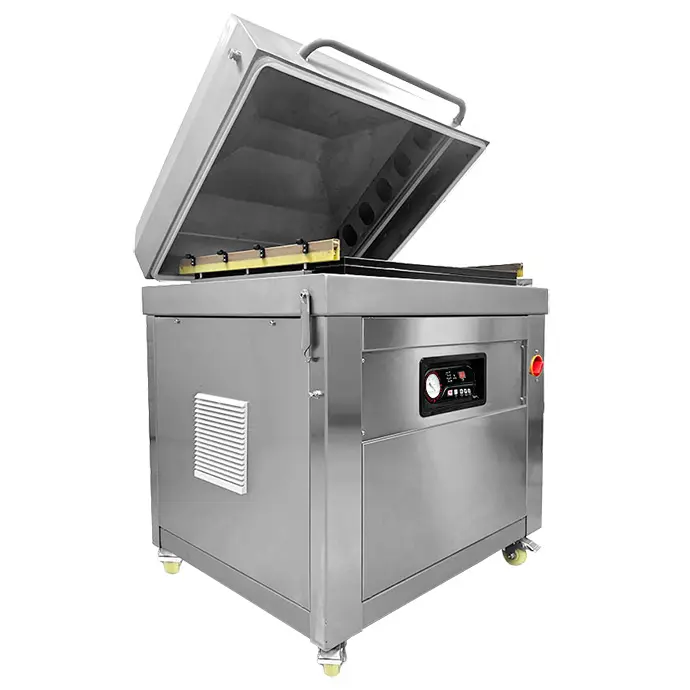

The model GCV-24LRPL is one of the larger single chamber sealers in our Castle Vak Chamber Sealer line - featuring and expanded chamber height. This freestanding unit sits on wheels to move around the production area. Built with simple efficiency in mind, the Castle Vak line was designed to develop a chamber sealer body that can better fit in small work spaces.This unit comes with a hygenic lid made from 304 Stainless Steel for easy cleaning and interior clearance, and a commercial grade vacuum pump, capable of 100m3/h pumping speed. Along with a stronger pump, it also features an expanded chamber size of 33" x 25.5" x 11.5" for larger products.

Take advantage of the benefits of a chamber vacuum vs a nozzle style vacuum sealer - handles liquids and pastes much better! The power and size make the GCV-24LRPL one of the best options for hunters/fisherman processing at home, long term food storage, and small prosumer applications where reliability and safety are important.

220-Volt, 3 phase power supply REQUIRED

IMPAK supplies GCV-24LRPL sealers for applications including:

  • Sous Vide
  • Pet food packaging
  • Test kitchens
  • Beef jerky packaging
  • Bio labs (Non-validatable applications)
  • Fish & game processing
  • Restaurants
  • Many more

NEED VACUUM BAGS? IMPAK recommends our 8.4375" x 12.875" O.D. Vacuum Bags


Material: #304 Stainless Steel GCV-24LRPL Castle Vak Chamber Sealer
Use Space: Floor
Size (LxWxH): 37" x 33" x 46" (940x838x1168mm) Weight: 580 lbs (265 kg)
Power: 13 Amps Max Voltage: 220V/3PH/60Hz
Chamber Type: Single Lid Material: #304 Stainless Steel
Controller: Digital Lid Shape: Domed
Seal Length: 24" (610mm) (x2) Pump Type: Oil
Seal Width: 10mm Pump Capacity: 100m3/h
Seal Bar Position(s): Left + Right Pump Horsepower: -
Seal Bar Distance: 28.7" (729mm) Hot Bar Position: Bottom
Chamber Size: 33" x 25.5" (838x648mm) Chamber Depth: 11.5" (292mm)
Bed Position: Sunken Chamber Volume: ~9,677 in3

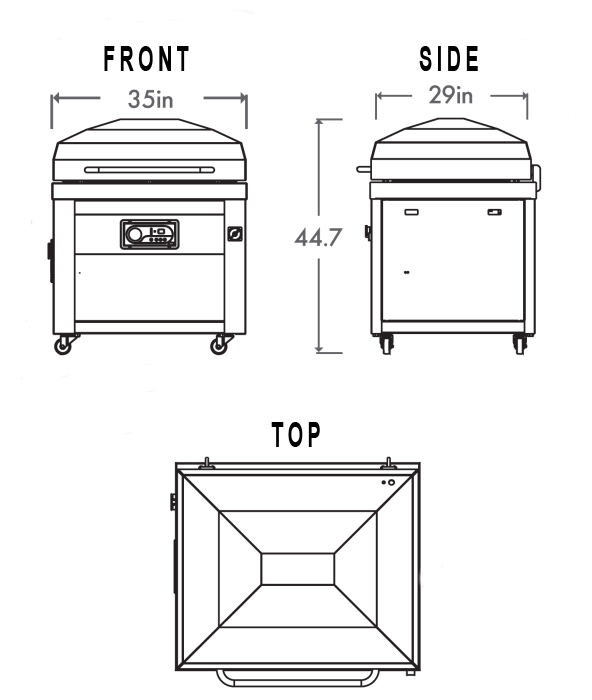

drawing of GCV-24LR with measurements
Castle Vak Sealers
Click on the Part Number for details
Part Number Seal Bar Length Chamber Size Style
GCV-11F 11" / 300mm 11.3" x 15.2" x 5.2" Tabletop
GCV-12F 12.3" / 310mm 13.8" x 12" x 4.3" Tabletop
GCV-16F 16" / 400mm 16.3" x 16.5" x 7" Tabletop
GCV-16LR 16" / 400mm (x2) 16.3" x 16.5" x 7" Tabletop
GCV-24LR 24" / 610mm (x2) 24.7" x 24.7" x 6.3" Single Chamber
GCV-24LRPL 24" / 610mm (x2) 33" x 25.5" x 11.5" Single Chamber
GCVDC-24FB 24" / 610mm (x4) 26.3" x 21.5" x 7.5" (x2) Double Chamber
GCVDC-24FB3P 24" / 610mm (x4) 26.3" x 21.5" x 7.5" (x2) Double Chamber
CHDV-650B 25" / 640mm 25.6" x 31.5" x 17.7" Vertical Chamber
