Nitrogen Generating Kit for Gas Flush Vacuum Sealers

Total Price:
$3,862.40

Part Number: GFXCKT

Available Options

Nitrogen Generator with Sterile Air: Nitrogen Generator (GFXCKT) + Sterile Air Kit (GFSTER) (+$1,680.70)

sterile air kit

Sterile Air Kit Option: Two pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a post filter which results in a sterile nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical. (+$1680.70)

Contact us for availability

sterile air kit

Sterile Air Kit Option: Two pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a post filter which results in a sterile nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical. (+$1680.70)

Contact us for availability

Description

NEVER BUY NITROGEN AGAIN

The Nitrogen Gas Generator produces nitrogen gas (N₂) from any compressed air source by using separation technology to remove oxygen and trace gasses, providing nitrogen at purities between 95% and 99.5%. It can be used as a replacement for heavy and bulky nitrogen gas tanks. Its slick and compact design allows users to integrate this kit with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, customers will not have to worry about depleting a nitrogen gas source; as long as you have clean compressed air, our generator will produce nitrogen.

COMPRESSED AIR SOURCE REQUIRED

Nitrogen Gas Flush Kit comes with:

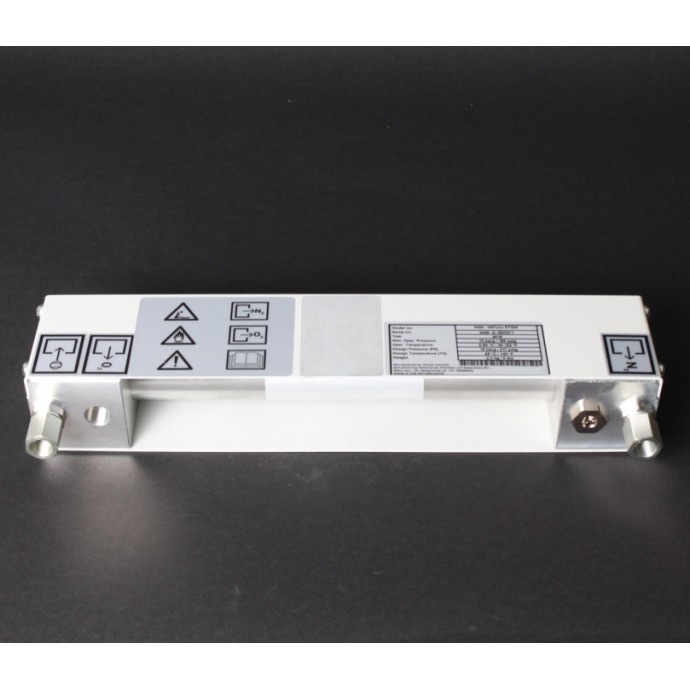

(1) Nitrogen Converter Equipment (P/N: RM11042)
(1) Regulator, Wilkerson (P/N: RM21006)
(1) High Pressure Gauge
(1) Female Straight Fitting - 1/4 & 1/4 NPT
(1) Union Tee Fitting
(2) Filter Regulator Plug 1/4 DIA
(1) Male Elbow Fitting, 3/8T, 1/4NPT
(3) Elbow Fitting, 1/4 x 1/4
1/4" Blue tubing - 36 inch
3/8" Blue tubing - 18 inch

Sterile Air Kit (available option, +$1828.60)

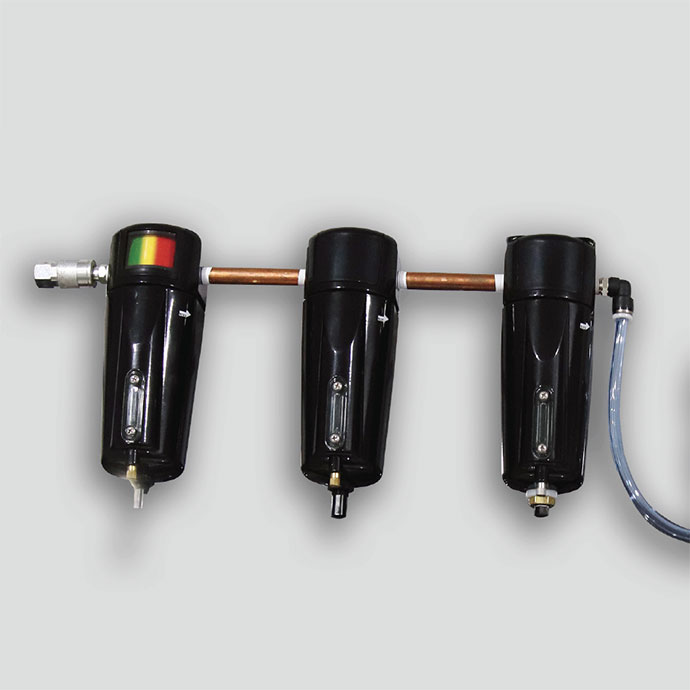

With the Sterile Air Kit added to the Nitrogen Generator, gas flush impurities are virtually eliminated. Two pre-filters with PM indicators remove moisture, oils, dust, and other contaminants from the compressed air flow before they reach the nitrogen generator. After leaving the generator, the air is pushed through a post filter which results in a sterile nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.

Nitrogen generator with Sterile Air Kit

The Sterile Air Kit option is strongly recommended for gas flush applications involving food or sterile packaging, or any use for which contamination must be avoided at all costs.

Compatible Sealers:

Gramatech Vacuum Sealers (including CustomPAK, Workhorse, and Mighty Mutt), Chamber Vacuum Sealers, PVS Series, EVS Series, zVak series, and any custom gas flush enabled vacuum sealers.

Total Net Weight: 7 lbs (14 lbs with Sterile Air Kit)

Specifications on Nitrogen Generator with Sterile Air Kit (PDF)
