21" Dual Retractable Nozzle Vacuum Sealer (PRE-ORDER)

Description Technical Specifications Options Videos Spare Parts Related Products

This machine REQUIRES an external air source with 80-100 PSI
to operate

Need a vacuum sealer that only requires power?

This tabletop vacuum sealer is made from high-grade 304 stainless steel and an aniodized aluminum frame. It's perfect for medium to high production use and comes with dual 0.25" heating elements, Unitronics color touch screen, single-ported exhaust, Venturi vacuum pump, and dual retractable nozzles as standard features.

Note: This unit requires a separate compressed air source capable of providing minimum 80 PSI of clean, dry air.

Specifications:

Model Number: GXVS-21TS
Max. Seal Length: 21"
Standard Seal Width: 0.25"
Electrical: 115 VAC
Vacuum Pressure: 25" Hg

Features:

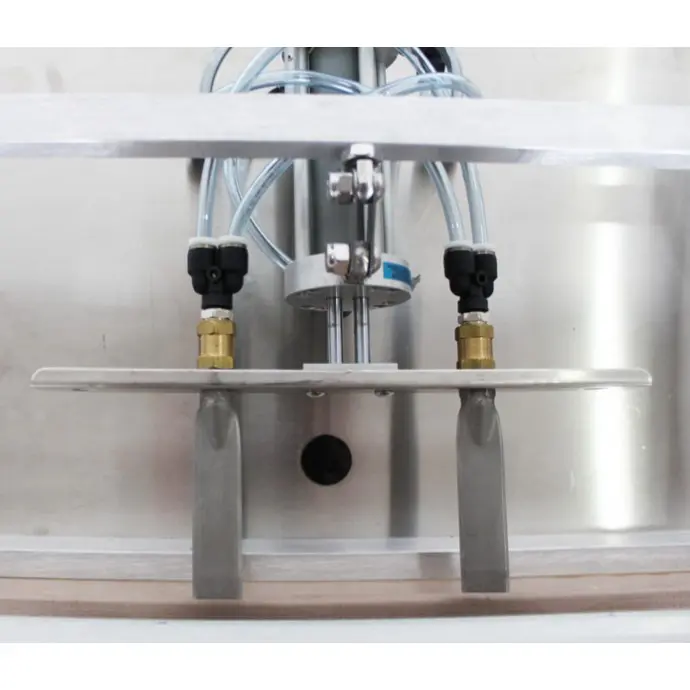

Dual Retractable Nozzles with High-Vacuum Flow Rate
Upper and Lower 0.25" Heating Elements
Unitronics V350 Color Touch Screen with 30 recipe memory
Up to 9-stage gas flush
Venturi Vacuum Pump
Pneumatic Safety-System: Prevents accidental operator injury by use of a back-pressure sensitive micro switch to prevent jaws from locking down in the event an unwanted object (i.e hand or finger) is present in the seal area.
High-Grade Stainless Steel Body, Heavy Duty Anodized Aluminum Frame
Illuminated on/off switch
Emergency stop button on machine face
Handles for portability
Requires External Air Supply (80 PSI clean, dry air)

CSA Certification Announcement

IMPAK is proud to partner with a major Multi-National Pharmaceutical Company and to have been granted a CSA Certification for its industry leading line of Gramatech Vacuum Heat Sealers. “We are now ready to offer CSA registration as an option to our industry leading line of Gramatech Sealers,” according to Rajib Hasan, Managing Director, Machine Group.

As the company General Manager has said, “We are very proud of the machinery we have built to CSA standards.” The story below written by Alan Masnek, our resident Certified Packaging Professional (CPPL) and graduate of University of Wisconsin – Stout, illustrates the steps that were taken to design, develop and produce a piece of equipment for pharma MNC. This particular MNC is just one of the many top medical manufacturing firms we are proud to have produced product for. [see full article.]

INCREASE YOUR THROUGHPUT - ADD TWO NOZZLES TO YOUR GRAMATECH VACUUM SEALER

Gramatech vacuum sealer with four nozzles

Our technicians who build these heat sealers state that the Trident option provides the most value of any option on Gramatech machines.

For more information, see the options tab.

Model	GXVS-21TS
Body	Stainless Steel
Sealing Length	21"
Sealing Width	0.25"
Clean Room Compatible	Yes
Air-Flow Rate	5 cfm/min
Controller	Digital - Unitronics
Adjustable Time	Yes
Programmable	Yes
Saves Recipes	Yes
Optional Dual Element	Standard
Power	110V-120V/60Hz (220V available)
Manual Vacuum Mode	Yes
Weight	84 lb.

Stainless Steel Feeder Tray

The stainless steel feeder tray is a small shelf which is placed against the front of the unit and allows the bag to be at the jaw height for easier sealing of small to medium sized parts.

Clean Room Ready

Machine taken into Class 100 clean room where all surfaces are wiped down with an 80/20 mix of sterile water/isopropyl alcohol then double bagged and sealed in virgin poly bags.

3rd Party Certification

3rd Party Certification is provided independent company who calibrates the unit for time, temperature and pressure. Upon completion a certification label with date is applied to the unit and PM/re-certification is generally done yearly.

220V Conversion

This option allows the user to operate the unit in a facility where 220V is needed or present.

0.375" Seal Width Upgrade

This upgrade changes out the standard 0.25" elements up to a full 0.375" each for a wider and more visual seal.

Extra Set of Nozzles (Trident System)

We will add an additional set of retractable nozzles which will allow you to vacuum seal up to four small bags or two medium to large sized bags at the same time. Check the Trident Nozzle option on your order.

PLEASE NOTE: If you order the Trident Extra Nozzle Set option (GO-221) and you also wish to upgrade the speed of your sealer with higher vacuum flow, you will also need to purchase the 10CFM High Flow Vacuum (OPBTVD.)

iS² System Upgrade

The iS² (Intelligent Sealing System) is a control system for heat sealing equipment that offers pin-point digital control over time, temperature, and pressure, via touch screen interface.

The system is more than a digital control upgrade, it combines an advanced Siemens PLC and HMI with proprietary pneumatic and electrical components, to deliver temperature control within one degree, accurate sealing time with readings every millisecond. Additional conveniences such as recipe storage, operator locks, and graphs of time/temperature put iS2 enabled sealers in a class of their own. Validation ports allow the user to confirm all parameters from a 3^rd party calibration/certification service and data is available to be sent to a dedicated terminal to track and record all seals made by the unit.

Stainless Steel Stand

All Stainless Steel means easy to clean, durable and able to perform year after year in almost any packaging environment.

User can adjust stand height from 38”, 43”, and 48” to accommodate user’s needs.

Stainless Steel Shelf with Product Stop

The stainless steel shelf and product stop mounts to the GST-801 and allows the operator to place the bag on top with product stop to prevent it from sliding down and hold the bag taut while the seal jaws come together.

Sterile Air

Two Pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a Sterile Nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.

10 CFM

Increases CFM from 7.8 to 10 CFM by installing an additional Venturi to the vacuum nozzle assembly.

Sterile Air

Nitrogen Generator Kit

The Nitrogen generator produces Nitrogen gas (N₂) from a standard compressed air line. This model is designed to generate Nitrogen at purities between 95% and 99.5%.

The Nitrogen generator can be used as a replacement for heavy and bulky Nitrogen gas tanks. Its slick and compact design allows users to integrate this with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about a depleting Nitrogen gas source, as our generator produces Nitrogen from a clean compressed air source.
