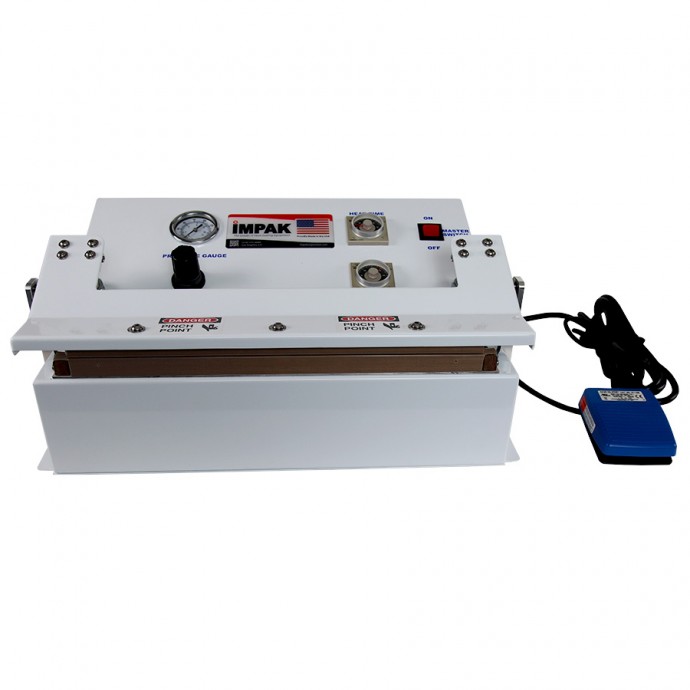

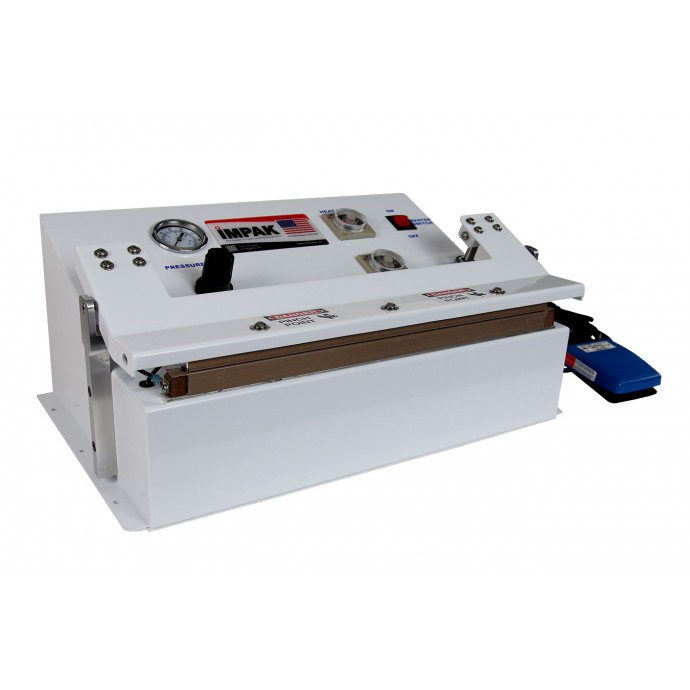

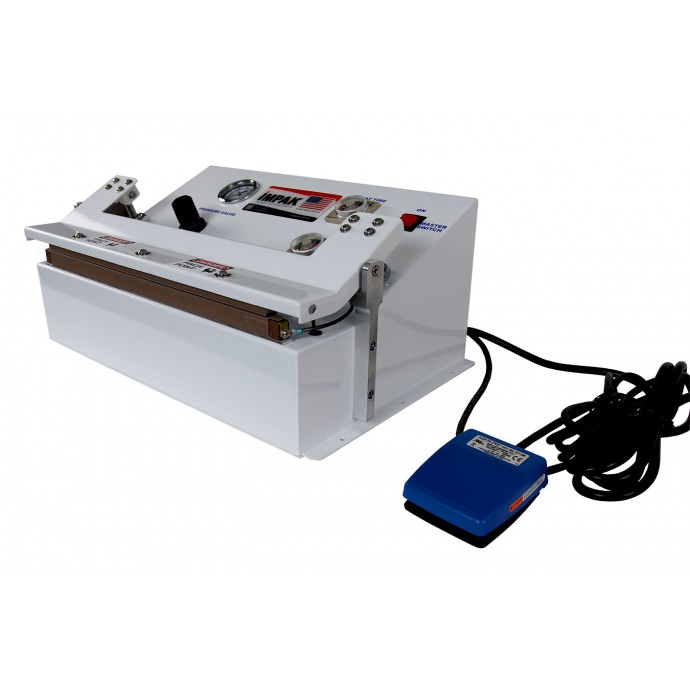

Each pneumatically powered bag sealer unit has sufficient jaw clearance to introduce your package from back to front or side-to-side. Standard controls include a glycerin filled gauge, pressure regulator, separate heat and cool timers and a tap to start foot pedal. This ensures that each bag seal will be airtight and water tight. All IMPAK bag sealers are powder coated and therefore clean room compatible.
PRE-ORDER ITEM: Due to the limitation of ecommerce programming, it shows as “in stock” item. This is a Pre-Order sealer machine that needs to be built. Contact us for expedited orders and current lead times

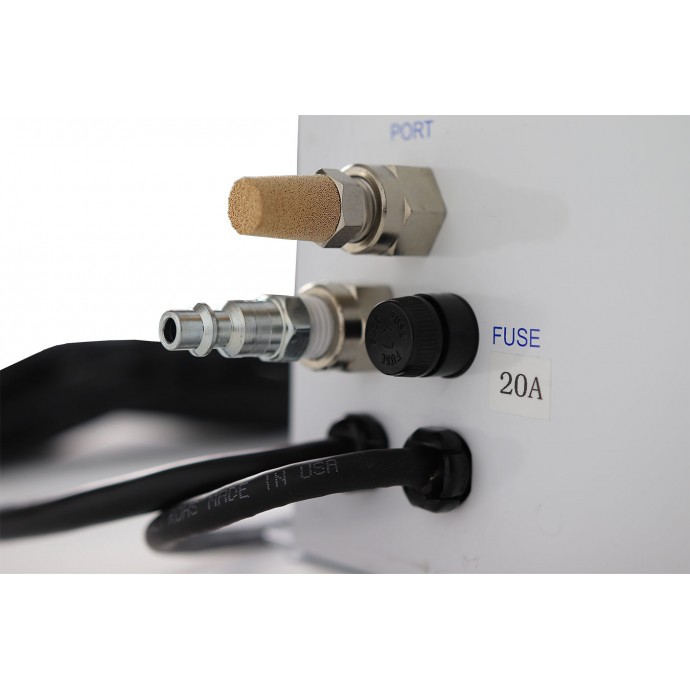

This unit requires a separate compressed air source capable of providing 80 PSI of clean, dry air.
Features include:

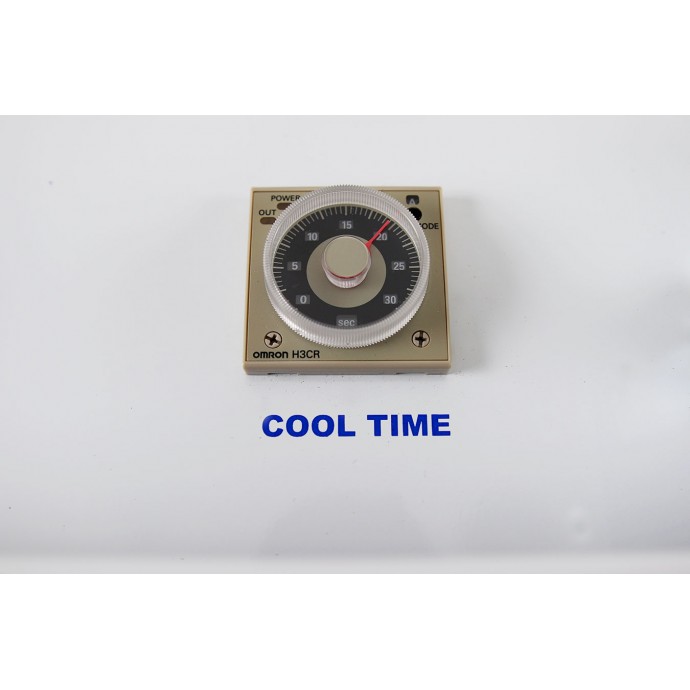

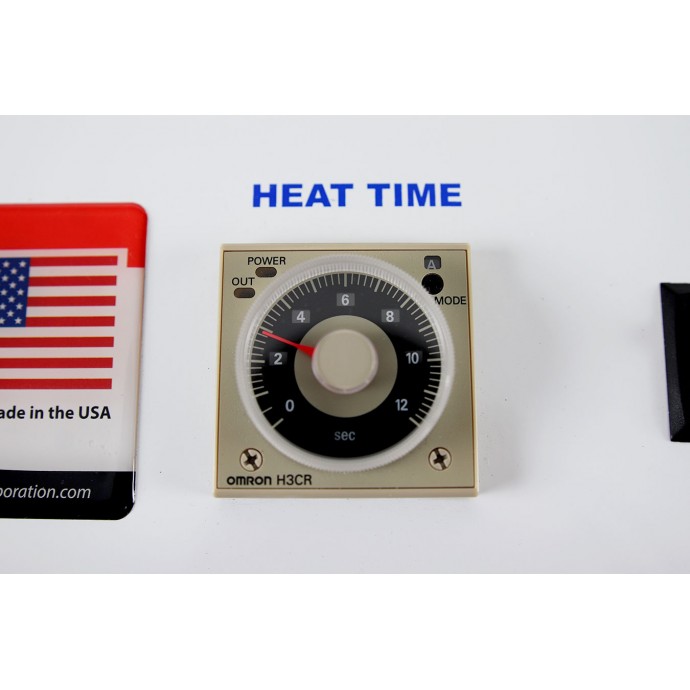

- Analog timers for heat and cool

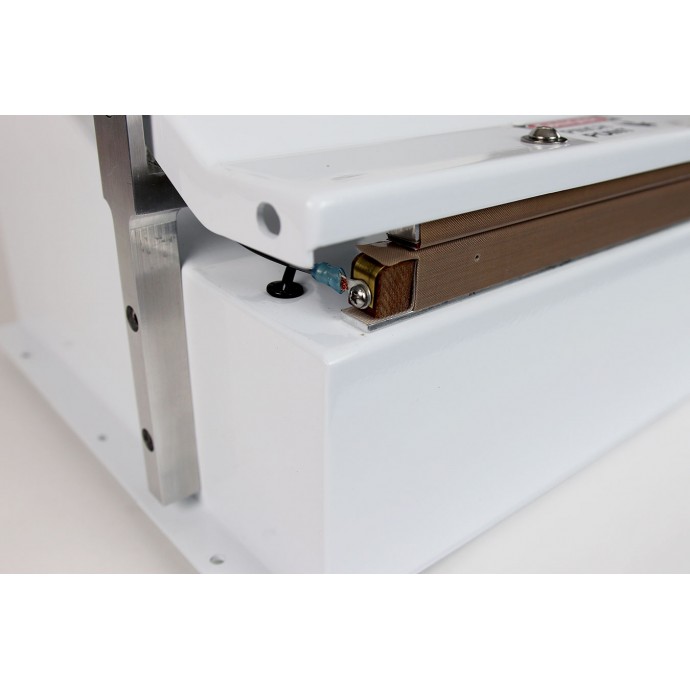

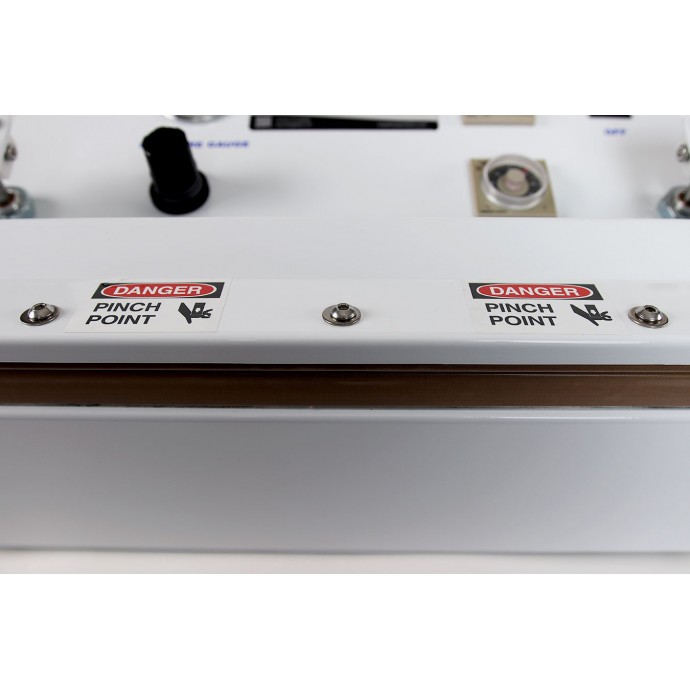

- Pneumatically actuated sealing jaw

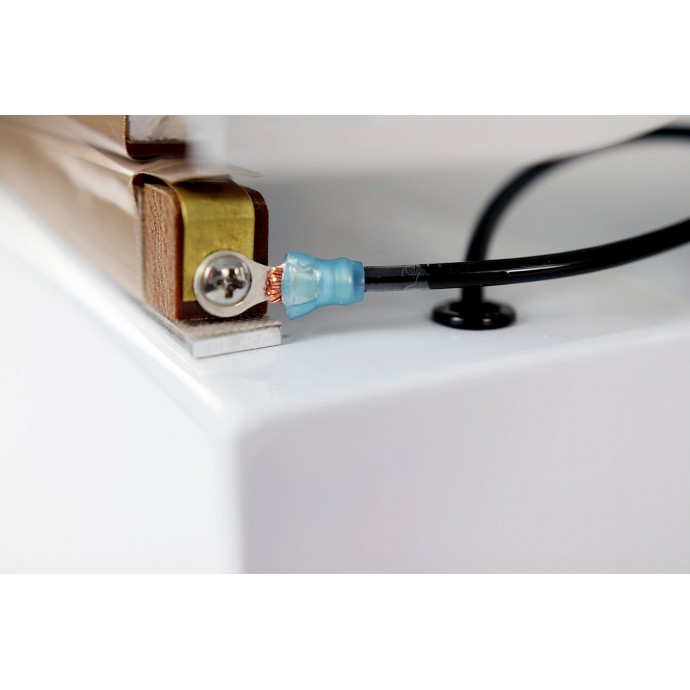

- 15" x 0.25" nichrome heating element
- Jaw clearance for side to side material feed
- Airtight and watertight seals

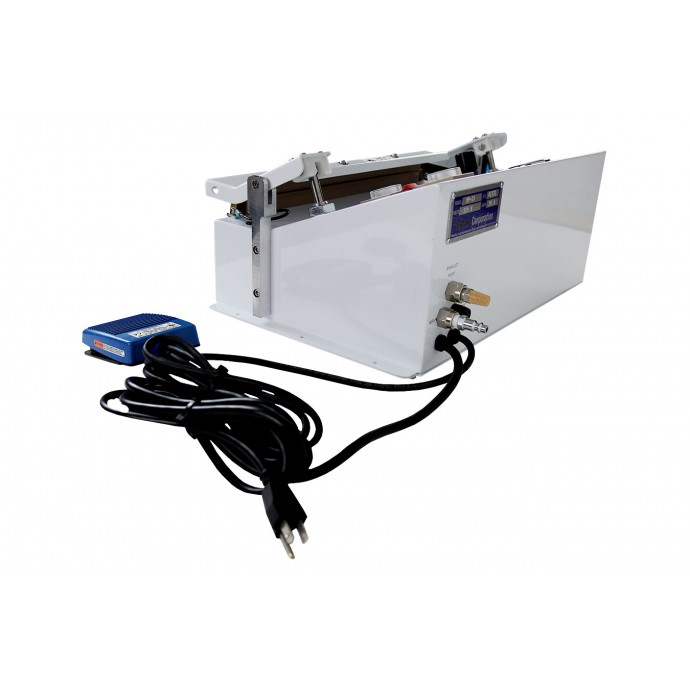

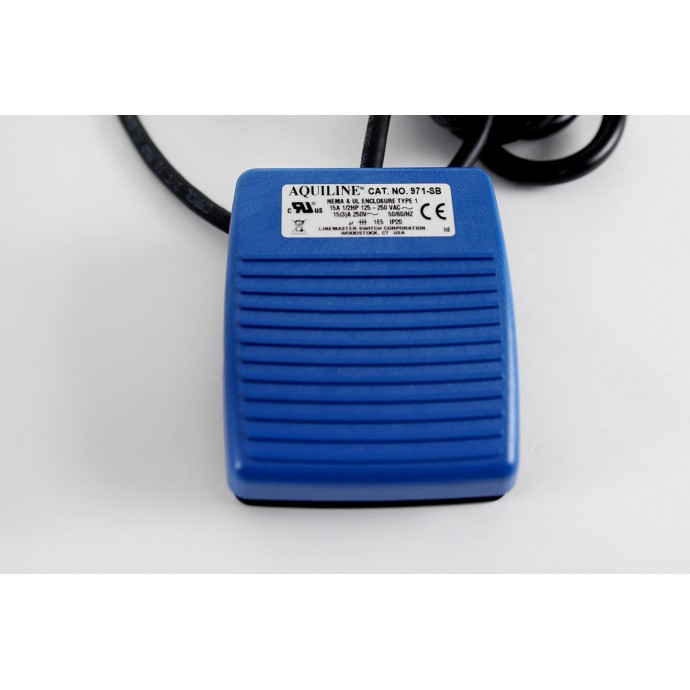

- Foot pedal operated
- Bottom flange allows for horizontal or vertical mounting of machine
- Low pressure close

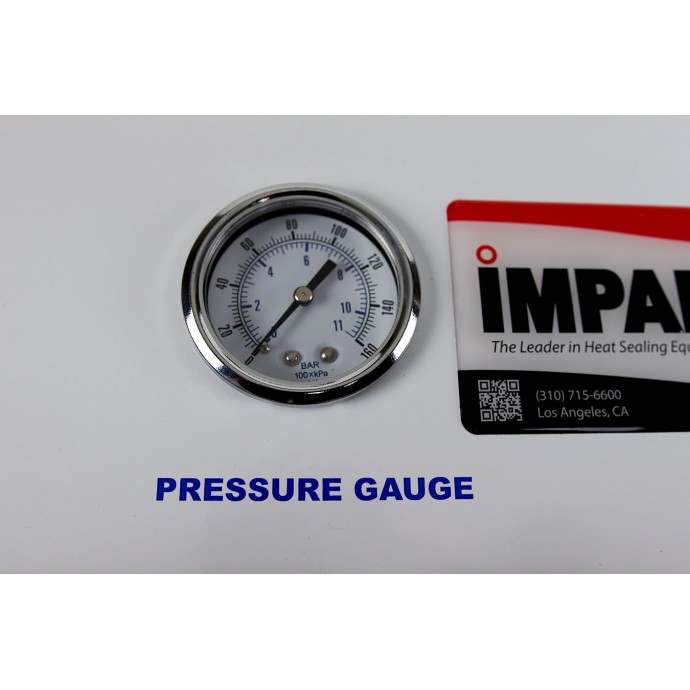

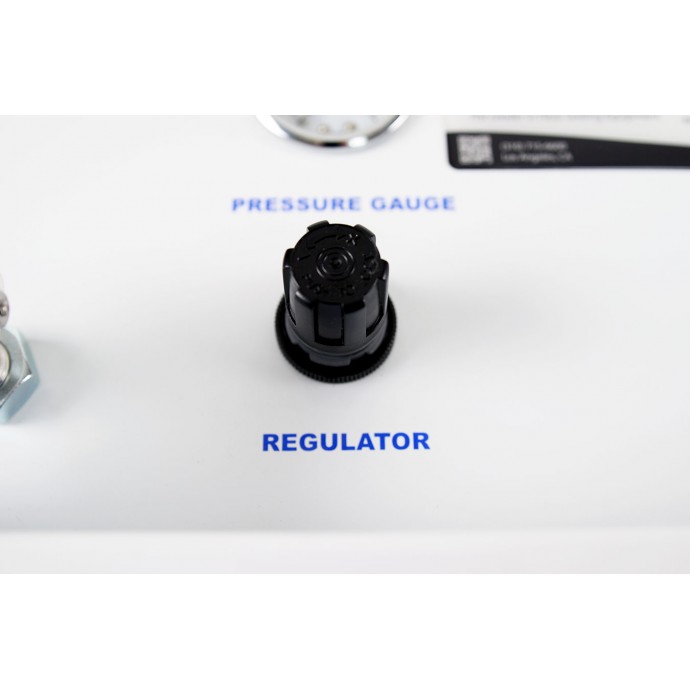

- Analog pressure regulator and display
- 120V/60Hz/10 amps
- Heavy duty steel construction
- Made in USA
DIMENSIONS (L x W x H): 18.5" x 12" x 8.5"
SHIPPING WEIGHT: 40 lbs.
One year warranty parts and labor not including consumables, and detailed operating instructions. Spare parts kit sold seperately.
Demo of Tabletop Impulse Bag Sealer
Part Number: MPXSPPT15
Single Element Spare Parts Kit
Includes:
(1) 0.25" wide, 15" Long Heating Element
(1) 1/16" thick x 1/2" wide silicon strip
(2) 6 mil thick, 2" wide, 15.25" Long Teflon covers with adhesive strips
(2) 10 mil thick, 0.5" Wide, 15.25" Long Teflon Strips with Adhesive Backing
Part Number: MPXSPPT15D
Dual Element Spare Parts Kit
Includes:
(2) 0.25" wide, 15" Long Heating Element
(2) 1/16" thick x 1/2" wide silicon strip
(2) 6 mil thick, 2" wide, 15.25" Long Teflon covers with adhesive strips
(4) 10 mil thick, 0.5" Wide, 15.25" Long Teflon Strips with Adhesive Backing
