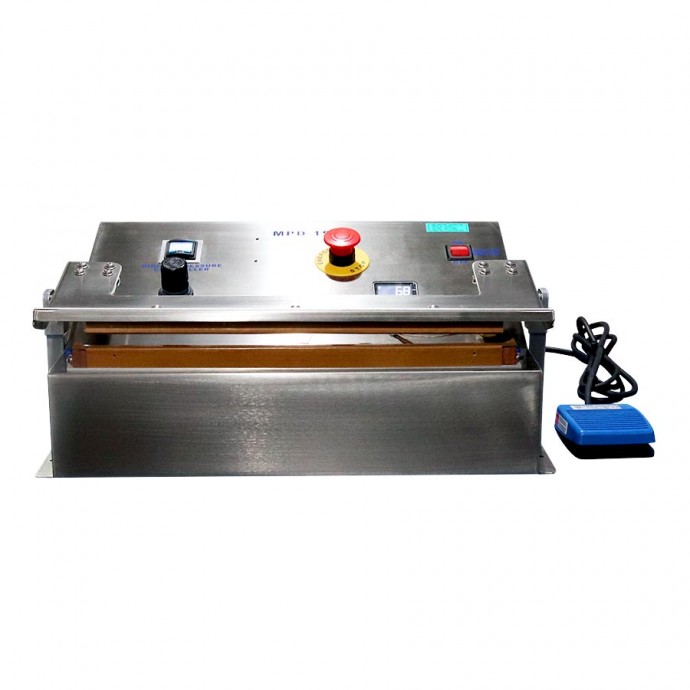

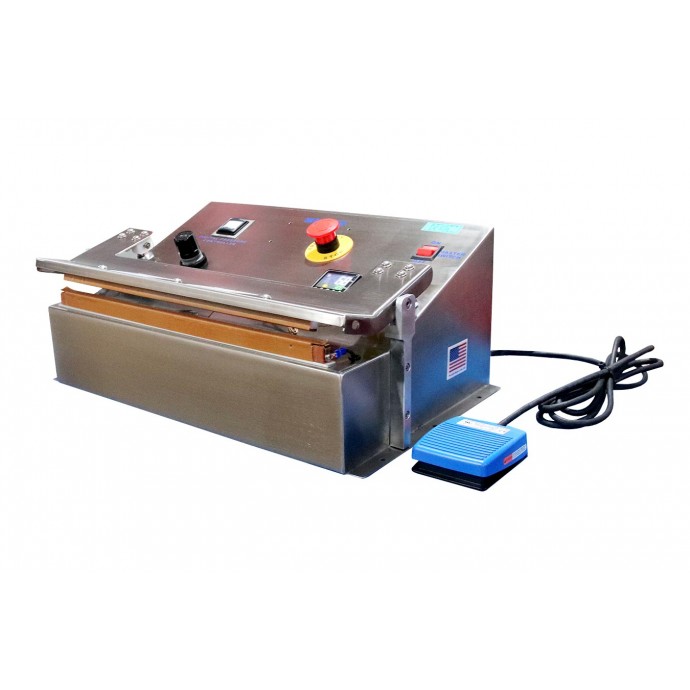

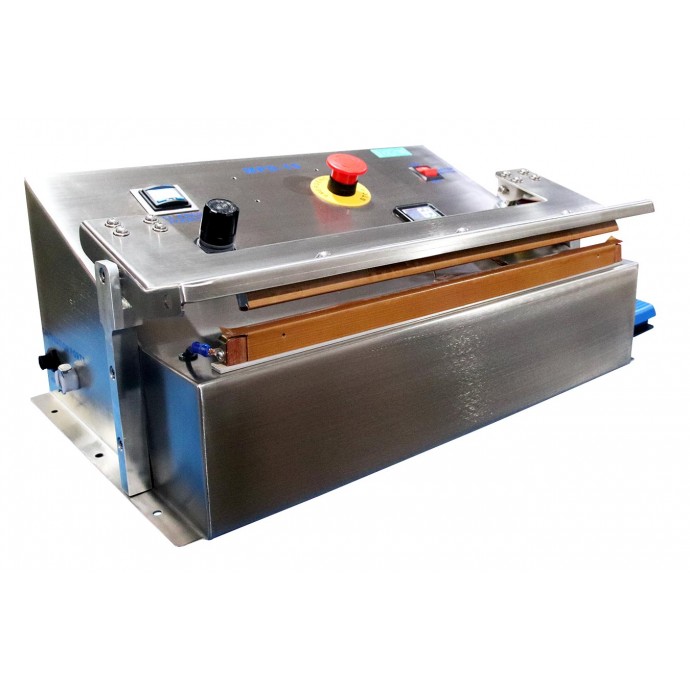

MPDSS-15 - 15" Validatable Impulse Sealer (PRE-ORDER)

Total Price:
$5,777.35

Part Number: MPDSS-15

Available Options

Clean Room Ready: Clean Room Ready * (+$775.00)

220V Power Operation: 220V Power (+$225.00)

Bi-Active Seal: MPD15-OPBAS: Make Dual Heat (+$250.00)

Spare Parts: Single Element Spare Parts Kit - MPXSPPT15 (+$228.30) Dual Element Spare Parts Kit - MPXSPPT15D (+$249.70)

Third Party Calibration: Calibration by third party lab (+$1,100.00)

Description Videos Spare Parts Related Products

PRE-ORDER ITEM: This is a Pre-Order sealer that needs to be built. Contact us for expedited orders and current lead times.

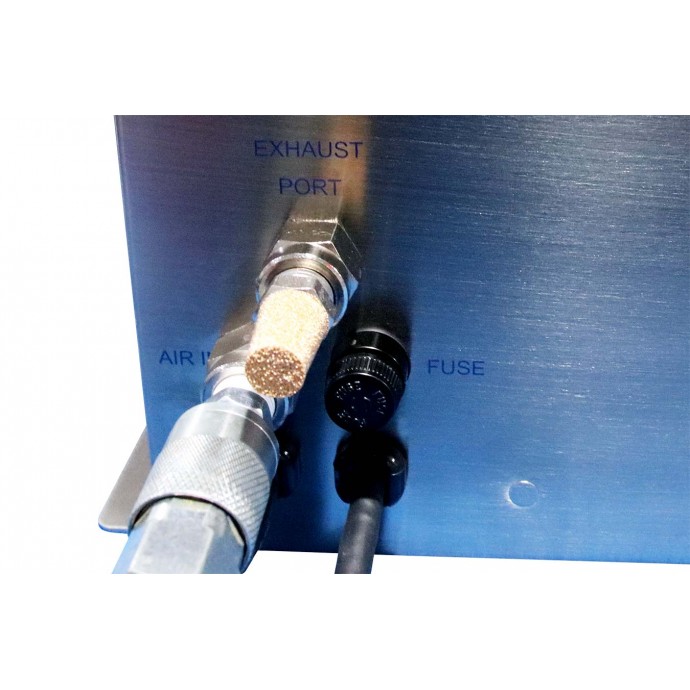

This unit requires a separate compressed air source capable of providing 80 PSI of clean, dry air.

NOW AVAILABLE WITH UPDATED, ULTRA ACCURATE, HIGHLY RELIABLE IMPULSE HEAT SEALER (OMRON)

Our MPDSSline of medically validatable sealers are an industry standard where traceability and data tracking are necessary. All units can be NIST certified by an independent third party lab and seal parameters set for repeatable results. Each unit comes standard with the following:

15" maximum seal length, heavy duty stainless steel body, clean-room ready.

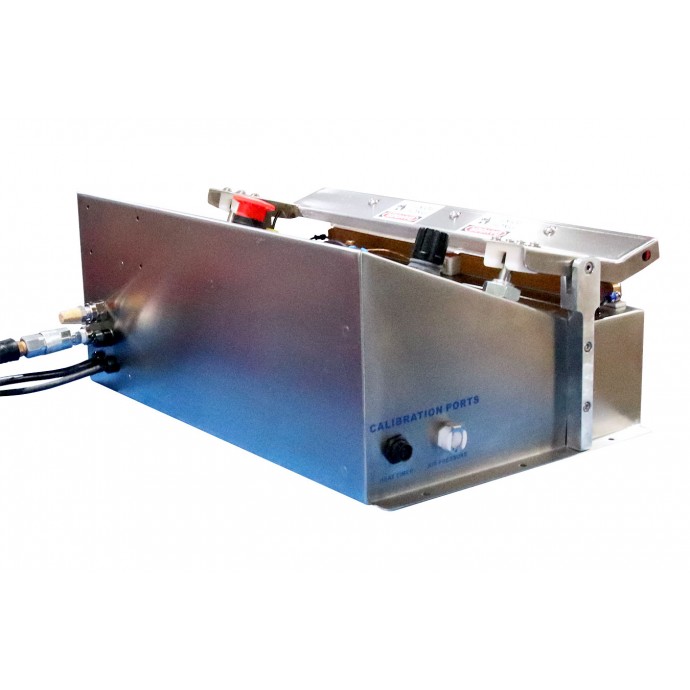

Validation ports for seal pressure, seal temperature and seal time
K-Type thermocouple
Pneumatically actuated sealing jaw
15" seal length

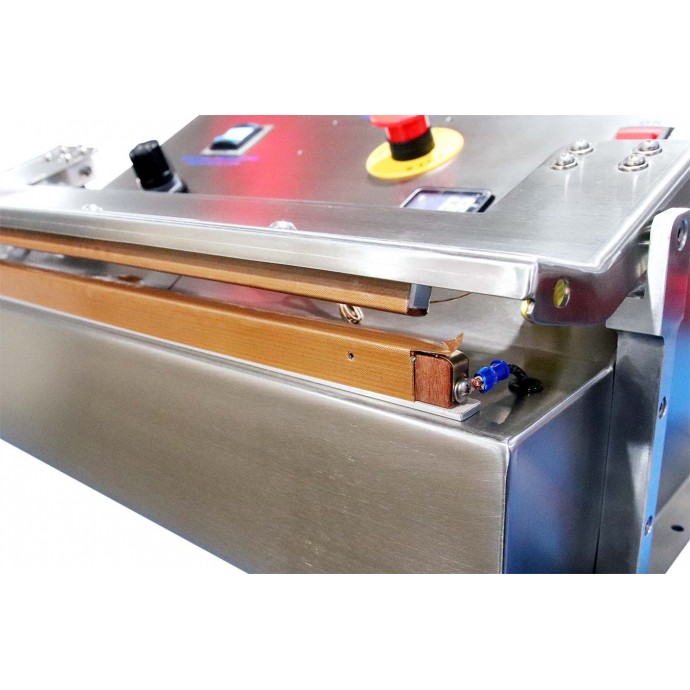

0.25" wide nichrome heating element
Jaw clearance for side to side material feed

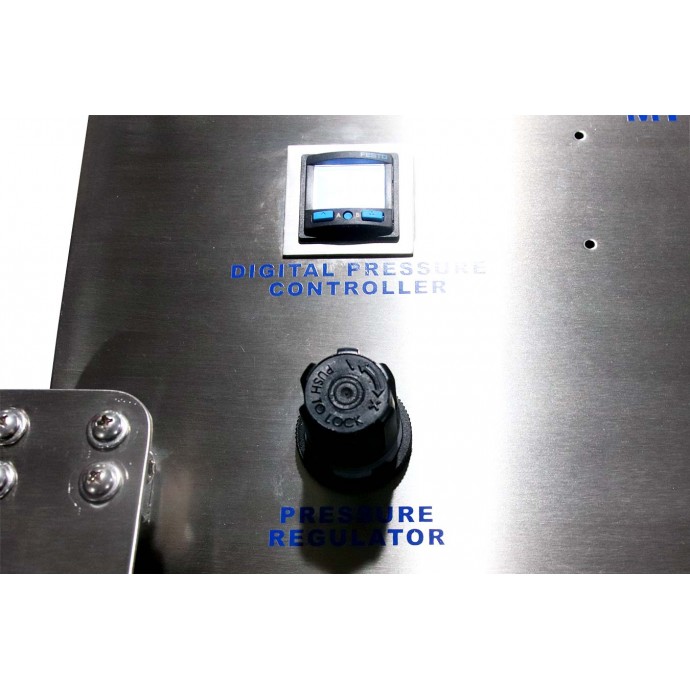

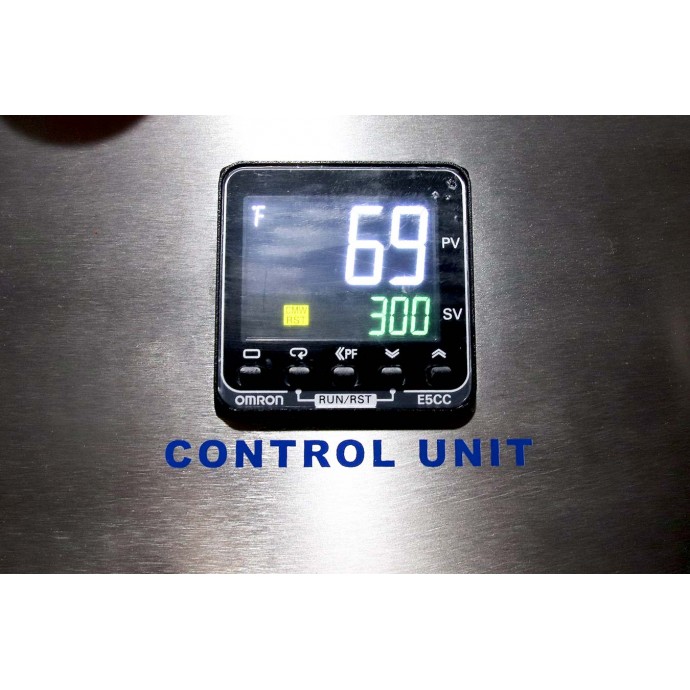

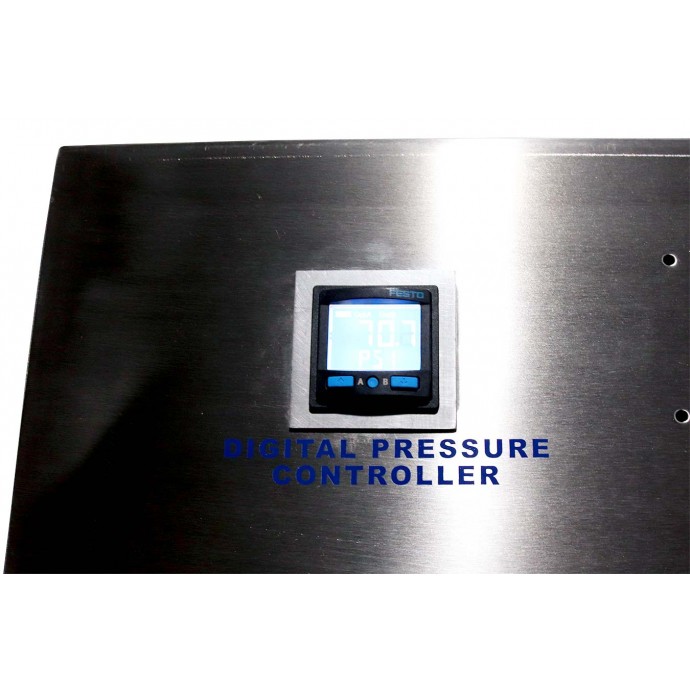

Digital pressure gauge, digital proportional valve, and Impulse Heat Sealer (OMRON)

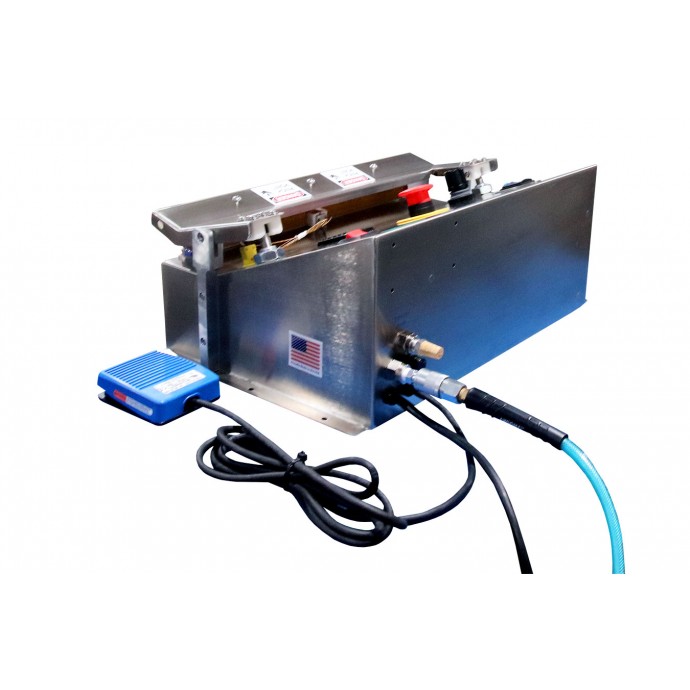

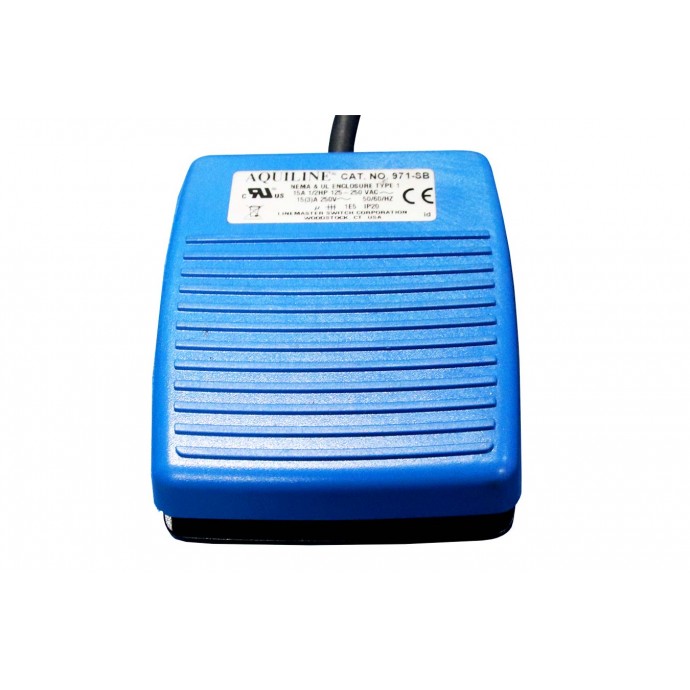

Foot pedal operated
Airtight and watertight seals
Bottom flange allows for horizontal or vertical mounting of machine
120V/60Hz operation (220V option available)

*IMPAK realizes that some of our valued customers may have an expedited need for production of this machine. Please contact our machinery department to discuss options for expedited orders.
