clear high barrier film roll

When an ultra-high barrier film is required, we usually recommend one of the many heavy duty foil structures we have available, such as PAKDRY7500. Clearly, however, opaque structures are unsuitable when it is necessary (or desirable) to see the contents inside of your package. Whether you are conducting tests on bacteria growth in a soil sample, or you sell visually appealing moisture-sensitive bath bombs, you need a clear pouch with a high barrier against the elements. Through chemical treatments and co-extrusion and lamination techniques we can provide clear materials with near unbeatable barrier levels. We also work with customers who have more specific needs to develop custom clear high barrier multi-layer film specs.

clear high barrier film roll
Not just science fiction any more.

The quality tested materials and products listed in the table below all offer transparency with high oxygen and moisture barrier properties.

* MVTR (Moisture Vapor Transmission Rate) in gr/100in2/24 hrs
** OTR (Oxygen Transmission Rate) in cc/100in²/24 hrs
Material Thickness MVTR* OTR** Qualities
PAKPM4AO 3.0 mil 0.303 0.032 Includes an Aluminum Oxide layer for superior barrier qualities; boilable, microwavable, can be vacuum sealed
PAKPM4 3.0 mil 0.5 0.6 Popular relatively thin structure with good protection against corrosion and oxidation
FlexxiGlass 3.2 mil 0.00258 0.00516 Our newest and highest-barrier transparent laminate structure
ConservAclar 4.5 mil <0.005 .15 Ultra high barrier moisture protection; used by museums for protecting art & artifacts
PAKPM5 5.0 mil 0.4 0.5 Significant moisture and oxygen barrier properties; boilable, freezable, microwavable
PAKPM56 5.6 mil 0.3 0.5 Thickest clear barrier structure; boilable, freezable, microwavable
Applications

Transparent high barrier pouches have a variety of uses, including:

  • Molecular diagnostics
  • Scent/odor control
  • Humidity/oxygen monitoring
  • Medical diagnostic panels
  • Archival documents
  • Microwavable food
  • Freeze dried/lyophilized products
  • Moisture sensitive compounds
  • Metal detector safe packaging
  • Pharmaceuticals & supplements
  • Sterilization packaging
Print on Clear Film Pouches

custom printed clear high barrier pouches

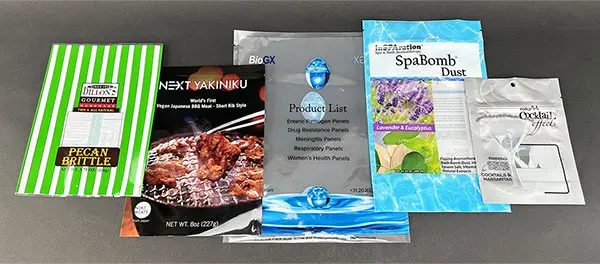

IMPAK has helped many customers in need of transparent high barrier packaging with custom printing. The pouches pictured above are each made from one of the materials listed on this page and they all feature custom printing facilitated by our team. As you can see, this style of packaging allows contents to be visible while also securely protected from moisture and oxygen.

Need more information about clear barrier packaging applications? Contact our experts

The products below all feature our transparent high barrier film structures.

If these products don't fit your needs, IMPAK makes customer-specified pouches and even custom laminations.
Sort By:
Show:
printed pastry pouch
About: 5" x 6" 3-side seal label-ready printed pastry bag with window and tear notch. View window..
$87.50
White pouch with printed cookie on front
About: 5.0" x 6.0" 3-side seal label-ready printed cookie bag with tear notch. Great pastry bag f..
$87.50
7.5" x 4.0" O.D. PAKPM4 Currency Slider pouch
7.5" x 4.0" O.D. PAKPM4 Currency Slider pouch; 500/case   Features Slider Zippers for eas..
$179.10
2.5" x 6.0” OD Transparent Finseal Pouch
About: 2.5" x 6" OD Transparent MiniPouch with finseal; tear notch located at 0.5" on either side..
$57.20
3.125" x 5" x 2" Clear Stand Up Pouch
About: 3.125" x 5.0" x 2.0" OD Transparent Stand Up Pouch with ZipSeal and Tear Notch Qua..
$118.91
4.375" x 7.25 " x 2.75" SpoutPAK™ with Tamper Evident Cap
About: 4.375" x 7.25 " x 2.75" SpoutPAK™ with Tamper Evident Cap, 9.6mm Inner Diameter and 6mm Ha..
$137.50
clear vacuum bag with zip seal
About: 13.0” X 18.0” OD Clear Boilable / Microwavable Vacuum Pouch with ZipSeal Quantity: 2..
$247.50
20” x 24” Clear Boilable Vacuum Pouch with ZipSeal
About: 20.0” X 24.0” OD Boilable / microwavable vacuum pouch with ZipSeal and 0.125" Lip  ..
$99.00
2” X 3” Transparent Pouch with ZipSeal
About: 2.0” X 3.0” OD Boilable / microwavable vacuum pouch with ZipSeal and Tear Notch Quantit..
$196.40
clear vacuum pouch with zip seal
About: 8.0” X 10.0” OD Boilable / microwavable vacuum pouch with ZipSeal 100/PE bag Quantity: ..
$206.25
4.0" x 7.5" x 3.25"  Stand up pouch with Water proof Zipper
About: 4.0" x 7.5" x 3.25" O.D. Stand up pouch with Water proof Zipper and tear notch Quantity..
$151.99
4” x 6.41” x 2.25” Clear Stand Up Pouch
About: 4” x 6.41” x 2.25” Transparent Stand Up Pouch with ZipSeal, Tear Notch and Rounded Corners..
$119.14
Clear Stand Up Pouch
About: 11" x 11" x 5.75" O.D. Clear Stand Up Pouch with ZipSeal, Tear Notch, and Rounded Cor..
$160.80
4.375” x 5.0” OD Transparent 3-Side Seal Pouch with Tear Notch and 0.125” Lip; (1,000/case) - 04375MEV05BTNL
About: 4.375” x 5.0” PAKM35EV 3-side seal transparent pouch with tear notches 0.625” from sealed ..
$99.40
Transparent Gold Stand Up Pouch
About: 7.0" x 11" x 2.5" OD Transparent Gold Stand Up Pouch Bag with ZipSeal and Tear n..
$92.91
two high barrier QX pouches with green and yellow beads in left pouch and purple beads in right pouch
.qx-compare-table-wide { display: block; max-width: 950px; margin: 0 auto; ..
$47.48
Clear Stand Up Pouch
About: 11" x 16.2" x 5.75" OD Clear Stand Up Pouch with ZipSeal, Tear Notch, and Rounded Corners ..
$244.41
Empty clear Fin seal bag with enlarged sombrero hanging hole
About: 7.625" x 11.5" O.D. Finseal bag with sombrero hang hole Quantity:  1000/case&nb..
$149.80
Large clear microwavable stand pouch with zipper seal, tear notch and rounded corners
About: 14.5" x 19" x 6.0" OD  Clear boilable/microwavable stand up pouch with ZipSeal a..
$302.50
open bottom clear pouch filled with yellow beads
About: 5" x 8" OD PAKPM4AO Transparent High Barrier Pouch with Tear Notch 0.75" from sealed end a..
$199.30
Clear Fin Seal pouch
About: 5.5" x 7.5" Clear Fin Seal pouch Great for food packaging. Quantity: 2,000/c..
$270.00
14.125” X 10.25” 3.0 Mil Clear Pull Tab Zipper Pouch
About: Size: 14.125” X 10.25” O.D.  Format: Zipper bag with plastic pull tab zipper Tr..
$149.80
single transparent zippper pouch with widened zip
About: 20.0" x 30.0" O.D. Transparent Mylar Pouch with Wide Flange Zipper 1.25" from open end and..
$299.20
4.0" x 7.5" x 3.25" O.D. Sterile Stand Up Pouch
4.0" x 7.5" x 3.25" O.D. PAKPM4 Sterile Stand Up Pouch with Tear Notch and Zipper Outer layer of ..
$125.10
