Stainless Steel Band Sealer with Printer and Analog Controller - Right to Left - RSH1575SS
We Modify Band Sealers to Fit Your Specific Need

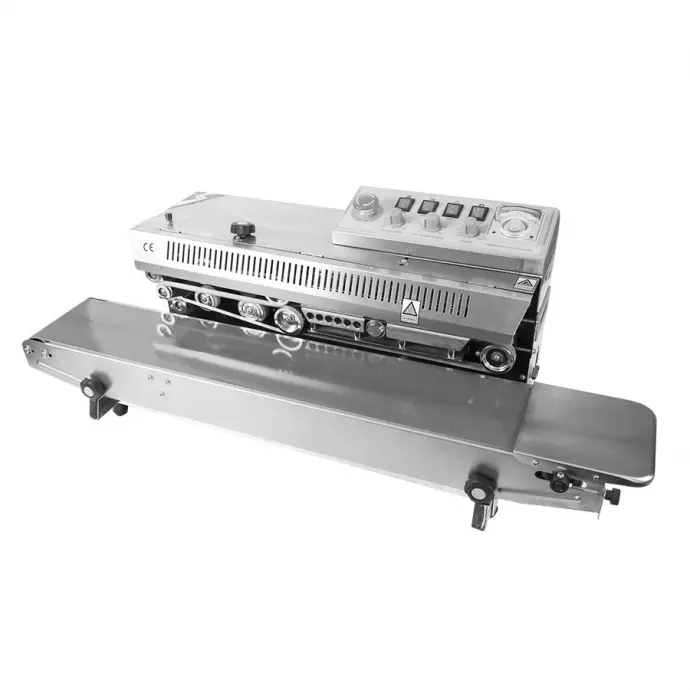

This horizontal tabletop RapidSealer TM (Band Sealer) is designed to be used almost right out of the box, and can be set up in 5-10 minutes. This RapidSealer TM sealer has a right to left configuration and the bag is fed from the right side of the unit.
Stainless steel frame
Analog temperature control
Stepless speed control
Emergency stop button for operator safety
Breaker protected
Seal Speed: 0-320" per minute (0-12m per minute)
Adjustable Seal Width: 0.125" - 0.625" / 3mm - 16mm
Temperature Range: 32-572º F / 0-300º C
Voltage/Hz: 110v/60Hz
Power: 500W / 4.55A
Maximum Load on Conveyor: 12 lbs. / 4.5 kg
Weight: 78 lbs. / 35.3 kg - Ships common carrier no pallet required
WARNING: Spare Parts & Accessories are now SOLD SEPARATELY!
In order to reduce the base price of our RapidSealers, we no longer supply accessories and spare parts with each unit. This allows our customers to select these add-ons only as needed.
Spare Parts Kit is HIGHLY RECOMMENDED.
Purchase spare parts kit with machine at $199.40 instead of regular price at $259.95.
Spare Parts Kit for RSH1575 RapidSealers
81XSPPRKT
INLUDED ITEMS:
- (10) 15.25" PTFE Fluoropolymer Bands
- (2) 17.0" Urethane Drive Belts
- (1) Temperature Control Printed Circuit Board
- (1) Dry Ink Printer Heating Element
- (4) Clutch Belts
Consumables:
- 81XCNVRBLT: Conveyor Belt for RS1575 Sealers
- 81XCRGDKNB: Corrugated Knob for RS1575 Sealers
- 81XSMLPLBRG: Small Pulley Bearing for RS1575 Sealers
- 81XBRSHKT: Brush Kit for RS1575 Sealers
- 81XFDNGDE: Feeding Guide for RS1575 Sealers
- 81XKNBKT: Knob Kit for RS1575
- 81XSWTH: Switches for RS1575 Sealers
- 77XDRVWHL: Urethane Belt Drive Wheel for RapidSealers
- 81XMBSNRLST: Embossing Roller Seat for RS1575 Sealers
- 81XSLCNWHSFT: Silicone Wheel Shaft for RS1575 Sealers
- 81XIKWHCV: Ink Wheel Holder for RS1575
- 81XIKWHTNBLK: Ink Wheel Holder for RS1575 Sealers
- 81XPWRLN: Power Line for RS1575 Sealers
- 81XDRVNWHST: Drive Wheel Seats for RS1575 Sealers
- 81XLWPNHRLR: Lower Pinch Roller for RS1575 Sealers
- 81XUPPNHRLR: Upper Pinch Roller for RS1575 Sealers
- 81XCTBLT4P: Pack of 4 Clutch Belts for RS1575 Sealers
- 81XDRVNWHL: Driven Wheel for RS1575 Sealers
- 81XIKRHTNLMN: Ink Roller Heating Element
- 81XINKWHBLK: Black Ink Wheel for RS1575 Sealers
- 81XINKWHRD: Red Ink Wheel for RS1575 Sealers
- 81XPNWHL: Pin Wheel for RS1575 Sealers
- 81XSLCNWHL: Silicone Wheel for RS1575 Sealers
- 81XHRZDRVSH: Main Horizontal Drive shaft for RS1575
- 81XPNTRSNR: Printer Sensor for RSH1575 Sealers
- 81XSTTCVR: Safety Cover for RS1575 Sealers
- 81XBKRCVRBLT: Back Roller of Conveyor Belt for RS1575 Sealers
- 81XURTBLT2P: 2 Pack of 11.5" Urethane Belts for RS1575 Sealers
- 81XHTNLMNT2P: 2 Pack of Heating Elements for RS1575 Sealers
- 81XLWCLNBLK: Lower Cooling Block for RS1575 Sealers
- 81XUPCLNBLK: Upper Cooling Block for RS1575 Sealers
- 81XNMBRKT: Number Kit for RS1575 Sealers
- 81XLWHTNBLK: Lower Heating Block for RS1575 Sealers
- 81XUPHTNBLK: Upper Heating Block for RS1575 Sealers
- 81XMBSNWHL: Embossing Wheel for RS1575 Sealers
- 81XSPDRGTPCB: Speed Regulating PCB for RS1575 sealers
- 81XKRLCMPWH: Knurled Compression Wheel for RS1575 Sealers
- 81XMNCLPCB: Main Control PCB for RS1575 Sealers
- 81XCLNBLK2P: 2 Pack of Cooling Blocks for RS1575 Sealers
- 81XLTTRKT: Printing Letter Kit for RS1575 Sealers
- 81XHTNBLK2P: Pack of 2 Heating Blocks for RS1575 Sealers
- 81XAXLFN: Axial Fan for RS1575 Sealers
- 81XTFNBD1575-10P: 15.75" Teflon Bands for RS1575 Sealers
- 81XURTBLT10P: 10 Pack of Urethane Drive Belts 11.5" for RS1575 Sealers
- 81XLTRTGRBX: Left to Right Gearbox for RS15252 Sealers
- 81XRTLFGRBX: Right to Left Gearbox for RS1575 Sealers
- 81XMTR: Motor for RS1575 Sealers
- 81XTMPCNTL: Temperature Control for RS1575 Sealers
