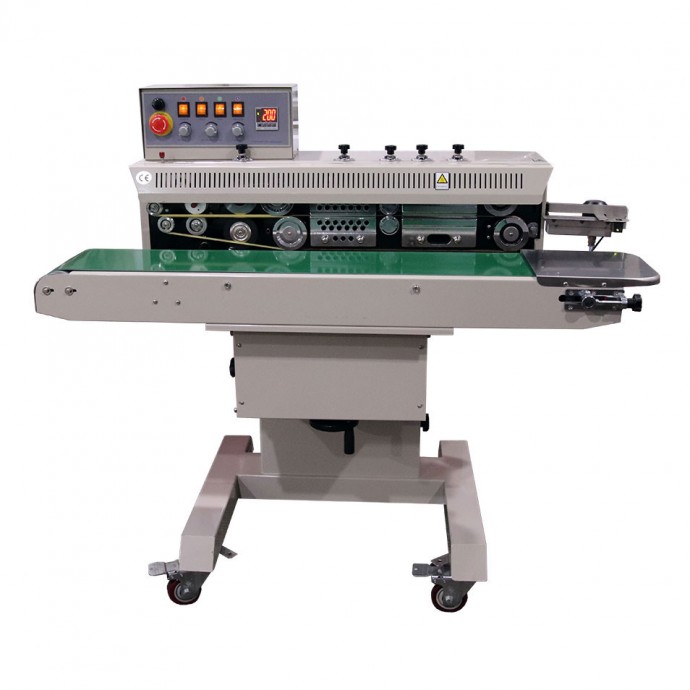

Powder Coated Horizontal Band Sealer - Right to Left - RSH2225PC
We Modify Band Sealers to Fit Your Specific Need
This horizontal unit is designed to be used almost right out of the crate, and can be set up in 5-10 minutes. This RapidSealer TM (Band Sealer) has a right to left configuration and the bag is fed from the right side of the unit.
Heavy duty powder coated frame
Digital temperature controller
Stepless speed control
Seals a min. of 45 bags (test production: 3.4" x 4" pouches) per minute.
Emergency stop button for operator safety
Breaker protected
Dry ink coding wheel capable of up to 20 characters at one time (upgradable to 40 characters)
Locking heavy duty stainless steel casters for portability
Adjustable conveyor - 6" vertical and 45º tilt
Seal Speed: 512"/minute (13m/minute)
Adjustable Seal Width: 0.125" - 0.625"
Temperature Range: 32º F - 575º F / 0º C - 300º C
Voltage/Hz: 110V/60Hz (220V is also available)
Power: 500W / 4.55A
Maximum Load on Conveyor: 15 lbs. / 7.5 kg
Weight: 350 lbs.
Footprint: 44" x 24" x 41"
WARNING: Spare Parts & Accessories are now SOLD SEPARATELY!
In order to reduce the base price of our RapidSealers, we no longer supply accessories and spare parts with each unit. This allows our customers to select these add-ons only as needed.
The following are additional accessories which may be added-on:
(10) PTFE bands
(2) Urethane drive belts
(2) Black ink rolls
(1) Embossing pin wheel kit for dry ink containing
(5) dies each of number 0 to 9 and (3) dies each of the letters "M", "F", "D", and "E", "X", "P" (2) Urethane belts 19"
(1) Sensor
(1) Silicon Wheel
(1) Letter Holder
(1) Temperature Controller
(1) Main Control
(4) Clutch Belts
(1) Heating Element
Spare Parts Kit is HIGHLY RECOMMENDED.
Video shows stainless steel version which may be found here.
Spare Parts Kit For RSH2225 Sealers
11CXSPPRTKT
INCLUDED ITEMS:
- (10) 22.25" PTFE Fluoropolymer Bands
- (2) 13.5" Urethane Drive Belts
- (1) Temperature Control Printed Circuit Board
- (1) Dry Ink Printer Heating Element
- (4) Clutch Belts
Consumables:
- 11CXMTR: Motor for RH2225 Sealers
- 11CXSLCNWHL: Silicone Wheel for RS2225 Sealers
- 11CXCRGDKNB: Corrugated Knob for RS2225 Sealers
- 11CXSWTH2P: 2 Pack of Switches for RS2225 Sealers
- 11CXIKWHLDR: 2 Pack of Ink Wheel Holders for RS2225 Sealers
- 11CXSLCNCR: Core of Silicone Wheel for RS2225 Sealers
- 11CXBRSHKT: Brush Kit for RS2225 Sealers
- 11CXFDNGDE: Feeding Guide for RS2225 Sealers
- 11CXURTBLT: 13.5" Urethane Belt for RS2225 Sealers
- 11CXMBSNRLST: Embossing Roller Seat for RS2225 Sealers
- 11CXMECHS: Mechanical Sensor for RS2225 Sealers
- 11CXPNWHKT: Pin Wheel Kit for RS2225 Sealers
- 11CXPWRLN: Power Line for RS2225 Sealers
- 11CXIKRHTNLMN: Ink Roller Heating Element
- 11CXINKWHBLK: Ink Wheel Black for RS2225 Sealers
- 11CXLWPNHRLR: Lower Pinch Roller for RS2225 Sealers
- 11CXSMPLBGKT: Small Pulley Kit for RS2225 Sealers
- 11CXUPCLBLKSF: Upper Cooling Block Shaft for RS2225 Sealers
- 11CXUPPNHRLR: Upper Pinch Roller for RS2225 Sealers
- 11CXCTBLT4P: Pack of 4 Clutch Belts for RS2225 Sealers
- 11CXDRVWHST: Drive Wheel Seat for RS2225 Sealers
- 11CXHTNLMNT: Heating Element for RS2225 Sealers
- 11CXIKWHTNBL: Ink Wheel Heating Block for RS2225 Sealers
- 11CXDRVNWHL: Driven Wheel for RS2225 Sealers
- 11CXINKWHRD: Ink Wheel Red for RS2225 Sealers
- 11CXUPHTBLSF: Upper Heating Block Shaft for RS2225 Sealers
- 11CXPWRBRKR: Power Breaker for RS2225 Sealers
- 11CXTLKT: Tool Kit for RS2225 Sealers
- 11CXLTTRKT: Letter Kit for RS2225 Sealers
- 11CXBKRCVRBLT: Back Roller of Conveyor Belt for RS2225 Sealers
- 11CXURTNBLT2P: Pack of (2) 13.5" Urethane Belts for RS2225 Sealers
- 11CXURTNBLT: Pack of 2 13.5" Urethane Belts for RS2225 Sealers
- 11CXCVRBLT: Conveyor Belt for RS2225 Sealers
- 11CXPNTRSNR: Printer Sensor for RS2225 Sealers
- 11CXNMBRKT: Number Kit for RS2225 Sealers
- 11CXFTRCVRBLT: Front Roller of Conveyor Belt for RS2225 Sealers
- 11CXLWCLNBLK: Lower Cooling Block for RS2225 Sealers
- 11CXUPCLNBLK: Upper Cooling Block for RS2225 Sealers
- 11CXLWHTNBLK: Lower Heating Block for RS2225 Sealers
- 11CXUPHTNBLK: Upper Heating Block for RS2225 Sealers
- 11CXTFNBD2225-10P: 10 pack of 22.25" Teflon Bands for RS2225 Sealers
- 11CXAXLFNCT: Axial Fan with Wind Catcher for RS2225 Sealers
- 11CXHTNBLK2P: Pack of 2 Heating Blocks for RS2225 Sealers
- 11CXURTBLT10P: Pack of 10 Urethane Belts for RS2225 Sealers
- 11CXRTLFGRBX: Right to Left Gearbox for RSH2225 Sealers
- 11CXDTMPCNTLW: Digital Temperature Control for RS2225 Sealers
- 11CXLCTMCTAS: Electromagnetic Clutch Assembly for RS2225 Sealers
