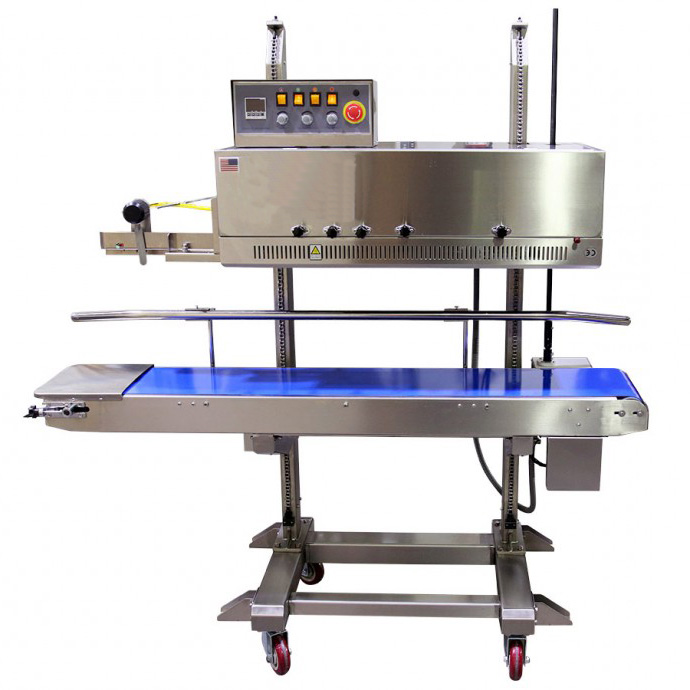

VakRapid®GF Large Stainless Steel Vertical Band Sealer w. Dry Ink Printer - Gas Flush - Left to Right

VakRapidGF Large Stainless Steel Vertical Band Sealer w. Dry Ink Printer - Vacuum/Gas Flush

Total Price:
$7,398.40

Part Number: RSV2225SSDCLR-GF

Available Options

Spare Parts: Spare Parts Kit | 11CXSPPRTKT (+$235.60)

Nitrogen Generator Option:

Learn more about Nitrogen Generator and Sterile Air Kit

Description Videos Parts Info

We Modify Band Sealers to Fit Your Specific Need

Gas flush system designed and assembled in California.

HIGH SPEED, HIGH QUALITY GAS FLUSH SEALING FOR FRESHNESS

This unit requires a regulated supply of inert gas at 20 PSI minimum AND a clean, dry compressed air source capable of providing 80 PSI minimum.

As a natural addition to our highly successful VakRapid series of continuous band sealers, the IMPAK VakRapidGF continuous band vacuum and gas flush sealers set the standard for high speed bagging of food, medical, pharmaceutical and electronics applications that require optimum freshness and shelf life. The VakRapid Series provides high quality, hermetic seals on all moisture-barrier bag materials. The nitrogen gas flush system can remove up to 99% of oxygen, depending on the application, and creates a low moisture package. It is an ideal solution for food, medical, pharmaceutical, electronics and other products that need added protection against decomposition. The gas flush system also can be used to create a cushion like buffer to protect contents from damage. The VakRapidGF is economical when compared to other sealers that offer nitrogen gas flushing for air removal. Comes with a dry ink printing system and a small kit of the most common letters and numbers. Additional accessories available.

This vertical unit is designed to be used almost right out of the box, and can be set up in 5-10 minutes. This RapidSealer^TM (Band Sealer) has a left to right configuration.

Heavy duty stainless steel frame
Digital temperature controller
Stepless speed control
Emergency stop button for operator safety
Breaker protected
Dry ink coding wheel capable of up to 20 characters at one time (upgradable to 40 characters)
Includes Letters M,F,D,E,X, and P (x3) and Numbers 0-9 (x5)
Locking heavy duty casters for portability
Adjustable height: 6" minimum bag height up 29.5"
Seal Speed: 512"/minute - 13m/minute
Adjustable Seal Width: 0.125" - 0.625"
Temperature Range: 32º F - 575º F / 0º C - 300º C
Voltage/Hz: 110V/60Hz (220V/50Hz is also available)
Power: 500W / 4.55A
Maximum Load on Conveyor: 30 lbs. / 15 kg
Weight: 350 lbs.
Footprint: 44" x 24" x 61"

WARNING: Spare Parts & Accessories are now SOLD SEPARATELY!

In order to reduce the base price of our RapidSealers, we no longer supply accessories and spare parts with each unit. This allows our customers to select these add-ons only as needed.

The following are additional accessories which may be added-on:

(10) PTFE bands
(2) Urethane drive belts
(2) Black ink rolls
(1) Sensor
(1) Silicon Wheel
(1) Letter Holder
(1) Temperature Controller
(1) Main Control
(4) Clutch Belts
(1) Heating Element

Spare Parts Kit is HIGHLY RECOMMENDED.

Watch on YouTube: "Vertical Band Sealer with Printer"

Spare Parts Kit For RSV2225SSDC Sealers

11CXSPPRTKT

INCLUDED ITEMS:

(10) PTFE Bands
(2) Urethane Drive Belt 13.5"
(1) Temperature Controller
(1) Heating Element
(2) Large Clutch Belts
(2) Small Clutch Belts
(2) Urethane Belt 19"
(1) Main Control Board

Purchase here

Consumables:
