About:

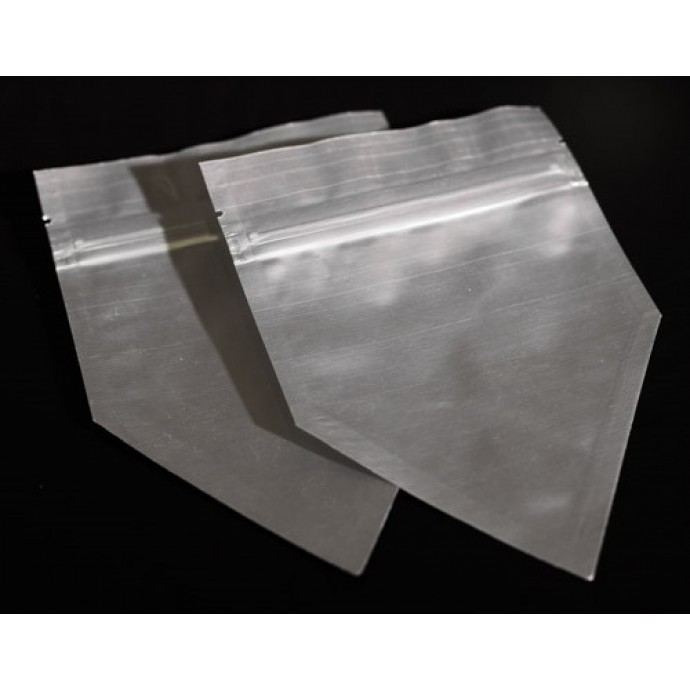

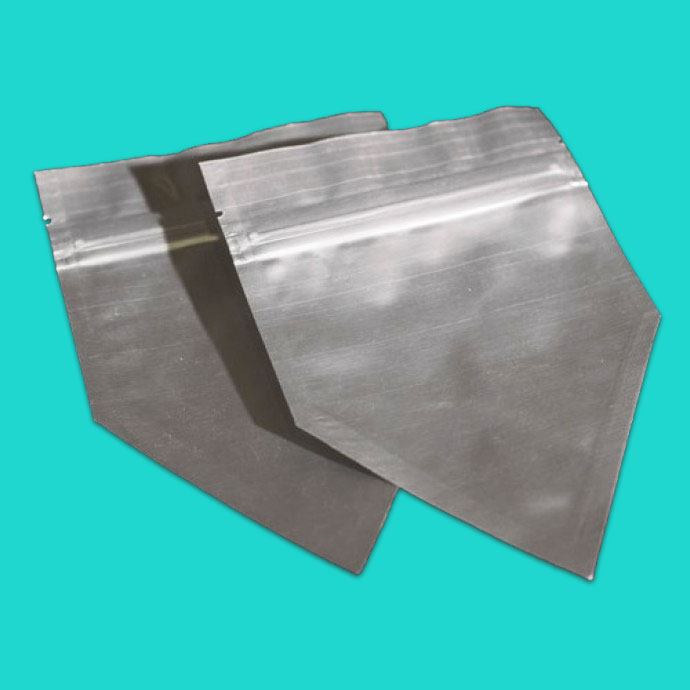

Pentagonal Baseball Home Plate Shaped Silver Pouch
Size: 4.0" wide at the open end by 5.5" from flat end to point
Quantity:
1,000 bags/case
Fill Format:
Fill through zipper end. Sealer optional.
Material: PAKVF4D, 4.5 mil
Purchase Above, or go back to Uniquely Shaped Bags
Need to test your pouch before you purchase? Samples available by request.
PAKVF4D Spec Sheet
This lamination of film foil and polyethylene has a wide range of uses where a high barrier film is needed with a low WVTR (water vapor transmission rate.) It is ideal for packaging of hygroscopic items and products susceptible to corrosion, and in food or medical device packaging, where very low oxygen levels are required.
PAKVF4D is identical to PAKVF4 in construction; the foil is laminated "face down" to expose the dull side which is preferred in some applications.
PHYSICAL PROPERTIES (48GaPET/ PE / .00035 FOIL / LLDPE)
| Total Thickness (mils) | 4.5 mil |
| WATERVAPOR TRANSMISSION RATE (FED 101) (routinely measured at .0003 -we certify to .005 maximum) |
< 0.005 gr./100in.2 24 hrs. (.0003 measured) |
O2 TRANSMISSION RATE (MOCON) |
0.001/cc/m2 /24 hrs. (0.0006 measured) |
| TENSILE STRENGTH (ASTM D882-83, A) | 22 lb./in. |
| BREAKING STRENGTH (GRAB - FED 191) | 58 lb. |
| MULLEN BURSTING STRENGTH (TAPPI T403) | 57 lb./in2 |
| PUNCTURE STRENGTH (FTMS 101) | 15.2 LB. |
| RECOMMENDED HEAT SEAL CONDITIONS | 400 °F/40 PSI/1 sec. |
| Foil Thickness | .00035 MINIMUM |
IMPAK CORPORATION makes no warranty, expressed or implied, as to the suitability of these materials for any specific use. The values shown above were developed from random samples taken from production material. We believe them to be typical for the product. Actual values may vary somewhat from those depicted here. Customers should determine product suitability based upon their own internal criteria.
