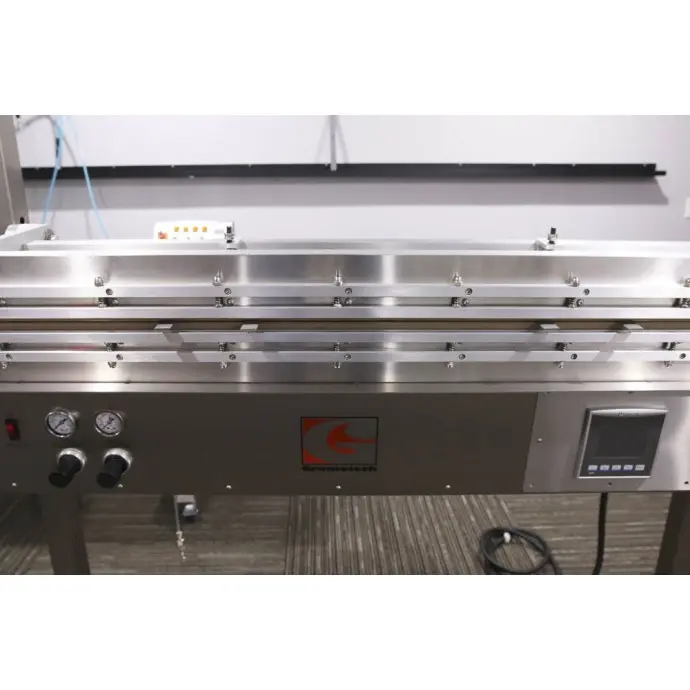

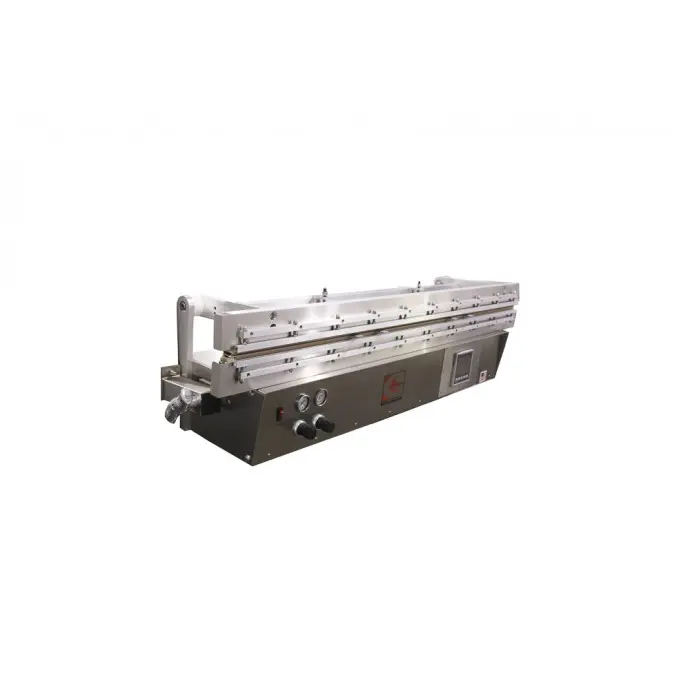

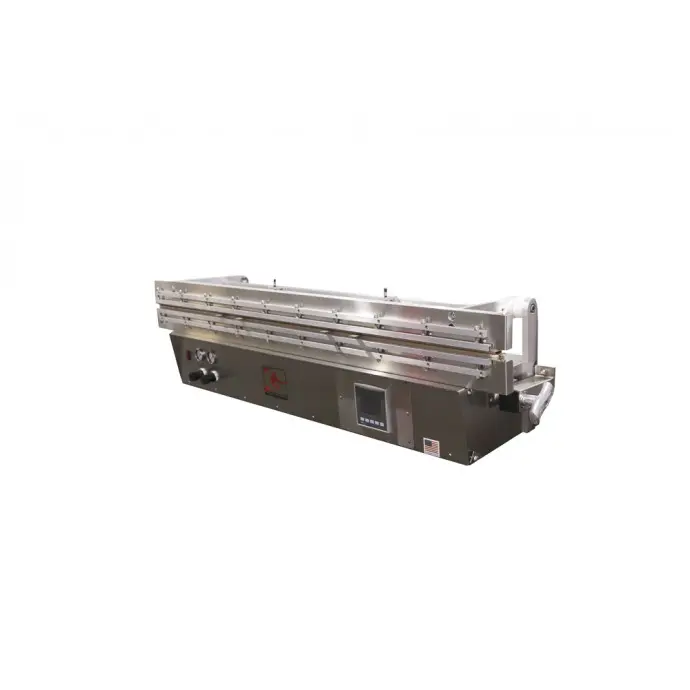

This tabletop vacuum sealer is made from high-grade 304 stainless steel and an aniodized aluminum frame. It's perfect for medium to high production use and comes with dual 0.25" heating elements, Unitronics color touch screen, single-ported exhaust, Venturi vacuum pump, and dual retractable nozzles as standard features.

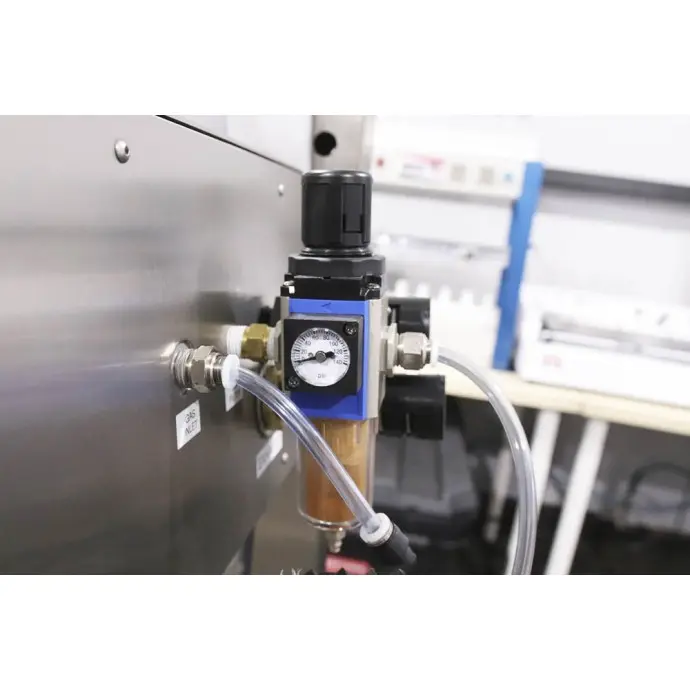

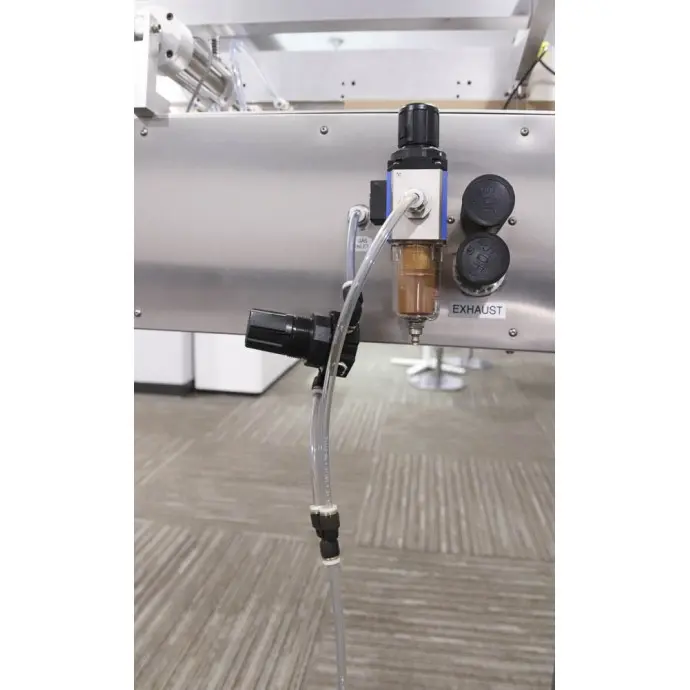

Note: This unit requires a separate compressed air source capable of providing 80 PSI of clean, dry air.
Features:

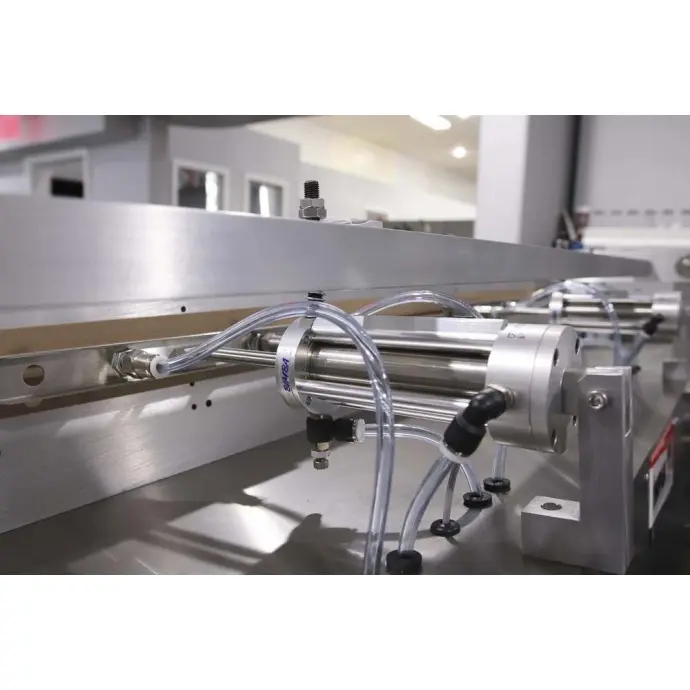

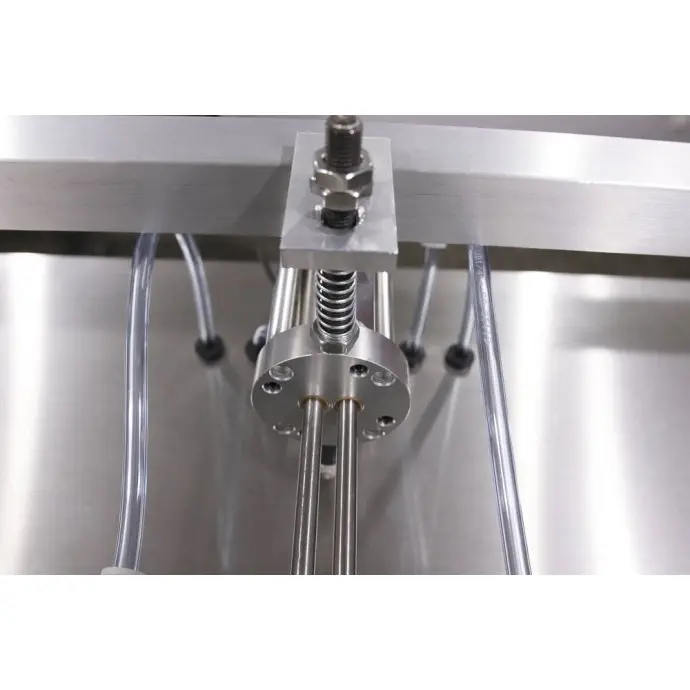

Dual Retractable Nozzles with High-Vacuum Flow Rate

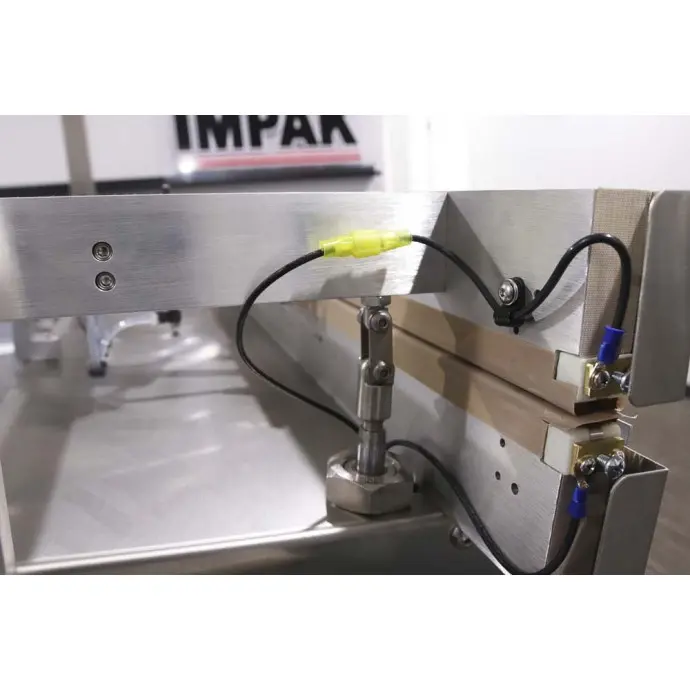

Upper and Lower 0.25" Heating Elements
Unitronics V350 Color Touch Screen with 30 recipe memory
Up to 9-stage gas flush
Venturi Vacuum Pump
Pneumatic Safety-System: Prevents accidental operator injury by use of a back-pressure sensitive micro switch to prevent jaws from locking down in the event an unwanted object (i.e hand or finger) is present in the seal area.
High-Grade Stainless Steel Body, Heavy Duty Anodized Aluminum Frame
Illuminated on/off switch
Emergency stop button on machine face

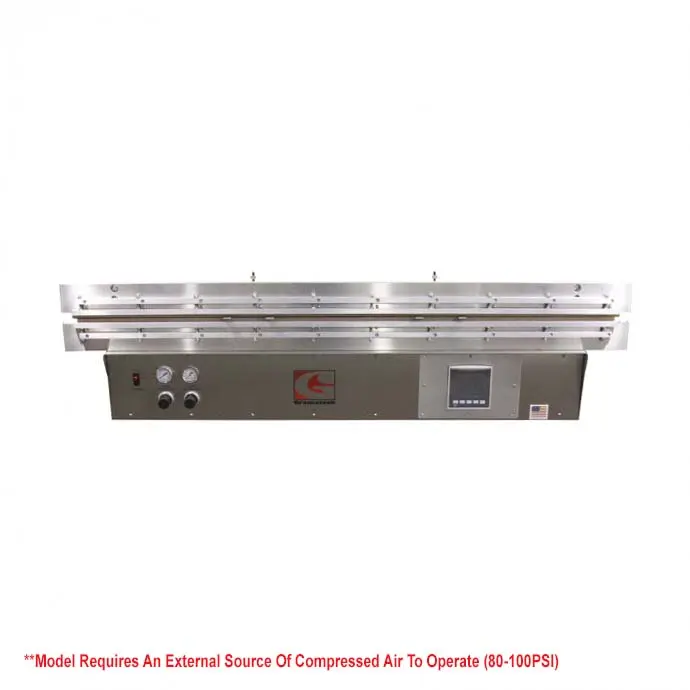

Requires External Air Supply (80 PSI clean, dry air)
Specification:
Model Number: GXVS-51TS
Max. Seal Length: 51"
Standard Seal Width: 0.25"
Electrical: 220 VAC
Vacuum Pressure: 25" Hg
CSA Certification Announcement
IMPAK is proud to partner with a major Multi-National Pharmaceutical Company and to have been granted a CSA Certification for its industry leading line of Gramatech Vacuum Heat Sealers. “We are now ready to offer CSA registration as an option to our industry leading line of Gramatech Sealers,” according to Rajib Hasan, Managing Director, Machine Group.
As the company General Manager has said, “We are very proud of the machinery we have built to CSA standards.” The story below written by Alan Masnek, our resident Certified Packaging Professional (CPPL) and graduate of University of Wisconsin – Stout, illustrates the steps that were taken to design, develop and produce a piece of equipment for pharma MNC. This particular MNC is just one of the many top medical manufacturing firms we are proud to have produced product for. [see full article.]
| Model | GXVS-51TS |
| Body | Stainless Steel |
| Sealing Length | 51" |
| Sealing Width | 0.25" |
| Clean Room Compatible | Yes |
| Air-Flow Rate | 5 cfm/min |
| Controller | Digital - Unitronics |
| Adjustable Time | Yes |
| Programmable | Yes |
| Saves Recipes | Yes |
| Optional Dual Element | Standard |
| Power | 220V |
| Manual Vacuum Mode | Yes |
| Weight | 221 lb. |

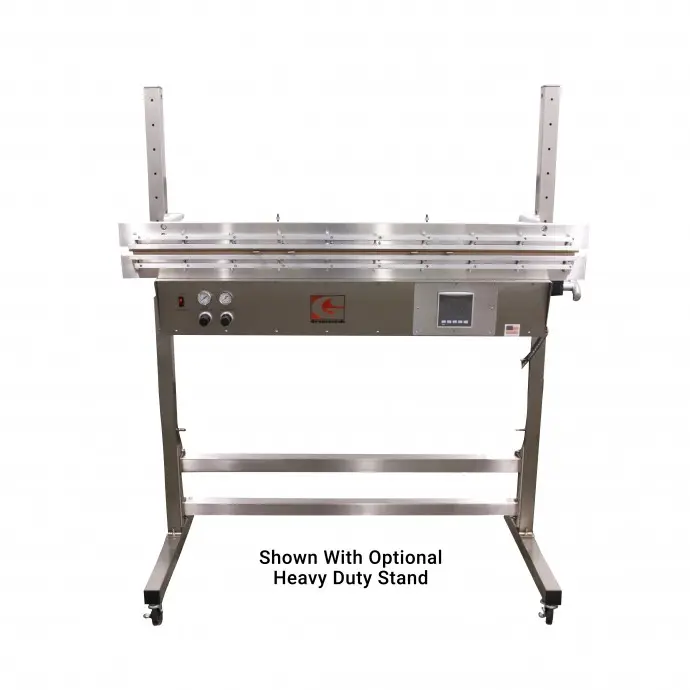

Stainless Steel Stand
All Stainless Steel means easy to clean, durable and able to perform year after year in almost any packaging environment.
User can adjust stand height from 42”, 45”, and 48” to accommodate user’s needs.
Clean Room Ready
Machine taken into Class 100 clean room where all surfaces are wiped down with an 80/20 mix of sterile water/isopropyl alcohol then double bagged and sealed in virgin poly bags.
3rd Party Certification
3rd Party Certification is provided independent company who calibrates the unit for time, temperature, and pressure. Upon completion a certification label with date is applied to the unit and PM/re-certification is generally done yearly.
0.375" Seal Width Upgrade
This upgrade changes out the standard 0.25" elements up to a full 0.375" each for a wider and more visual seal.

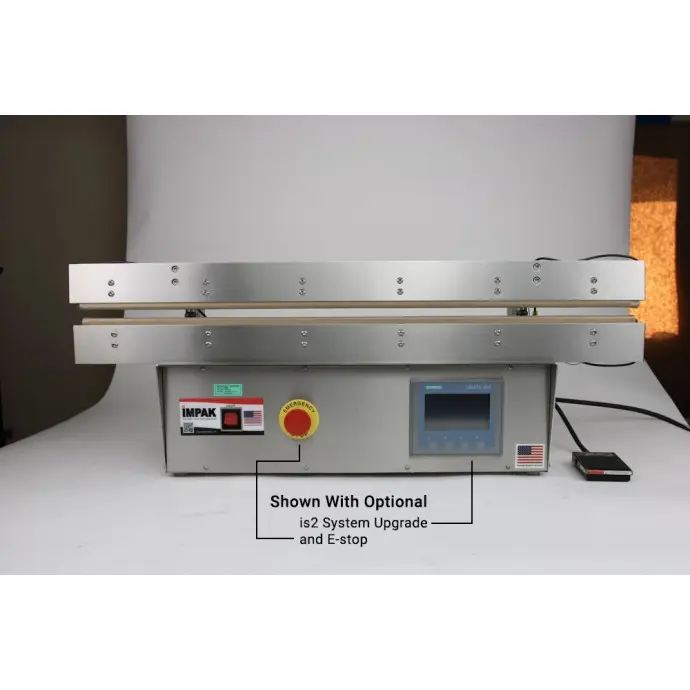

iS2 System Upgrade
The iS2 (Intelligent Sealing System) is a control system for heat sealing equipment that offers pin-point digital control over time, temperature, and pressure, via touch screen interface.
The system is more than a digital control upgrade, it combines an advanced Siemens PLC and HMI with proprietary pneumatic and electrical components, to deliver temperature control within one degree, accurate sealing time with readings every millisecond. Additional conveniences such as recipe storage, operator locks, and graphs of time/temperature put iS2 enabled sealers in a class of their own. Validation ports allow the user to confirm all parameters from a 3rd party calibration/certification service and data is available to be sent to a dedicated terminal to track and record all seals made by the unit.
10 CFM
Increases CFM from 7.8 to 10 CFM by installing an additional Venturi to the vacuum nozzle assembly.
Sterile Air
Two Pre-filters with PM indicators which remove contaminants and water from the compressed air line before they reach the nitrogen generator. After leaving the generator the air is pushed through a Post filter which results in a Sterile Nitrogen flow of 99.9999+% efficiency at 0.01 micron. This is essential for food and sensitive applications where purity is critical.
Nitrogen Generator Kit
The Nitrogen generator produces Nitrogen gas (N2) from a standard compressed air line. This model is designed to generate Nitrogen at purities between 95% and 99.5%.
The Nitrogen generator can be used as a replacement for heavy and bulky Nitrogen gas tanks. Its slick and compact design allows users to integrate this with their current gas flush enabled vacuum sealers without having to worry about it taking up too much space. Also, users will not have to worry about a depleting Nitrogen gas source, as our generator produces Nitrogen from a clean compressed air source.
Sterile Air Kit with Nitrogen Generator
Bag Spreader Option
Custom Pack with Trident Nozzle System
Optional Electric Height Adjustment system - contact us for more information.
Medically Validatable 36 Inch Workhorse with Optional Trident System
See an example of an upgraded 61" GXVS unit below. The touch pad interface and new controls offer pinpoint accuracy with readings every millisecond. Speak with our specialists about what a custom machine could do for your production goals.
GVS Auto Cycle - Option Feature Demo
Purge Flush Option - Gramatech WorkHorse Unit
Part Number: GK-GVS51
Spare Parts Kit for 51" Workhorse
Includes:
