Name: VakRapid®VS Stainless Steel Band Sealer - Vacuum - Right to left - RSH1525SSDCRL-VCM
Brand: IMPAK Corporation
SKU: 1009
Price: 3095 USD
Availability: InStock

Total Price:
$3,095.35

Part Number: RSH1525SSDCRL-VCM

Available Options

Options for Band Sealers: Spare Parts Kit | 77XSPPTKT1525 (+$99.40) Full Embossing Kit | SPK-RSH1525 (+$117.00) Stainless-Steel Stand for RSH1525 | 77XSTNCSTR (+$141.95) Vertical Conversion Kit | 77XVRTCLKSS (+$148.15)

Description Videos Specifications Parts Info

We Modify Band Sealers to Fit Your Specific Need

Vacuum system designed and assembled in California.

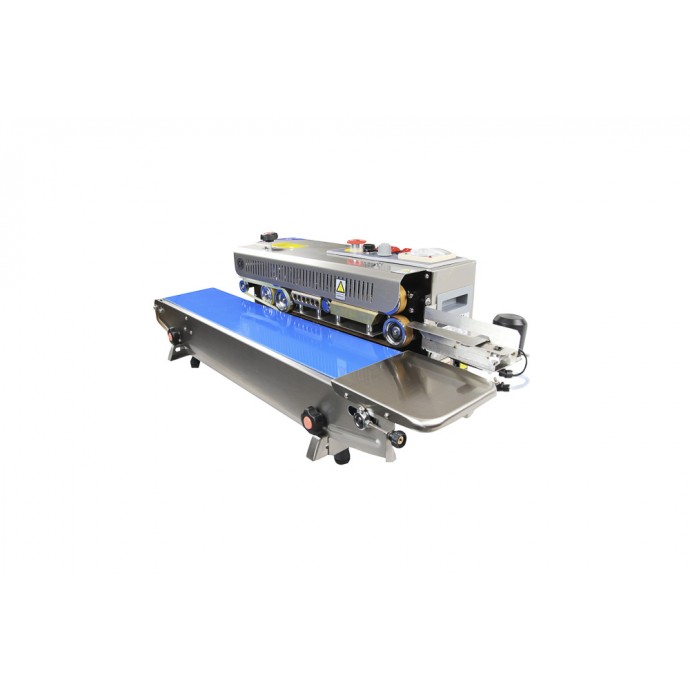

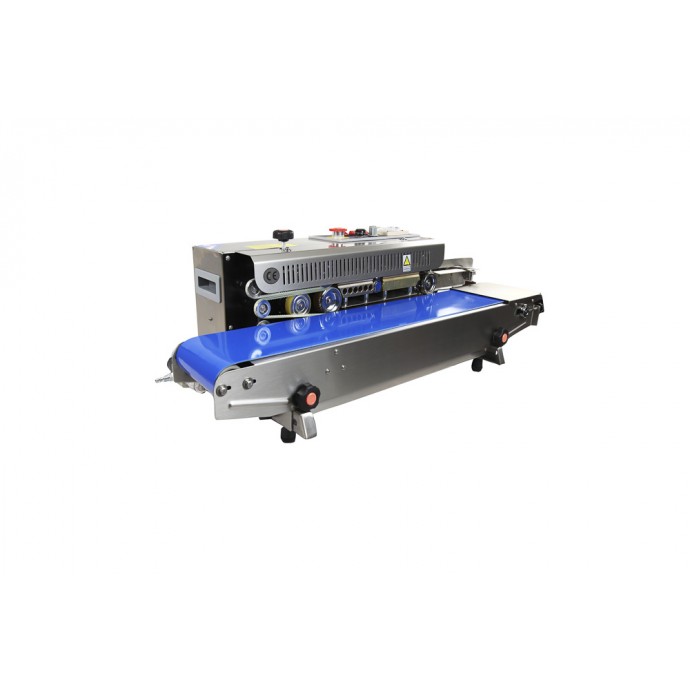

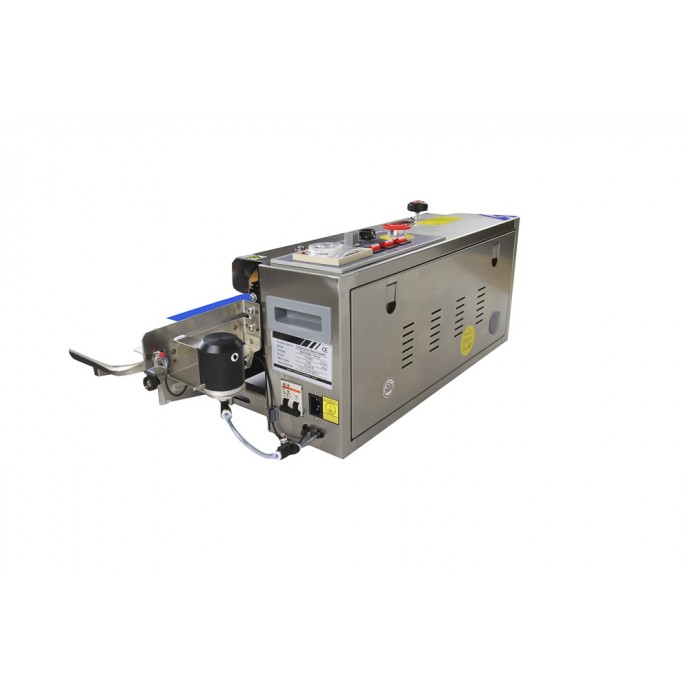

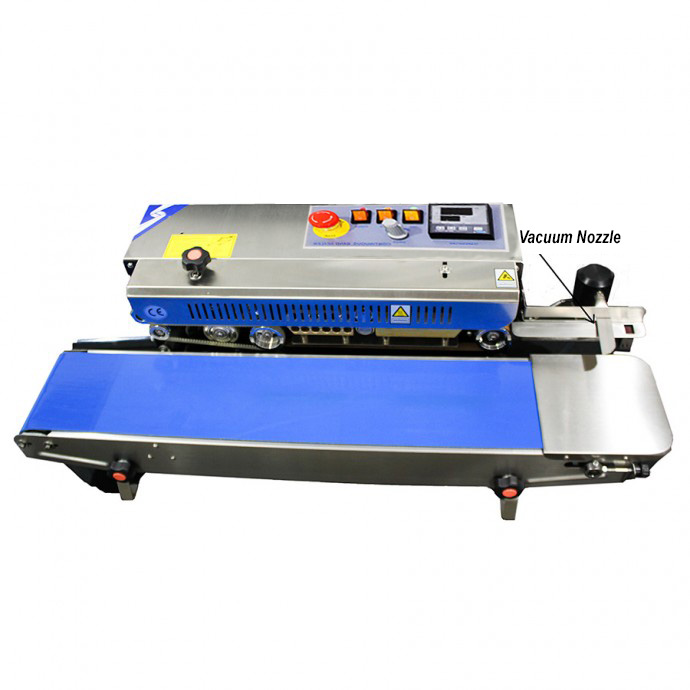

A continuous band sealer equipped with a stainless steel vacuum nozzle to remove oxygen and increase shelf life as well as offer immobilization for sensitive products.

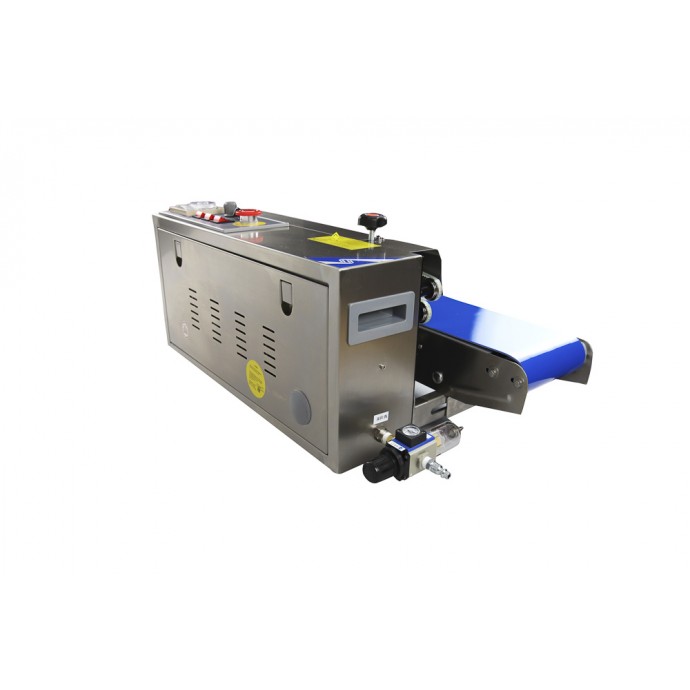

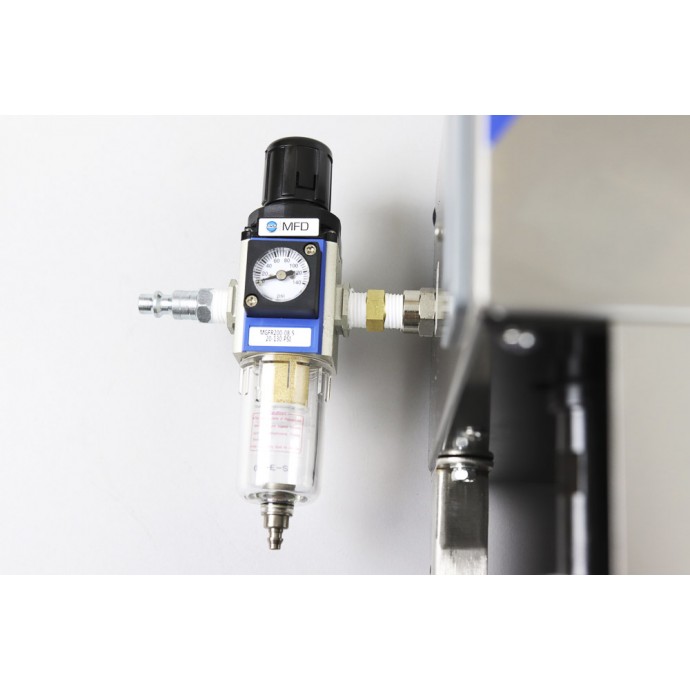

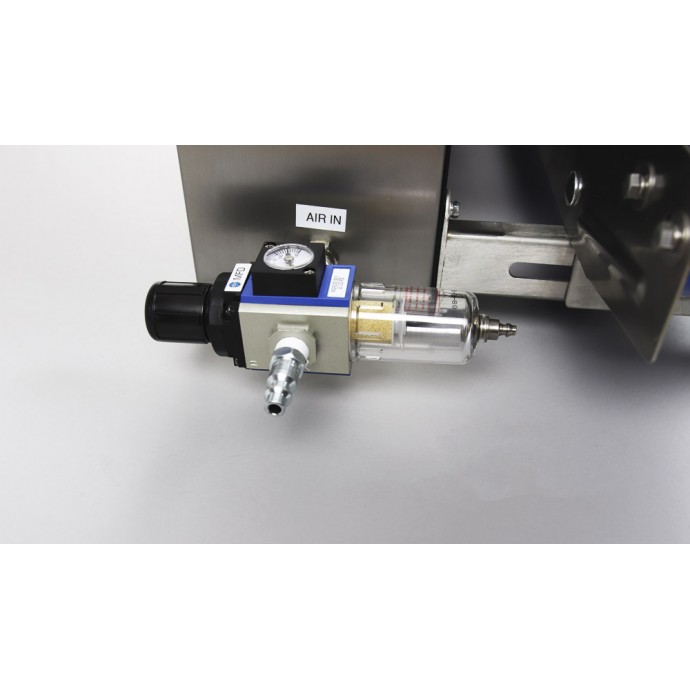

This unit requires a compressed air source capable of providing 80 PSI.

This conveyor style heat sealer is ideal for use with products which benefit from minimal oxygen levels but are delicate and cannot be packaged as a pillow-pack.

To operate, the nozzle is inserted into the bag and a bag sensor activates the vacuum. The bag sucks down as it is passed toward the heating elements. When the edge of the bag meets the nozzle the nozzle pivots out of the way and the bag continues through the heating and cooling blocks where it exits at the other side of the machine.

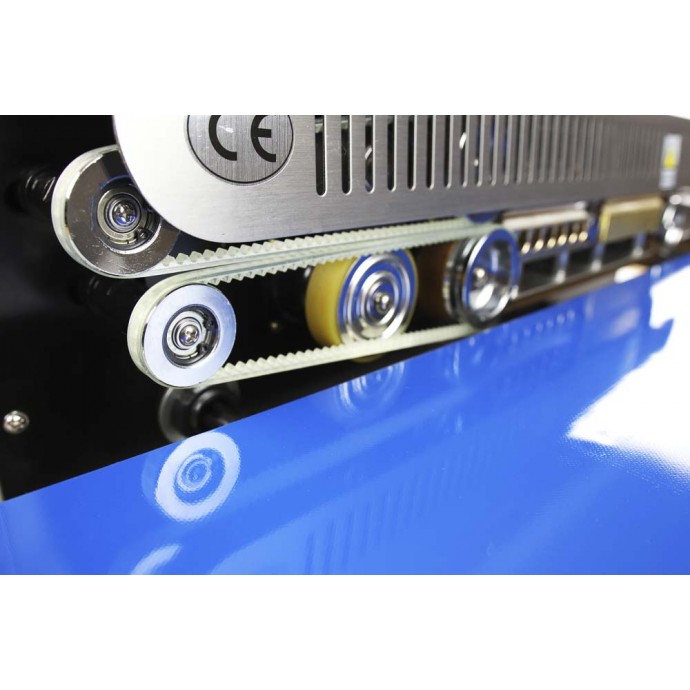

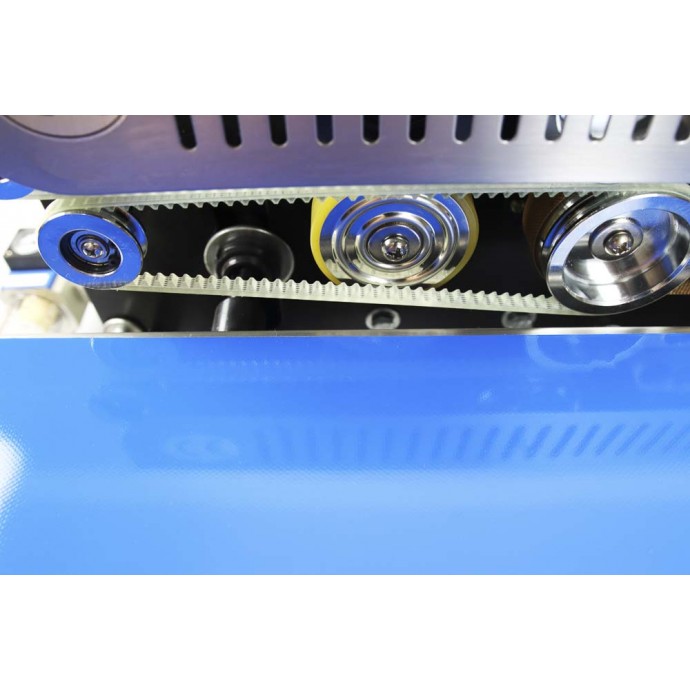

The base unit for this machine is our tried and tested RHS1525SS which has a reputation as a workhorse and is known for its easy operation. Consumable parts such as Teflon bands and Urethane drive belts are readily available from IMPAK and easy to install. The RapidSealer line is an ideal solution for increased production speed with a reliable, simple machine. The addition of a vacuum function expands its benefits and adds extra protection against the corrosive effects of oxygen.

IMPORTANT RECOMMENDATION: Send Us Your Bag Samples

Dear Customer: Due to the unique nature and layout of our gas flush and vacuum band sealers combined with the multitude of pouches available we kindly ask that you send in the pouch(es) and physical product(s) you intend to use in the unit prior to or upon purchase. Our skilled technicians will run the pouch through an identical unit and provide any feedback, suggestions or possible issues that may be encountered, such as zipper placement or fill volume. IMPAK is committed to helping our customers make sound purchasing choices, and in most cases we offer this testing free of charge. Please take advantage of the opportunity to gain valuable feedback about your packaging process.

Demo of VakRapid 2.5 Horizontal Vacuum Band Sealer

Watch on YouTube: "VakRapid 2.5 Horizontal Vacuum Band Sealer"

Sealing Speed	0 - 12m/min.; 0 - 320"/min.
Sealing Width	6 - 12mm; min: 1/8" - max: 5/8"
Temperature Range	0 - 300 Co; 32 - 572 Fo

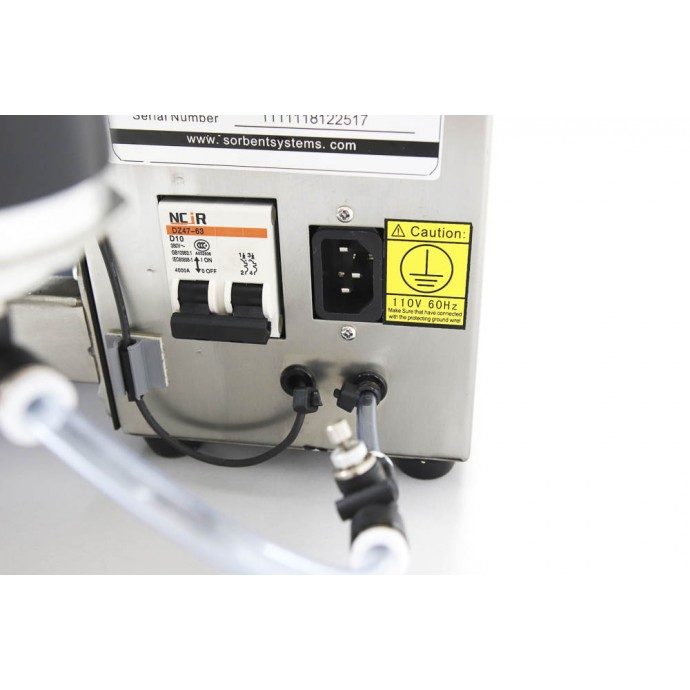

Voltage / Hz.	110V / 60Hz
Power	500W / 4.55 Amps
Max. Load / Pkg. on Conveyor	2.5 kg / 5.5 lbs
Machine size	32" x 15.75" x 11" 800 x 400 x 320 (mm)

Spare Parts Kit for RSH1525 Sealer

77XSPPTKT1525

INCLUDED ITEMS:
   ° (2x) Urethane Drive Belts
   ° (10x) ^*PTFE Flouropolymer Bands
   ° (1x) Speed Control Printed Circuit Board

Purchase here

Full Embossing Kit for RS1525 Series:

SPK-RSH1525

INCLUDED ITEMS:

  (1x) Convex Embossing Wheel
  (3x) each M, F, D, E, X, P
  (6x) each 0-8
  (5x) each 9
  (3x) Blank
  (6x) Period

Purchase Here

PTFE Fluoropolymer is the generic name for the term Teflon®

PTFE Fluoropolymer, or Polytetrafluoroethylene, known for its strength and durability, was discovered in 1938 by Roy Plunkett, a chemist at Kinetic Chemicals. This substance has been widely used in the manufacture of bullet proof vests, munitions, wire and equipment coating at NASA, non-stick cookery, and many other applications.

Benefits of PTFE Fluoropolymer:

NON-STICK / SELF CLEANING
LOW FRICTION / SELF-LUBRICATING
CHEMICAL INERTNESS
INSENSITIVE TO UV
NON-TOXIC
DIELECTRIC PROPERTIES
WEATHER RESISTANCE / NON-AGEING
BROAD TEMPERATURE RANGE (- 200 °C / up to + 260 °C)
NON-FLAMMABLE

Teflon® is the registered trademark of the E. I. DuPont Corporation for its PTFE Fluoropolymer product line. The use of this term is restricted solely to companies selling E. I. DuPont Corporation's products. IMPAK Corporation makes no claim and cannot guarantee this material is made with E. I. DuPont Corporation products.
